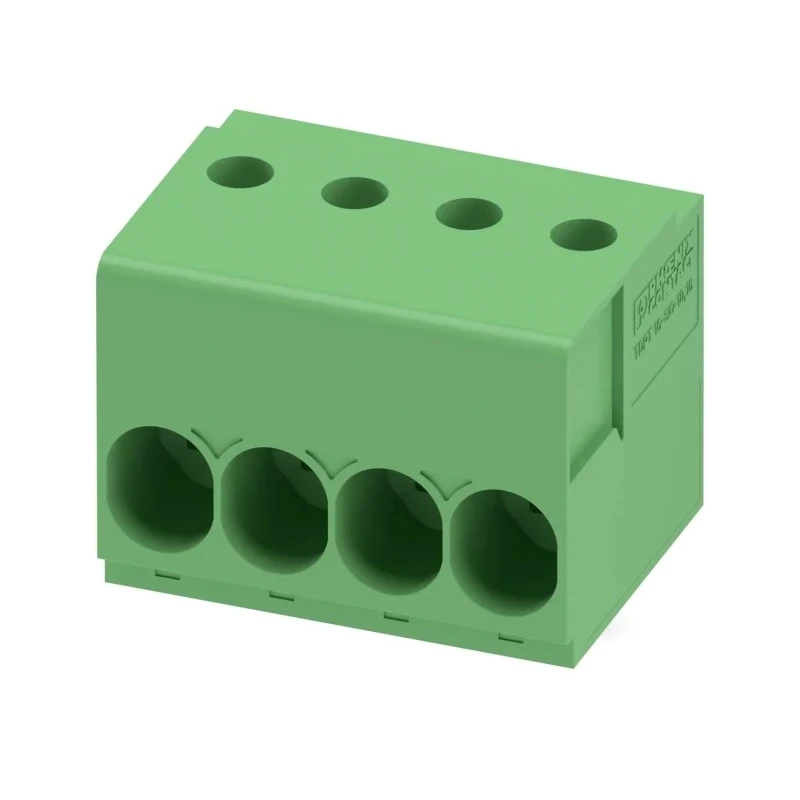

Phoenix Contact PCB Terminal Block 4-Contact 10.16 mm Pitch Wave Soldering Mount 1 Row 1017528
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 76A |
| Length | 31.9mm |
| Model | 1017528 |
| Depth | 31.2mm |
| Width | 41.66mm |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | TDPT 16/ 4-SC-10.16-ZB |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 4 |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 16mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 6AWG |
| Wire Connection Method | Screw |
| PCB Terminal block, nominal current | 76 A, nom. voltage: 1000 V, pitch: 10.16 mm, number of positions: 4, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- Nominal current rating of 76 A ensures high electrical load capacity.
- Supports wire sizes from 0.75 mm² up to 16 mm² providing versatile connectivity.
- Constructed with durable polyamide housing for electrical insulation and mechanical stability.
- Screw connection method with tension sleeve allows secure and low-resistance connections.
- Designed for straight orientation and single row layout to simplify PCB assembly.
- Rated for nominal voltage of 1 kV suitable for industrial electronic applications.
- Compact dimensions of 31.9 mm length, 41.66 mm width, and 31.2 mm depth optimize PCB space usage.
- Compliant with WEEE and RoHS standards ensuring environmental safety and quality assurance.
Product Description
Phoenix Contact 1017528 PCB Terminal Block features 4 contacts spaced at a standard pitch of 10.16 mm and is designed for wave soldering mount on single-row PCB assemblies. It enables reliable electrical connections with a nominal current handling capacity of 76 amperes and nominal voltage rating of 1000 volts.
The terminal block uses a screw connection with tension sleeve to secure stranded or solid wires ranging from 18 AWG (0.75 mm²) up to 6 AWG (16 mm²). Its polyamide housing provides excellent electrical insulation and robust mechanical protection for the conductor connection points.
With a compact footprint (31.9 mm length, 41.66 mm width, and 31.2 mm depth), the terminal block supports straight orientation for easy integration in various PCB layouts. The green color coding helps in identification during assembly processes.
This product is compliant with WEEE and RoHS environmental directives, facilitating eco-friendly manufacturing and disposal practices. It is manufactured in China under the certified Phoenix Contact TDPT 16/ 4-SC-10.16-ZB series.
Nominal current: 76 A. Nominal voltage: 1 kV. Pitch: 10.16 mm. Connection method: Screw with tension sleeve. Mounting type: Wave soldering. Wire cross-section range: 0.75 mm² to 16 mm². Number of rows: 1. Color: Green. Standards compliance: WEEE, RoHS.
Ideal for industrial electronic component applications including power connectors on control boards, signal conditioning equipment, and other automated systems. Suitable for use in electronics manufacturing, laboratory setups, HVAC control panels, and other commercial electrical assemblies.
Explore more Phoenix Contact and power connector products on EnvMart for comprehensive industrial electrical solutions.
Explore more products in our PCB Terminal Blocks category.
