Murata Ferrite Bead 1.25 mm Surface Mount 0805 Chip Ferrite Bead 2250 Ω Impedance at 100 MHz BLM21BD222SN1L

Murata BLM21BD222SN1L ferrite bead is a surface mount 0805 chip ferrite bead designed specifically for EMI suppression in high-speed signal lines and unstable ground line circuits.

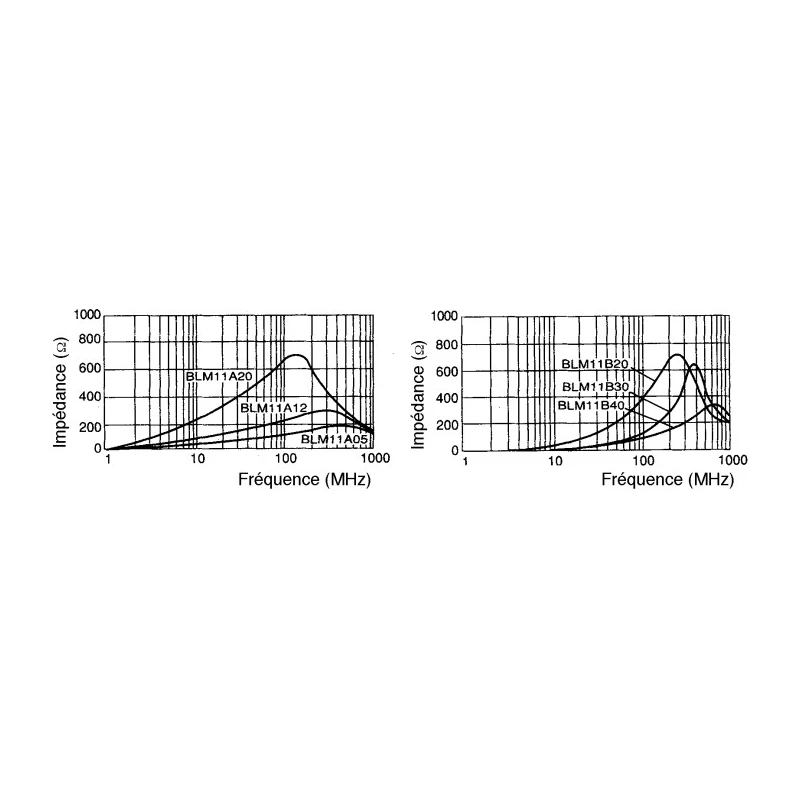

This component provides an impedance of 2250 Ω at 100 MHz and supports a current rating of 200 mA. It operates reliably over a wide temperature range from -55°C to 125°C, suitable for demanding industrial and electronic applications.

The bead’s nickel barrier external electrodes enable excellent solder heat protection during PCB assembly processes, enhancing durability and reliability. Its low maximum DC resistance of 600 mΩ helps minimize power loss, making it efficient even in high current environments.

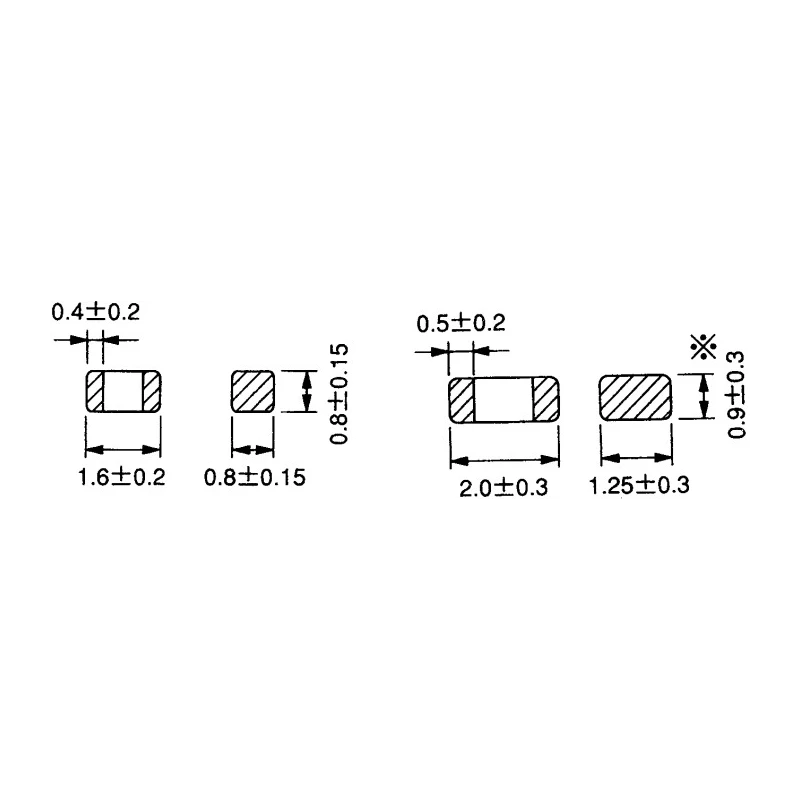

Dimensions are compact with a length of 2 mm, height of 1.25 mm, and depth of 1.25 mm, fitting standard 0805 surface mount footprints. The ferrite material composition is well suited for noise and EMI filtering, contributing to improved electromagnetic compatibility in devices.

BLM_P variants of this series feature low DC resistance, making them ideal for high current circuit applications. This product complies with RoHS and REACH standards, ensuring environmental and user safety compliance.

Common industrial uses include applications in communication equipment, computing devices, automotive electronics, and consumer electronics for EMI noise suppression. The package is supplied on reels ready for efficient pick-and-place assembly, supporting streamlined production workflows.

Package type 0805 suitable for surface mount technology. Impedance of 2250 Ω at 100 MHz for effective EMI suppression. Current rating of 200 mA for reliable operation. Operating temperature range from -55°C to 125°C supports harsh environments.

Low maximum DC resistance of 600 mΩ minimizes power loss. Constructed from ferrite material for noise suppression in high-speed signal lines. Nickel barrier electrodes ensure excellent solder heat protection. BLM_P variant with low DC resistance ideal for high current circuits.

Compact dimensions: length 2 mm, height 1.25 mm, depth 1.25 mm. Explore Murata’s comprehensive range of Ferrite Beads and EMI filters on EnvMart for reliable electronic component solutions.
