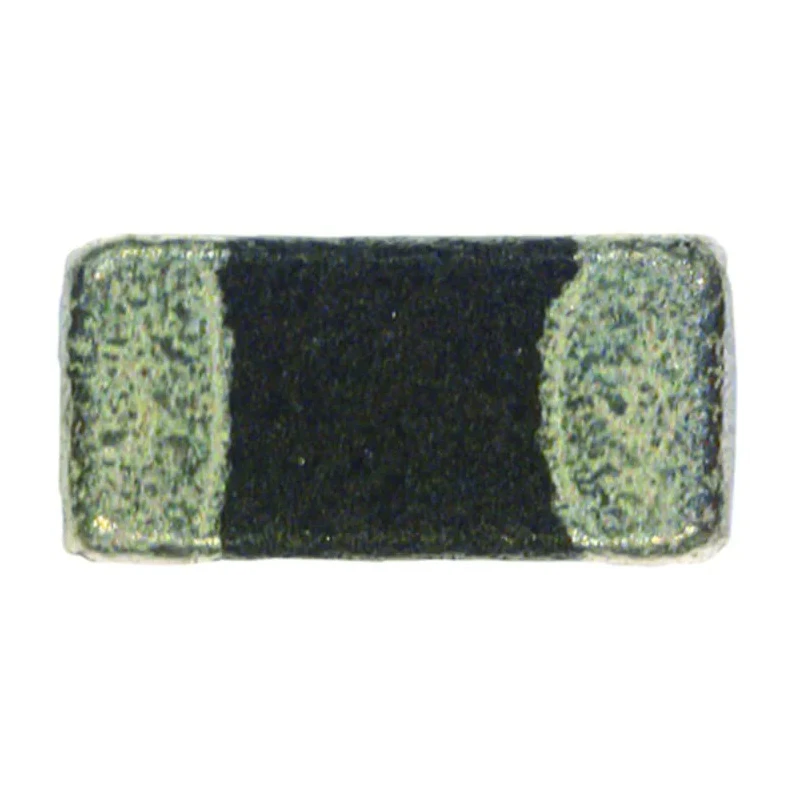

Murata 0.8 mm Solder Mount 0603 Chip Ferrite Bead 470 Ω Impedance at 100 MHz BLM18PG471SN1D

Murata BLM18PG471SN1D is a high-quality 0.8 mm 0603 chip ferrite bead with solder mount designed to provide an effective EMI suppression filter for electronic circuits. It offers an impedance of 470 Ω at 100 MHz, making it highly suitable for reducing electromagnetic interference while maintaining signal integrity in various applications.

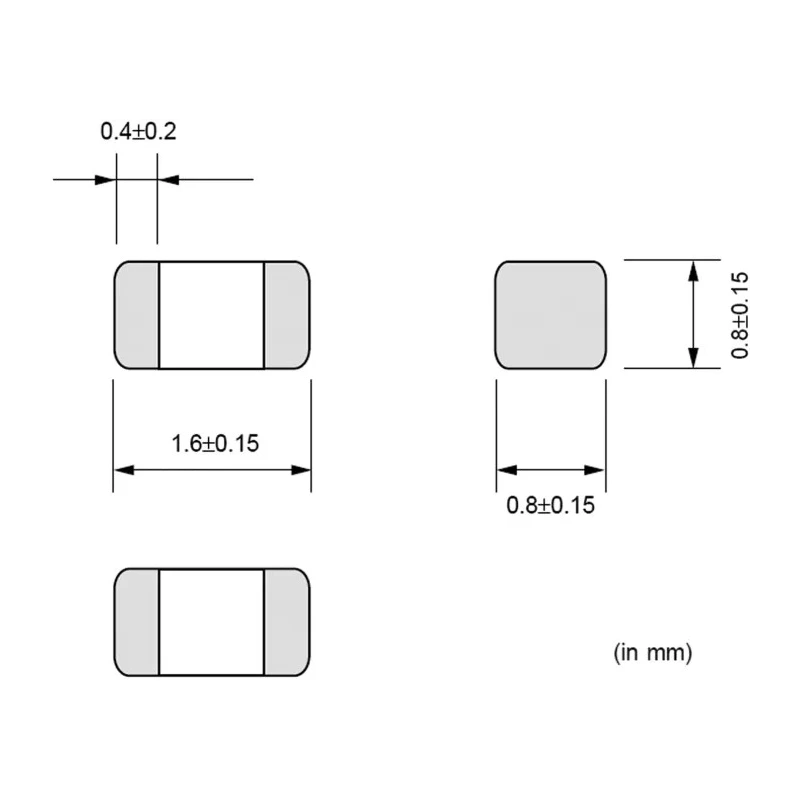

This chip ferrite bead exhibits excellent solder heat resistance owing to its nickel barrier construction of the external electrodes, ensuring reliable performance during manufacturing and in high-temperature environments. Its compact dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth allow easy integration onto densely populated printed circuit boards.

Rated for a current of 1 ampere and operating across a wide temperature range of -55°C to 125°C, this component is suitable for demanding electronics environments including industrial, commercial, and communication equipment. Its low DC resistance of 200 mΩ aids in reducing power loss and heat generation in circuits. The material is ferrite, chosen for its magnetic properties essential for noise attenuation.

The Murata BLM18PG471SN1D ferrite bead is compliant with RoHS environmental standards, ensuring its suitability in eco-friendly and regulatory-controlled production lines. Manufactured in Japan, it delivers consistent high quality and reliability demanded by modern electronic component customers.

Chip ferrite bead designed for surface mount soldering applications. Provides 470 Ω impedance at 100 MHz to effectively reduce EMI noise. Compact 0603 package size with dimensions 1.6 mm length, 0.8 mm height, and 0.8 mm depth.

Rated for 1 ampere current carrying capacity for stable circuit operation. Wide operating temperature range from -55°C to 125°C ensures durability. Low maximum DC resistance of 200 mΩ minimizes power loss. Constructed using ferrite material with nickel barrier electrodes for enhanced heat resistance.

Compliance with RoHS standards ensures environmental safety. Manufactured in Japan with high reliability for industrial and commercial electronic applications.

This Ferrite Bead is ideal for EMI suppression in power supplies, signal lines, and other electronic circuits in industrial, laboratory, HVAC, manufacturing, and commercial applications. Its solder mount design supports automated PCB assembly processes.
