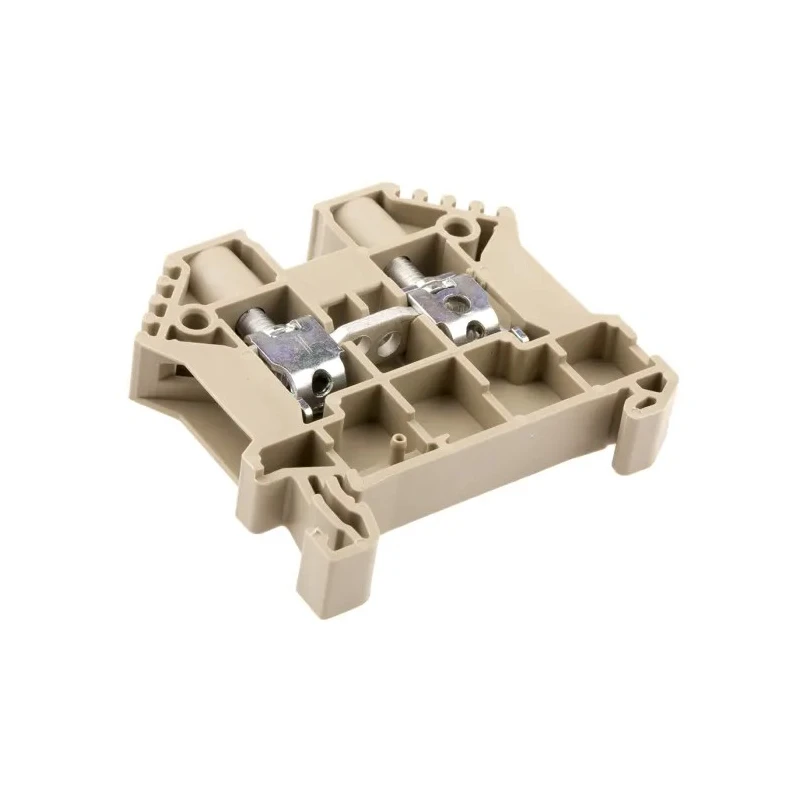

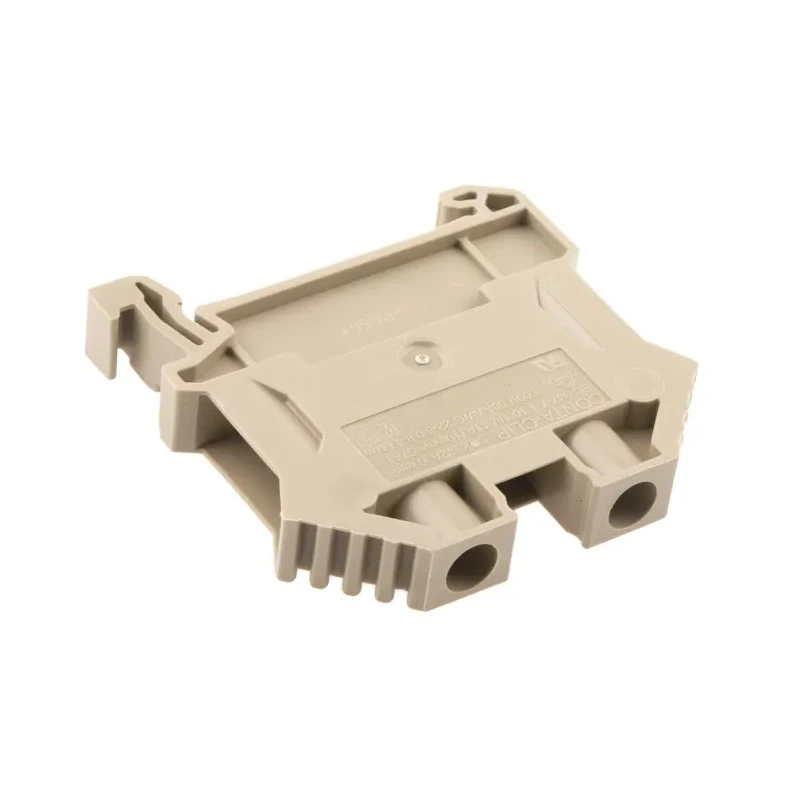

RS PRO SRK Series DIN Rail Terminal Block Beige, 6mm² Cable CSA, 2-Level, Screw Termination, 65A Current 762-2519

RS PRO 762-2519 DIN Rail Terminal Block Beige is a durable and high-performance feed-through terminal block designed for reliable electrical connections on DIN rails. Featuring a 2-level design and screw termination, this terminal block supports a cable CSA of 6mm² and is rated for a maximum current of 65A.

Manufactured from polyamide PA 6.6 with a UL94-V0 rating, it offers excellent resistance to heat and flammability, operating safely in environments from -40°C up to 120°C. The pluggable insulated cross connection system facilitates cost-effective potential distribution and rapid assembly compared to traditional screw cross connections. Its design accommodates adjacent terminals of different sizes to be cross connected and supports daisy chaining of an infinite number of terminals through two cross connection channels.

The recessed screw head design prevents metal parts from slipping during installation, ensuring secure and consistent contact. The terminal block is beige in color, with an 8.1mm pitch, and conforms to key industry standards such as cUL, CSA, IEC 60947-7-1, KEMA-KEUR, and UL. It is free from harmful toxins like halogen and phosphorus, making it safe for industrial use.

Applications of this terminal block span across industrial manufacturing systems, electrical panels, HVAC units, laboratory setups, and water treatment plants where secure and modular electrical connections are required. It allows flexible wiring connections for both solid and flexible wires, compatible with or without wire-end ferrules.

The product is engineered for efficiency with earth terminals that clip onto the DIN rail without screws, speeding installation. The consistent height and depth with wire inlets at the same level simplify wiring and maintenance tasks.

The terminal block supports wire sizes from 22AWG to 8AWG for flexible use. Operating temperature range is -40°C to +120°C. Rated voltage of 1kV and current capacity of 65A. Constructed with polyamide PA 6.6 (UL94-V0) for fire safety.

Pluggable insulated cross connection with 2 channels for easy daisy chaining. Complies with cUL, CSA, IEC 60947-7-1, KEMA-KEUR, and UL standards. Beige color and 8.1mm pitch for system organization. Screw termination with recessed screw head to prevent slipping.

This RS PRO DIN Rail Terminal Block model 762-2519 is a trusted choice for engineers looking for high quality, safe, and efficient DIN rail components. Explore our product selections for DIN Rail Terminal Blocks and related components to complete your electrical assemblies at EnvMart.
