Murata Ferrite Bead 0805 Chip, 600 Ω Impedance at 100 MHz, 200mA, SMD, 2x1.25x0.85mm BLM21BD601SN1D

Free Delivery in India | Lowest Global Shipping Charges

Murata Ferrite Bead 0805 Chip, 600 Ω Impedance at 100 MHz, 200mA, SMD, 2x1.25x0.85mm BLM21BD601SN1D

Name: Murata Ferrite Bead 0805 Chip, 600 Ω Impedance at 100 MHz, 200mA, SMD, 2x1.25x0.85mm BLM21BD601SN1D
Brand: Murata
SKU: 90742
Price: 0.06 USD
Availability: InStock



Category Ferrite Bead Brand Murata Condition New

Specifications

Country of Origin	India
Brand	Murata
Material	Ferrite
Height	0.85mm
Length	2mm
Model	BLM21BD601SN1D
Depth	1.25mm
Mount Type	Surface
Current Rating	200mA
Series	BLM21BD
Maximum Operating Temperature	125°C
Package Type	0805
Sub Type	Chip Ferrite Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	REACH, RoHS
Maximum DC Resistance	350mΩ
Impedance at 100 MHz	600Ω

Key Features

0805 chip ferrite bead suitable for SMD electronic circuits.
600 ohms impedance at 100 MHz for effective EMI filtering.
Rated for 200mA maximum current, supporting high frequency lines.
Low maximum DC resistance of 350 mΩ to minimize power loss.
Operates from -55°C to 125°C, suitable for wide range environments.
REACH and RoHS compliant for standards-compliant applications.
Constructed using ferrite material for reliable EMI suppression.

Product Description

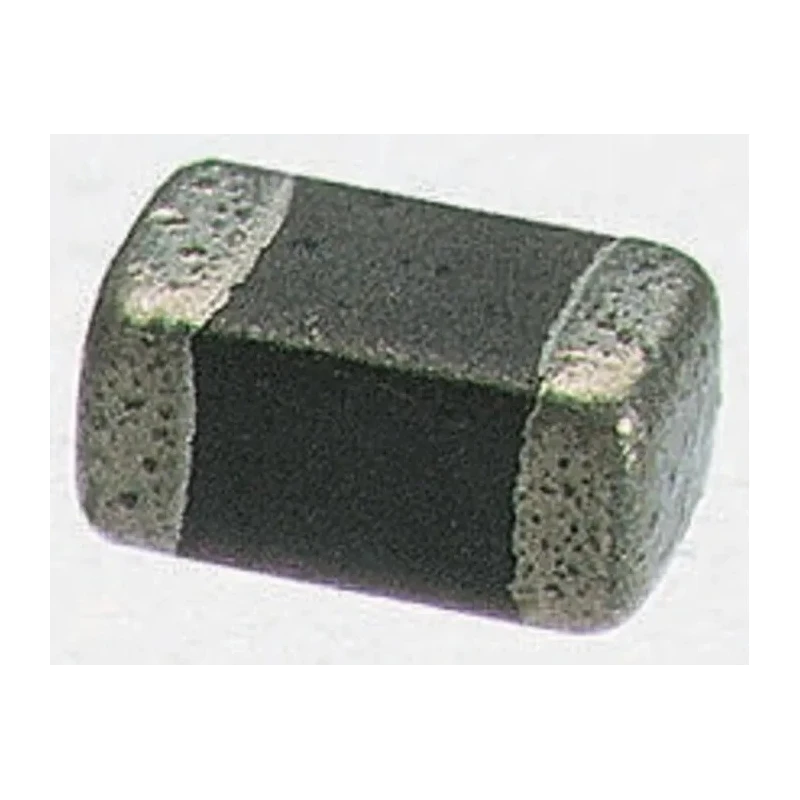

Murata BLM21BD601SN1D is a high-quality chip ferrite bead, designed to suppress electromagnetic interference (EMI) in electronic circuits. With a package type of 0805, it is especially suited for surface mount device (SMD) assembly, enabling efficient automated placement on PCBs.

This ferrite bead offers 600 Ω impedance at 100 MHz, making it ideal for filtering noise on high-speed signal lines and power supply rails. The current rating of 200mA allows it to be used in moderate current applications, such as data transmission interfaces and microcontroller power lines.

Its dimensions - 2mm length, 1.25mm depth, and 0.85mm height - make it suitable for compact electronic designs where board space is limited. The low maximum DC resistance of 350 mΩ ensures minimal voltage drop, preserving signal integrity.

The BLM21BD601SN1D ferrite bead is manufactured using ferrite material, delivering robust performance for EMI suppression and ensuring compliance with industrial standards. The product meets REACH and RoHS requirements, making it environmentally safe for a variety of industrial and consumer electronics.

0805 SMD chip ferrite bead for integration in automated PCB assembly. Efficient 600 Ω impedance at 100 MHz for suppressing high-frequency noise. Rated up to 200mA, accommodating typical current levels in communication and power circuits.

Compact and space-saving, with minimal insertion loss and low resistance. Wide operating temperature range (-55°C to +125°C), making it suitable for industrial and commercial equipment. Durable nickel barrier electrode construction for enhanced solder heat protection.

Ideal for EMI suppression in general electronics, industrial automation, laboratory equipment, and commercial devices. Series: BLM21BD. Sub type: Chip ferrite bead.

Applications for this ferrite bead include use on supply lines, data lines and high-speed digital signals in sectors such as industrial automation, laboratory instruments, telecom equipment, automotive electronics (non-automotive-qualified), and consumer devices.

For more solutions in EMI protection and passive components, explore the Murata Ferrite Bead range and electronics components on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ferrite bead has an impedance of 600 Ω at 100 MHz, making it effective for EMI filtering in high-frequency applications.

It is rated for a maximum current of 200mA, suitable for moderate current applications.

This model has dimensions of 2mm in length, 1.25mm in depth, and 0.85mm in height, making it compact for electronic designs.

The maximum DC resistance is 350 mΩ, which helps minimize power loss in electronic circuits.

It operates within a temperature range of -55°C to 125°C, allowing it to be used in various environments.

This model is designed for surface mount (SMD) applications, facilitating automated assembly on PCBs.

It is constructed using ferrite material, which is effective for EMI suppression.

The ferrite bead meets REACH and RoHS standards, ensuring it is environmentally compliant for various applications.

It is suitable for applications including supply lines, data lines, and high-speed digital signals in sectors like industrial automation and consumer electronics.

This model is part of the BLM21BD series, which includes various chip ferrite beads designed for EMI suppression.

The low maximum DC resistance of 350 mΩ helps ensure minimal voltage drop, preserving signal integrity in electronic circuits.

Yes, it can be used in automotive electronics; however, it is noted that it is not automotive-qualified.
