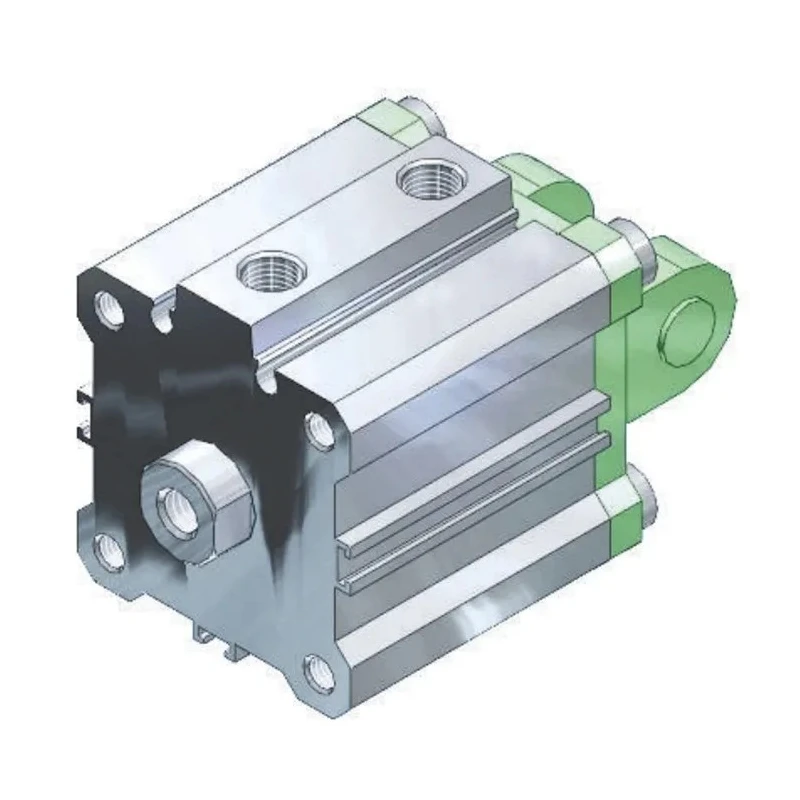

SMC Pneumatic Compact Cylinder 25mm Bore, 15mm Stroke, Double Acting, Aluminium Alloy Body CDQSB25-15D

SMC CDQSB25-15D Pneumatic Compact Cylinder is a double acting pneumatic piston rod cylinder designed for small bore applications requiring compact dimensions and lightweight construction. It features a 25 mm bore diameter and 15 mm stroke length housed in an aluminium alloy body, offering excellent corrosion resistance and durability.

This cylinder supports a maximum operating pressure of 1.5 MPa and piston speed up to 500 mm/s, making it suitable for a variety of pneumatic automation and fluid power systems. The through hole mounting and metric female piston rod thread size of 12 mm enable easy installation and compatibility with existing pneumatic setups.

The operating temperature range of -10°C to 70°C ensures reliable performance in different industrial environments, including manufacturing, packaging, laboratory automation, and HVAC systems. Its compact size with 42.5 mm length and 40 mm width and height facilitates space saving in machinery design.

The product includes features like magnetic or non-magnetic pistons, internal thread rod ends, nitrile seals, and flush fitting auto switch options. These characteristics provide versatility and dependable operation in pneumatic control systems used in various industrial sectors.

The cylinder's lightweight construction of 123 grams supports ease of handling and installation, minimizing mechanical load on motion systems. It is primarily used for precise linear motion control in pneumatic actuators and other automated mechanical systems.

This compact cylinder features a 25 mm bore diameter with a 15 mm stroke length. It has a maximum operating pressure of 1.5 MPa with a maximum piston speed of 500 mm/s. Constructed from durable aluminium alloy, it offers corrosion resistance and light weight.

The cylinder includes a through hole mount type with a single rod type and female piston rod gender. The piston rod thread size is 12 mm with a metric thread standard. Operating temperature ranges from -10°C to 70°C, suitable for various industrial environments.

The product weighs 123 grams and measures 42.5 mm in length, 40 mm in width, and 40 mm in height. The cylinder is magnetic or non-magnetic piston capable and designed for pneumatic piston rod applications. It offers flush fitting auto switch options and nitrile seals for reliable performance.

Ideal for pneumatic systems in industrial automation and fluid power applications. Explore our extensive range of pneumatic cylinders and actuators at EnvMart for precise and efficient automation solutions.
