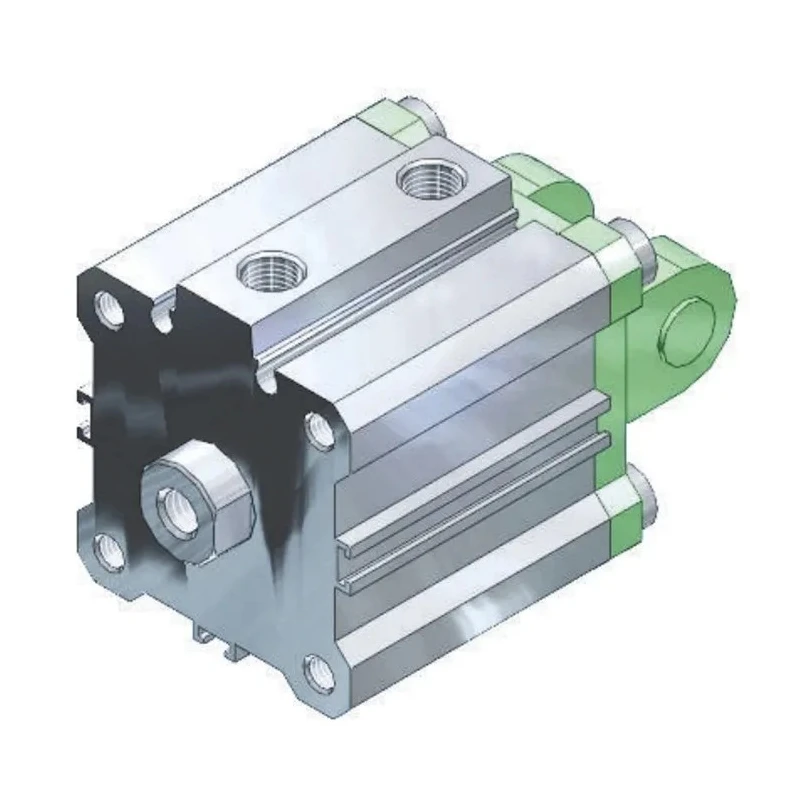

SMC Pneumatic Compact Cylinder 25mm Bore, 50mm Stroke, Double Acting, Aluminium Alloy Body, Metric Thread CDQSB25-50D
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 40mm |
| Length | 77.5mm |
| Model | CDQSB25-50D |
| Gross Weight | 234g |
| Width | 40mm |
| Mount Type | Through Hole |
| Series | CDQS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 50mm |
| Bore Diameter | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Maximum Piston Speed | 500 mm/s |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 12 mm |
Key Features
- Constructed with lightweight aluminium alloy for durability and corrosion resistance.
- Features through hole mount type for flexible installation.
- Maximum operating pressure of 1.5 Mpa suitable for varied pneumatic applications.
- Operating temperature range from -10°C to 70°C ensuring performance in diverse environments.
- Single rod type with female metric 12 mm piston rod thread for standardized fittings.
- Compact size with length 77.5mm, width and height 40mm providing space-saving design.
- Lightweight unit weighing only 234 grams facilitates easy integration into systems.
Product Description
SMC CDQSB25-50D Pneumatic Compact Cylinder is designed for industrial automation requiring precision and compactness. It features a 25mm bore diameter with a 50mm stroke length, utilizing a double acting action for efficient pneumatic force generation. The aluminium alloy body reduces weight and provides corrosion resistance, making it suitable for harsh operational settings.
The cylinder supports through hole mounting, allowing versatile installation options in manufacturing, packaging, and automation systems. It is rated for a maximum operating pressure of 1.5 Mpa and can sustain piston speeds up to 500 mm/s. Its operating temperature range from -10°C to 70°C ensures reliable performance in diverse environmental conditions.
The piston rod is a single type with a female metric threaded size of 12 mm, adhering to common industrial standards for easy interfacing with machinery. The compact dimensions - 77.5mm length, 40mm width and height - enable space and weight savings in equipment design.
This product is suitable for industrial, manufacturing, laboratory, and automation applications where precision compact pneumatic cylinders are essential. The robust aluminium construction and standard metric fittings provide reliable operation and ease of maintenance.
Lightweight aluminium alloy body enhances durability and corrosion resistance. Through hole mount type permits flexible and secure installations. Maximum operating pressure of 1.5 Mpa supports a wide range of pneumatic tasks.
Operational temperature range from -10°C to 70°C for varied environments. Single rod type with female metric 12 mm piston rod thread for standard interfacing. Compact dimensions for saving space in industrial assemblies.
Ideal for industrial automation, manufacturing, and laboratory uses. Explore more pneumatic cylinders and actuators in the hydraulic & pneumatic tools category at EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1.5 Mpa, making it suitable for a wide range of pneumatic applications.
This compact cylinder has a length of 77.5mm, a width of 40mm, and a height of 40mm, allowing for space-saving integration into systems.
The stroke length of this unit is 50mm, providing efficient movement for various applications.
The bore diameter of this pneumatic cylinder is 25mm, which contributes to its compact design and performance capabilities.
It operates effectively within a temperature range of -10°C to 70°C, ensuring reliable performance in diverse environments.
This model features a through hole mount type, allowing for flexible and secure installations in various applications.
The piston rod is a single type with a female metric thread size of 12mm, adhering to common industrial standards for easy interfacing.
The maximum piston speed for this unit is 500 mm/s, facilitating efficient operation in automation tasks.
The body of this cylinder is constructed from lightweight aluminium alloy, providing durability and corrosion resistance.
This model utilizes a double acting action type, which allows for efficient pneumatic force generation in both directions.
It is suitable for industrial automation, manufacturing, laboratory, and various other applications where compact pneumatic cylinders are essential.
The country of origin for this model is China, indicating its manufacturing location.
