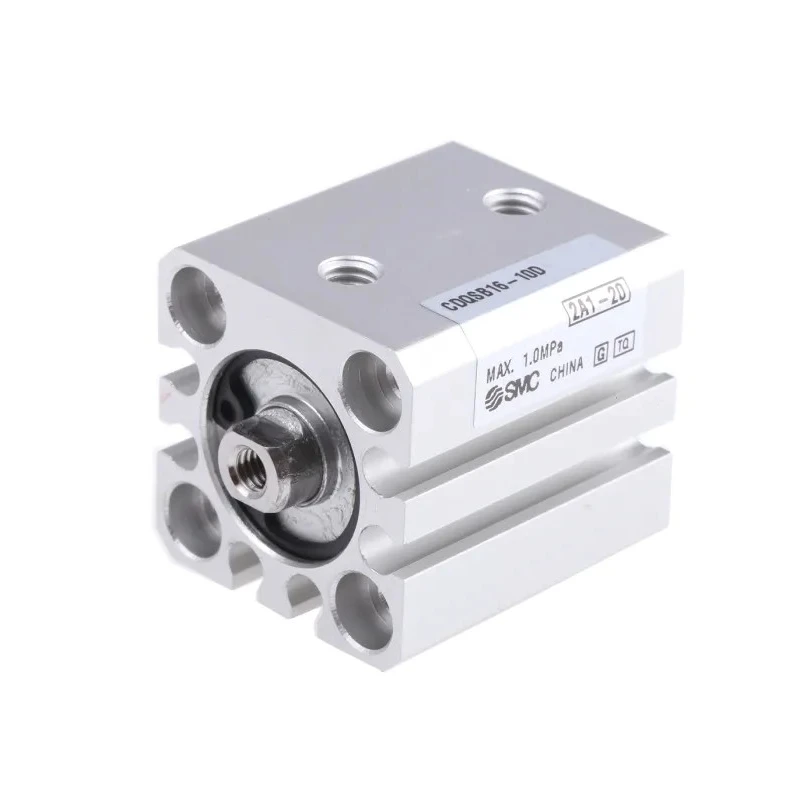

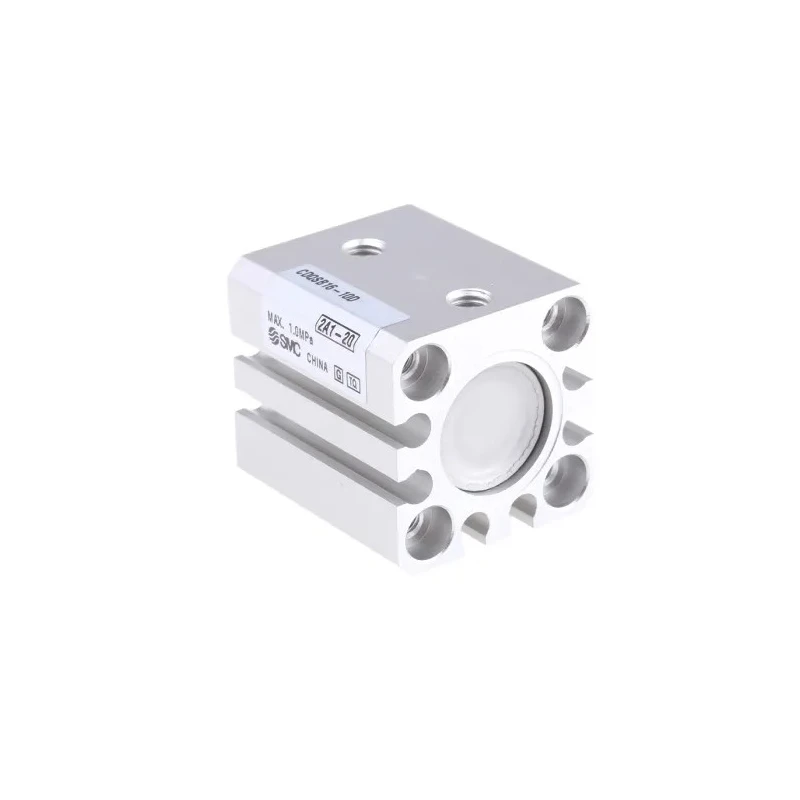

SMC Pneumatic Compact Cylinder 16mm Bore, 10 mm Stroke, Aluminium Alloy Body, Double Acting CDQSB16-10D

The SMC CDQSB16-10D Pneumatic Compact Cylinder is a high-quality actuator designed for use in industrial pneumatic systems requiring compact size and reliable double acting operation. With a 16 mm bore diameter and a 10 mm stroke length, this cylinder is ideal for applications where space constraints and precise control are critical.

Constructed from durable aluminium alloy, the cylinder body combines strength with reduced weight, enabling longer endurance and easier integration into pneumatic machinery. The through hole mount type facilitates straightforward and secure installation within various mechanical assemblies.

Capable of operating at a maximum pressure of 1.5 MPa, this cylinder supports robust pneumatic power transmission. The single piston rod includes a female thread with a metric standard size of 8 mm, accommodating a variety of attachments and end effectors.

Engineered for reliability, this model operates efficiently within a temperature range of -10°C to 70°C, making it suitable for diverse environmental conditions encountered in industrial automation, assembly lines, laboratory equipment, packaging machinery, and pneumatic handling tools.

The compact design offers space and weight saving advantages. Constructed with an aluminium alloy body for durability and lightweight performance. Double acting mechanism allows controlled motion in both directions. Through hole mount type ensures easy and secure installation.

Maximum operating pressure of 1.5 MPa supports demanding pneumatic applications. Operating temperature range from -10°C to 70°C for versatile usage conditions. Single rod type with 8 mm metric thread size on a female piston rod.

Lightweight at 47 grams, suitable for applications requiring minimal load on moving parts. Stroke length of 10 mm and overall cylinder length of 30.5 mm for precise movement.

SMC’s CDQSB series is renowned for magnetic or non-magnetic piston variants and features such as flush fitting auto switches as standard options, enhancing sensor integration possibilities. These cylinders are widely used in industrial automation, manufacturing, and fluid power systems.

Explore the full range of Pneumatic Compact Cylinders and accessories on EnvMart to find compatible components for your industrial projects and applications.
