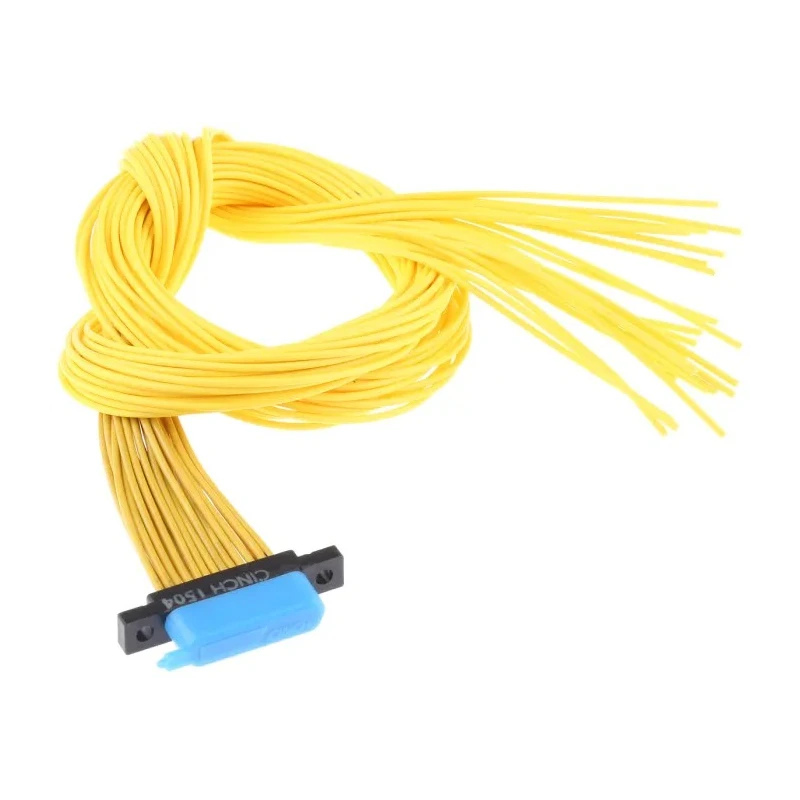

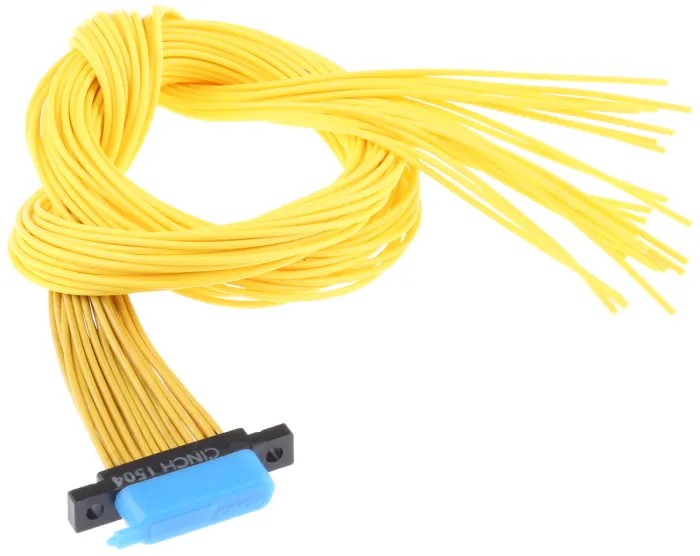

Cinch 25 Way Straight D-Sub Cable Connector, 1.27mm Pitch, Male, Pre-Wired, 3A, 200V DCDA-25P-6E2-18.0B
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 200.0V |
| Brand | Cinch |
| Orientation | Straight |
| Current | 3A |
| Model | DCDA-25P-6E2-18.0B |
| Mount Type | Cable |
| Housing Material | Polyester |
| Standard | MIL-C-83513 |
| Contact Material | Copper Alloy |
| Series | DCDA |
| Termination Type | Pre-Wired |
| Maximum Operating Temperature | 135°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Contact Size | 26 AWG |
| RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector MaleBrand | RS PRO |
| Shell Type | Plastic |
Key Features
- Pre-wired D-Sub connector with 25 male contacts for easy and secure installation.
- Supports up to 3A current at 200V, suitable for both power and data signals.
- Glass-filled thermoplastic (polyester) housing ensures lightweight durability.
- Straight cable mount orientation ideal for compact electronic assemblies.
- Gold-plated copper alloy contacts provide reliable, low-resistance connections.
- Withstands temperatures from -55°C to 135°C for reliable operation in harsh environments.
- Meets MIL-C-83513 standard for high performance and compatibility.
- Pitch of 1.27mm allows for high-density multi-contact connections.
Product Description
The Cinch DCDA-25P-6E2-18.0B connector is a robust and high-density 25 way straight male D-Sub cable connector with a 1.27mm pitch, specifically engineered for modern electronic systems requiring reliable multi-contact interconnection. This connector features a pre-wired design, simplifying installation and reducing the time required for assembly of complex cabling in industrial and professional environments.
Constructed with a glass-filled thermoplastic polyester shell, the housing provides superior insulation, mechanical strength, and a lightweight profile compared to traditional metal shells. The connector integrates 25 gold-plated copper alloy contacts, optimizing signal transmission with low resistance and minimizing signal loss over extended connections. The contact material and plating also prioritize corrosion resistance and longevity, making this component suitable for mission-critical tasks.
Supporting a maximum current rating of 3A at 200V, this connector meets stringent power and signal requirements. Its straight cable mounting orientation and pre-attached 450mm yellow PFTE leads offer practical advantages for integration into panel assemblies, equipment enclosures, and circuit interface modules where space is at a premium. The male contact gender and cable-mount form enable straightforward matching with standard mating connectors.
Designed for resilience, this connector operates dependably over a wide temperature range from -55°C to 135°C, accommodating harsh laboratory, industrial automation, communications, embedded systems, and instrumentation settings. The connector complies with MIL-C-83513 standards, further assuring compatibility for defense, aerospace, and high-reliability commercial applications.
Key features of the Cinch DCDA-25P-6E2-18.0B include robust construction, pre-wired terminations for easy setup, and precision engineering for demanding use cases. Its reliability in data and power transmission makes it a trusted choice for systems requiring high contact density and strong environmental resistance. For more D-Sub and electronic connectors, including compatible accessories and panel mount versions, explore the D-Sub Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 3A and a voltage rating of 200V.
The contact pitch for this D-Sub connector is 1.27mm, allowing for high-density multi-contact connections.
The housing is made from glass-filled thermoplastic polyester, while the contacts are crafted from gold-plated copper alloy for optimal signal transmission.
It operates reliably within a temperature range of -55°C to 135°C, making it suitable for harsh environments.
This model features 25 male contacts, which facilitate connections for both power and data signals.
Yes, this connector comes pre-wired, simplifying installation and reducing assembly time.
The connector has a straight cable mount orientation, which is ideal for compact electronic assemblies.
It meets the MIL-C-83513 standard, ensuring high performance and compatibility for various applications.
The termination type for this model is pre-wired, which facilitates easier setup in various applications.
This connector is suitable for applications in industrial automation, communications, embedded systems, and instrumentation settings.
The shell type of this D-Sub connector is plastic, contributing to its lightweight design and mechanical strength.
The contact size is 26 AWG, which is standard for this type of connector.
