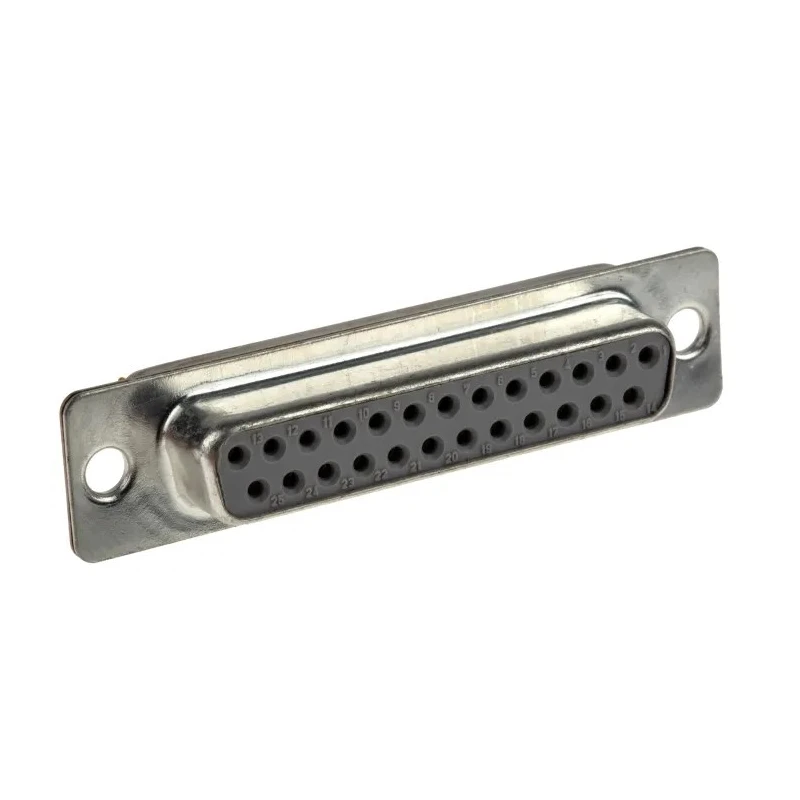

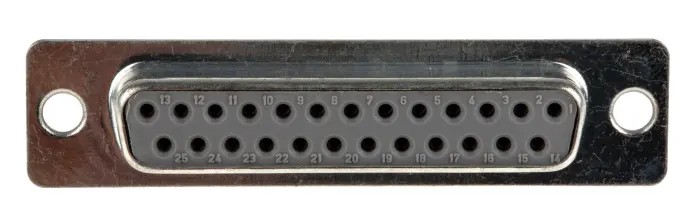

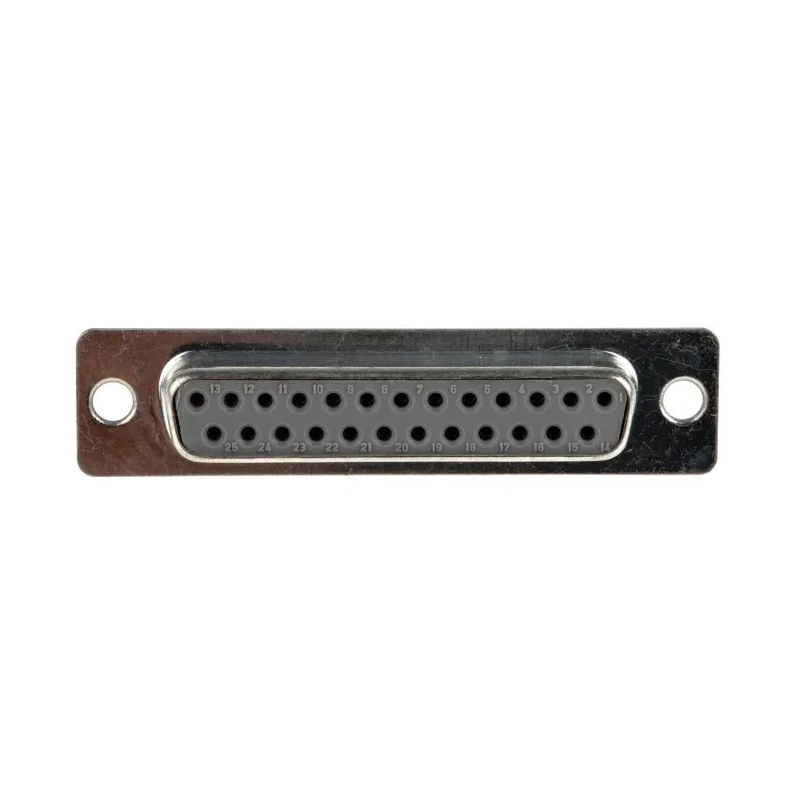

Cinch 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector Female FDB-25S0L2T2/1

Cinch FDB-25S0L2T2/1 is a 25 Way Straight 2.76 mm Pitch Through Hole D-Sub Connector Female designed to deliver high reliability in electronic and industrial applications. This connector features a straight orientation and through-hole mount type, making it suitable for secure and stable PCB connections in manufacturing and automation industries.

The connector provides 25 gold-plated female contacts made from copper alloy, which ensures excellent electrical conductivity and corrosion resistance. The pitch between contacts is 2.76 mm, offering precise and compact wiring arrangement.

The housing is constructed from fibreglass reinforced polyethylene terephthalate, providing mechanical strength and chemical resistance. It operates safely within a voltage of 200V and can handle currents up to 5A, supporting robust electrical performance required in commercial, military, and industrial sectors.

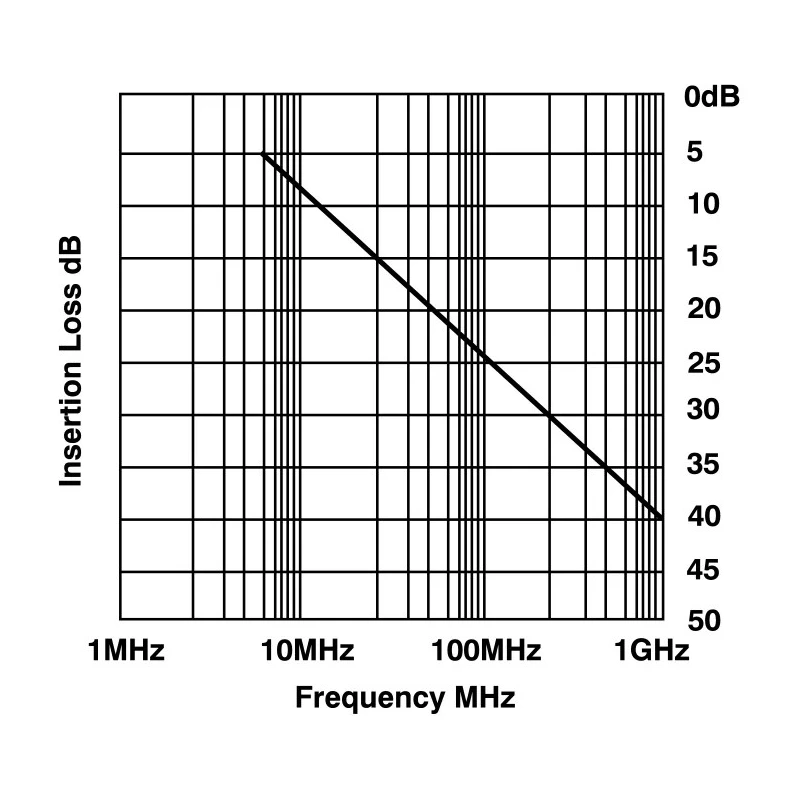

Designed with EMI filtering capability, it limits cable-borne electromagnetic interference through an internal 1000pF capacitor from each contact to ground, enhancing signal integrity especially in VHF and UHF bands.

The connector is rated UL94V-0 for flammability, ensuring fire safety compliance in critical environments. It operates reliably over a broad temperature range from -25°C to 125°C, suitable for extreme operating conditions in laboratory, construction, and manufacturing settings.

Provides 25 contacts with a 2.76 mm pitch for precise interfacing. Straight orientation with through-hole mounting for secure PCB installation. Current rating up to 5A supporting robust electrical flow. Gold-plated copper alloy female contacts ensuring excellent conductivity.

Fibreglass reinforced polyethylene terephthalate housing for durability and resistance. Operating voltage of 200V suitable for industrial applications. Wide temperature range from -25°C to 125°C ensuring reliable performance in harsh conditions.

Solder termination type for stable and long-lasting connections. Complies with UL94V-0 flammability rating for safety standards. Constructed and made in the United Kingdom assuring high manufacturing quality.

This Cinch D-Sub Connector is ideal for use in industrial automation, military equipment, telecommunications, and computing systems where signal integrity, durability, and EMI reduction are critical.
