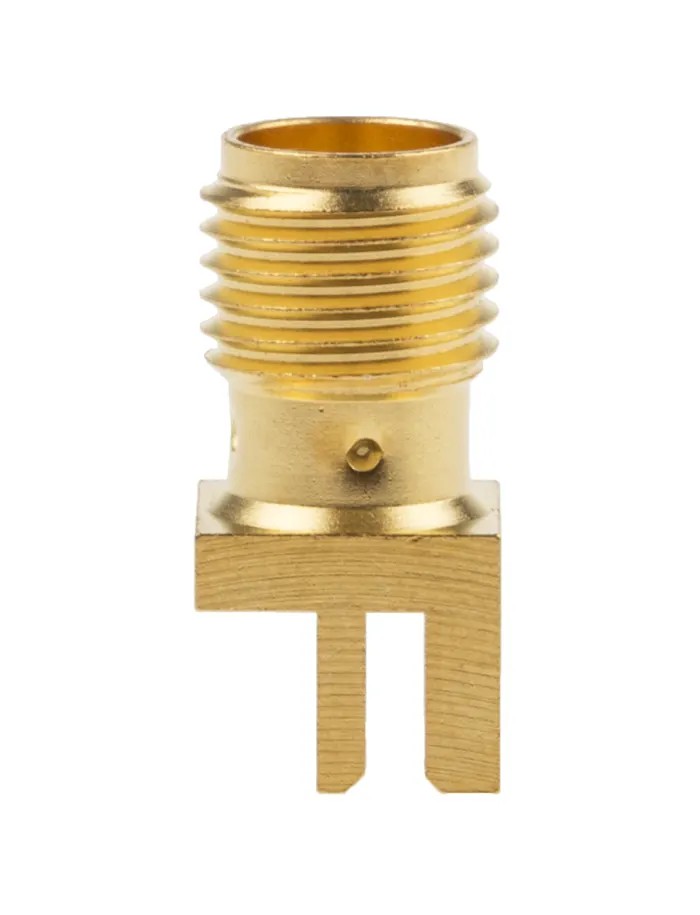

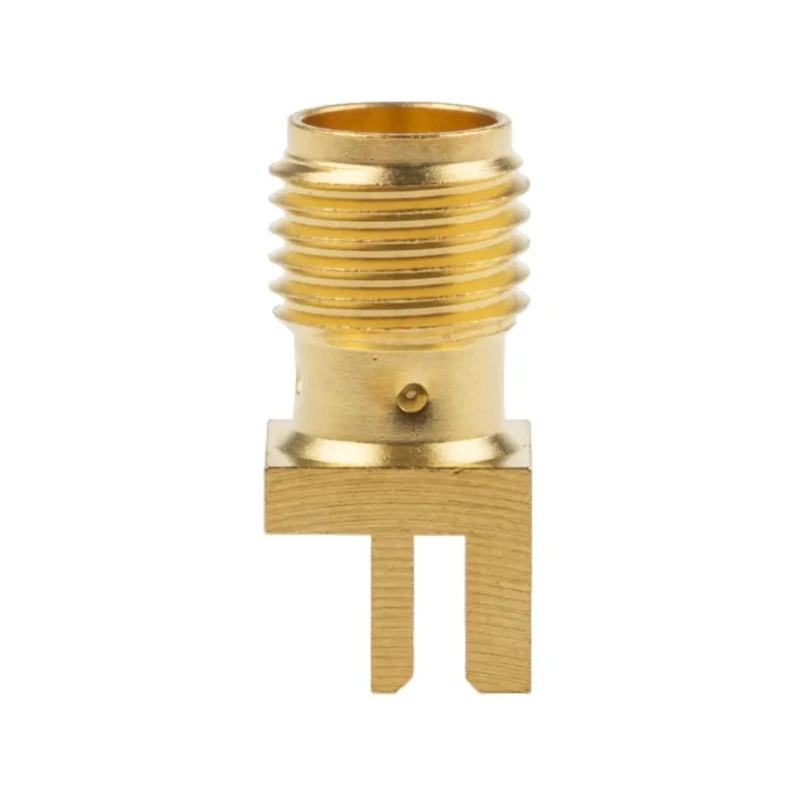

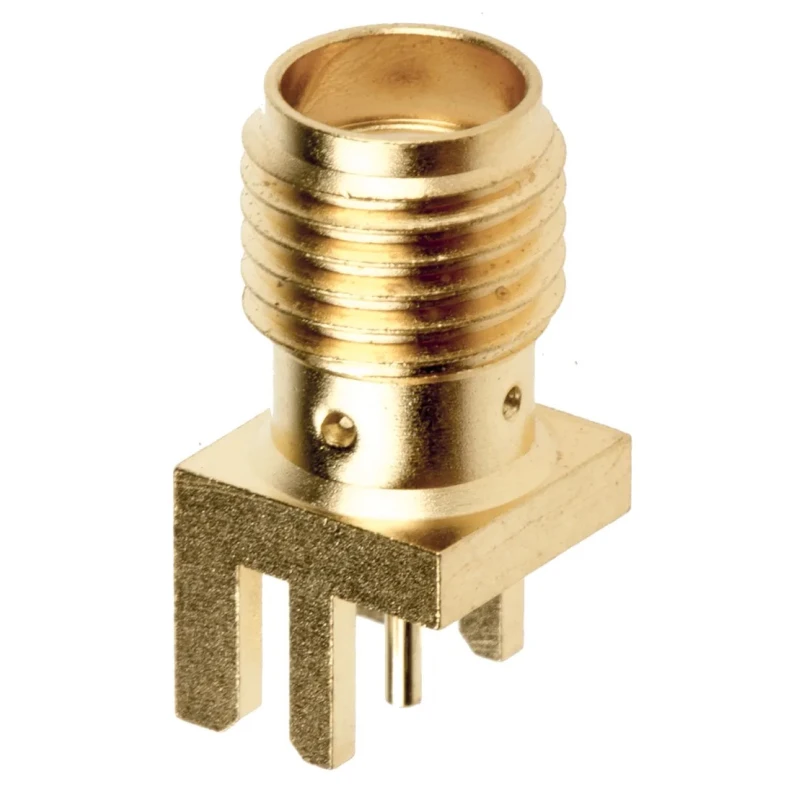

Cinch 142 Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0711-841
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Cinch |
| Orientation | Straight |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | 142 |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG178, RG58, RG142 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold over Nickel |
Key Features
- Supports a wide operating frequency up to 18 GHz.
- Features gold over nickel body plating for enhanced durability.
- Constructed with beryllium copper alloy contacts plated with gold for reliable conductivity.
- Operates across a temperature range from -65°C to 165°C.
- Compatible with RG178, RG58, and RG142 cable types.
- Designed with normal polarity and female contact gender.
- Standard size ensures versatile application in RF communications.
- Edge mount type providing secure and stable installation.
Product Description
Cinch 142-0711-841 is a 142 Series coaxial edge mount connector designed for professional and industrial RF applications. This female SMA coaxial connector maintains a 50 Ω impedance and features a straight body with solder termination, ensuring reliable electrical and mechanical performance.
The connector utilizes a stainless steel body plated with gold over nickel to resist corrosion and mechanical wear, complemented by beryllium copper alloy contact material with gold plating to deliver superior conductivity and signal integrity.
Operating frequency capability extends up to 18 GHz, suitable for high-frequency communication systems. Temperature tolerance ranges from -65°C to a maximum of 165°C, allowing use in diverse environmental conditions. Compatible cables include RG178, RG58, and RG142, offering flexibility for varied installation environments.
The connector has normal polarity and female contact gender designed to fit standard SMA configurations, providing reliable mating with corresponding connectors. Its edge mount style enables compact installation particularly in PCB or equipment edges requiring RF connectivity.
This connector is ideal for industrial, laboratory, telecommunications, and electronic manufacturing applications where high-frequency signal transmission and durable connections are essential. It is manufactured in China under the Cinch brand, known for quality connectivity solutions.
Supports a wide operating frequency up to 18 GHz. Features gold over nickel body plating for enhanced durability. Constructed with beryllium copper alloy contacts plated with gold for reliable conductivity. Operates across a temperature range from -65°C to 165°C.
Compatible with RG178, RG58, and RG142 cable types. Designed with normal polarity and female contact gender. Standard size ensures versatile application in RF communications. Edge mount type providing secure and stable installation.
Explore the broad range of Cinch Coaxial Connectors and adapters available for specialized and high-performance electronic component requirements by browsing the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 18 GHz, making it suitable for high-frequency communication systems.
It operates across a temperature range from -65°C to 165°C, allowing for use in diverse environmental conditions.
This connector is compatible with RG178, RG58, and RG142 cable types, providing flexibility for various installation environments.
It features a solder termination type, ensuring reliable electrical and mechanical performance.
The connector is constructed with a stainless steel body plated with gold over nickel, and it features beryllium copper alloy contacts plated with gold for reliable conductivity.
This model maintains a 50 Ω impedance, which is standard for SMA connectors.
The connector has a female contact gender, designed to fit standard SMA configurations.
It features an edge mount type, providing secure and stable installation, particularly in PCB or equipment edges.
This connector has a straight body orientation, which is typical for SMA connectors.
The body of this connector is plated with gold over nickel, enhancing its durability and resistance to corrosion.
This connector belongs to the 142 Series, which is designed for professional and industrial RF applications.
This model is manufactured in China under the Cinch brand, known for quality connectivity solutions.
