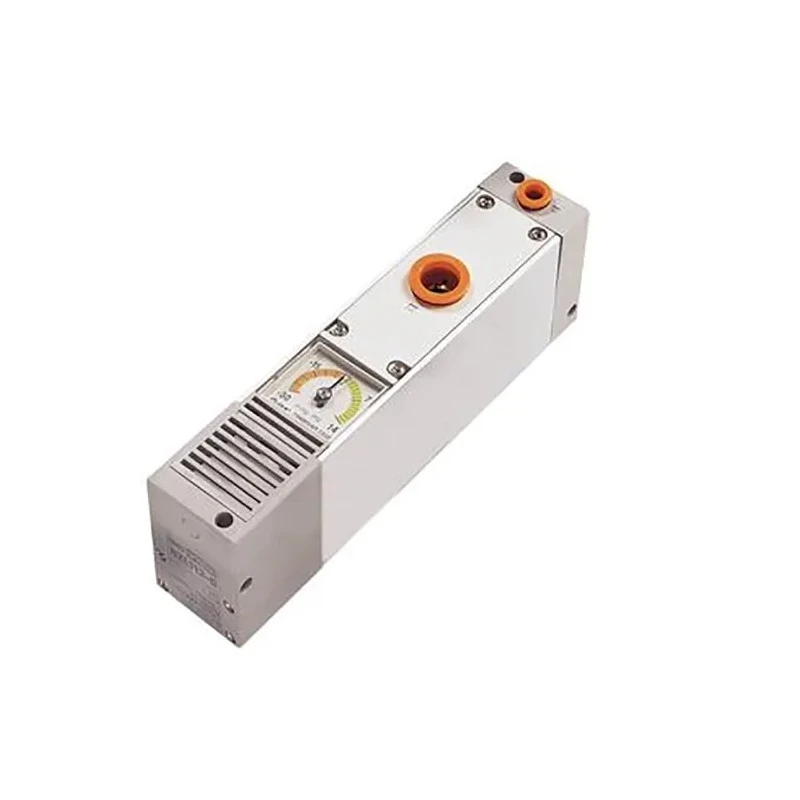

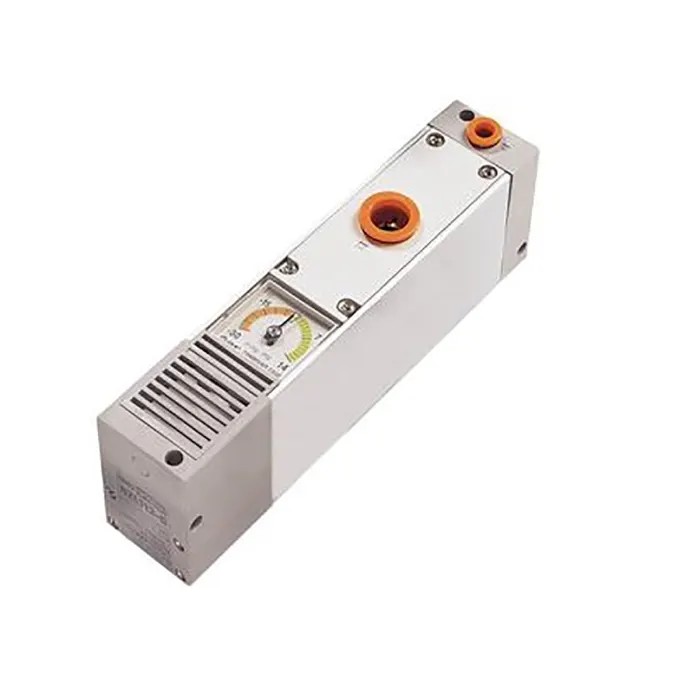

SMC Compact Pneumatic Multistage Vacuum Generator ZL112A Industrial Automation Ejector -84 kPa 100 L/min 0.2-0.5 MPa

SMC ZL112A vacuum generator is a compact pneumatic multistage ejector designed to create vacuum from compressed-air supply, used extensively in industrial automation and material handling within factory pneumatic systems and control panels.

This vacuum generator features a maximum suction flow rate of 100 liters per minute, which increases throughput efficiency. It consumes air at 57 liters per minute, helping to reduce supply demand while maintaining performance. The peak vacuum pressure reaches negative 84 kilopascals, allowing for a strong and reliable hold of workpieces and compatible gases.

The supply pressure range from 0.2 to 0.5 megapascals supports variable pneumatic systems, accommodating different industrial requirements. Weighing only 180 grams, the device minimizes the payload on gantries and end-of-arm tooling, beneficial for robotic arms and automated equipment.

The three-stage diffuser improves suction consistency, ensuring steady vacuum pressure through various operational cycles. The vacuum generator is suitable for numerous applications such as pick-and-place machines in automated cells, suction grippers on robotic arms and collaborative robots, and conveyor pick stations in electronics assembly.

Additionally, it is effective for leak evacuation tasks in pneumatic test rigs and is widely applicable as end-of-arm tooling in mechanical handling systems. Maintenance is simplified with removable suction cover and silencer cover, allowing for quick filter and sound-absorbing material replacement without tools.

Maximum suction flow rate of 100 liters per minute enhances throughput. Low air consumption of 57 liters per minute reduces supply demand. Peak vacuum pressure of -84 kilopascals provides strong holding force. Wide supply pressure range of 0.2 to 0.5 megapascals supports diverse pneumatic systems.

Lightweight design at 180 grams minimizes payload on automation equipment. Three-stage diffuser ensures consistent vacuum suction. Ideal for pick-and-place machinery in automation cells. Compatible with robotic arm and cobot suction grippers.

Used in conveyor pick stations for electronics manufacturing. Effective for leak evacuation in pneumatic test rigs. Suitable for mechanical handling end-of-arm tooling.

This vacuum generator complies with CE and RoHS standards. It operates reliably within industrial environments, offering versatility for manufacturing, automation, material handling, and laboratory pneumatic applications. Environmentally, it supports installation in temperature ranges of 5 to 50 degrees Celsius without condensation. The device allows flexible exhaust options via silencer or ported connections to suit various installation scenarios.
