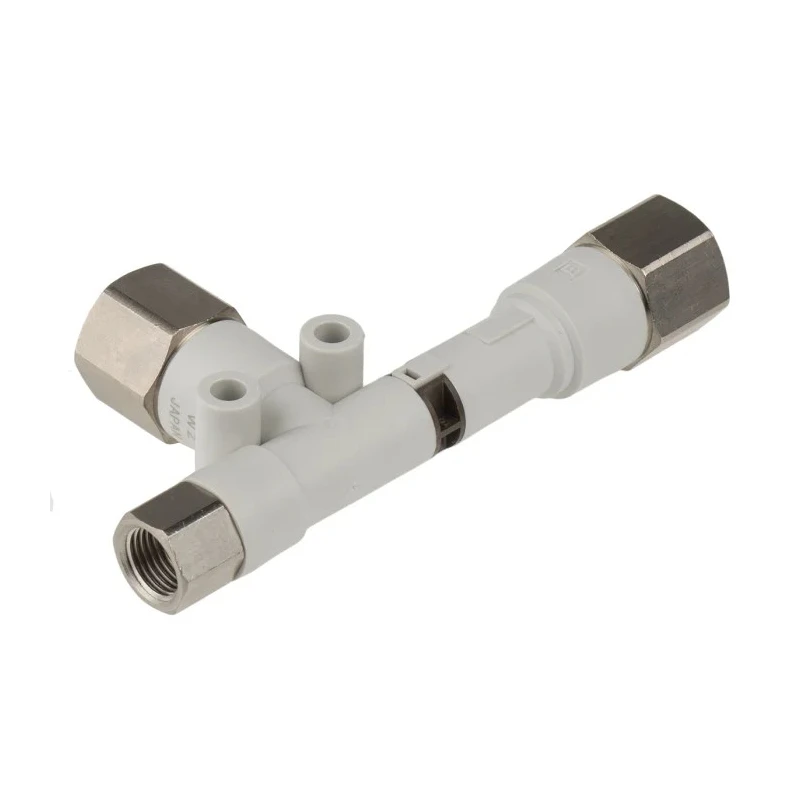

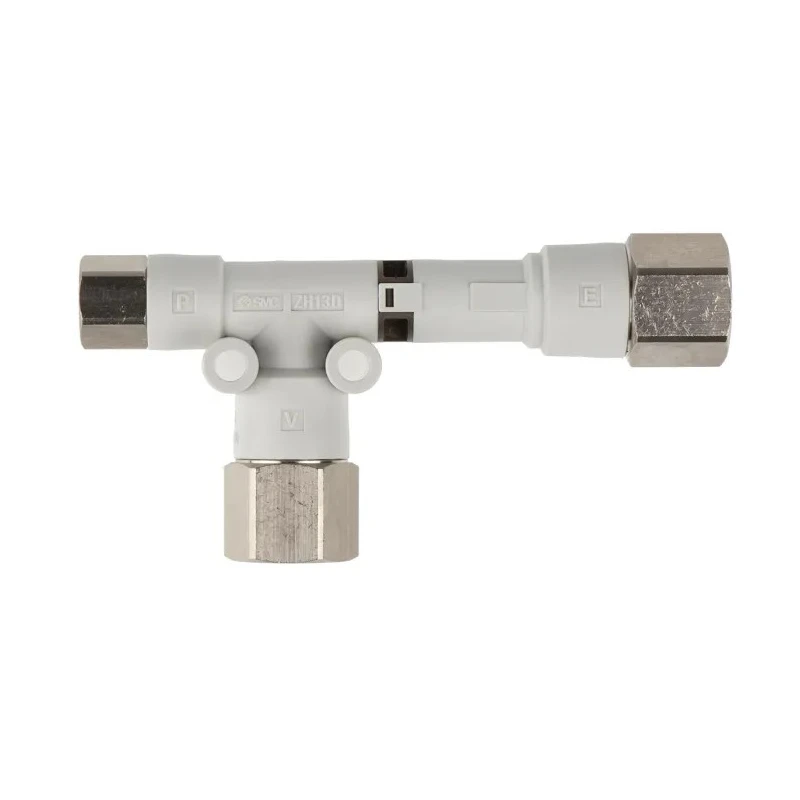

SMC Vacuum Generator Compact Body-Ported Ejector with 1.3mm Nozzle Diameter R1/8 & R1/4 Ports Japan ZH13DSA-01-02-02

Free Delivery in India | Lowest Global Shipping Charges

SMC Vacuum Generator Compact Body-Ported Ejector with 1.3mm Nozzle Diameter R1/8 & R1/4 Ports Japan ZH13DSA-01-02-02



Category Vacuum Generator Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Model	ZH13DSA-01-02-02
Standards/Approvals	RoHS

Key Features

Maximum vacuum of 90 kPa ensures efficient part gripping and handling.
Flow rate of 40 liters per minute maintains steady suction performance.
Equipped with a 1.3 mm nozzle for rapid vacuum generation.
Screw-in pneumatic connections with R1/8 inlet and vacuum ports plus R1/4 exhaust port.
Compatible with soft nylon, nylon, and polyurethane tubing for vacuum delivery.
Operates reliably in ambient temperatures from -5°C to 50°C suitable for factory conditions.

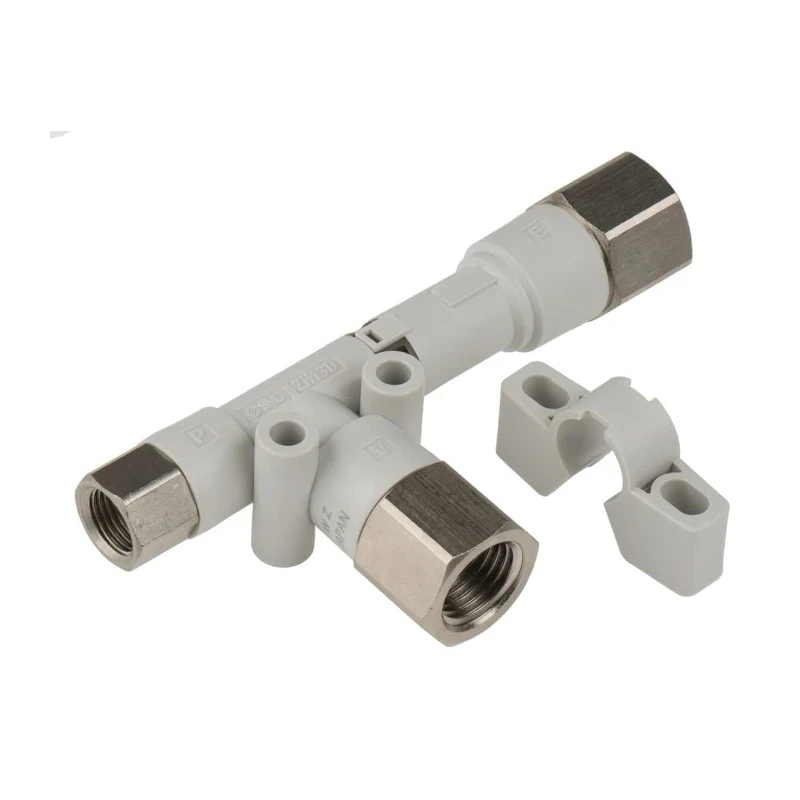

Includes mounting bracket options for secure installation in automation setups.
Ideal for robotic pick-and-place, small electronics component handling, and vacuum transfer of lightweight parts.

Product Description

SMC ZH13DSA-01-02-02 Vacuum Generator is a compact, body-ported ejector that converts compressed air into a vacuum source. This device is optimized for pick-and-place and handling automation applications in industrial environments. It features a robust design with screw-in pneumatic connections and supports standard tubing materials like soft nylon, nylon, and polyurethane to ensure flexible integration.

The vacuum generator achieves a maximum vacuum pressure of 90 kPa and has a flow rate of 40 liters per minute, enabling effective and consistent suction for reliable part gripping. Its 1.3 mm nozzle facilitates rapid vacuum generation, making it suitable for high-speed operations.

Connection ports include R1/8 inlet and vacuum ports, along with an R1/4 exhaust port, allowing seamless integration with existing pneumatic systems. This product is rated for stable operation within a temperature range of -5°C to 50°C, accommodating typical industrial and factory environments without compromise on performance.

Applications for the ZH13DSA-01-02-02 include robotic pick-and-place end-of-arm tooling, handling of small electronic components in assembly lines, use with pneumatic grippers in mechanical automation, and vacuum transfer of lightweight packaging parts. The option to include mounting brackets offers flexible installation solutions to suit various industrial setups.

Maximum vacuum of 90 kPa ensures reliable gripping and handling. 40 liters per minute flow rate maintains suction stability during operations. Rapid vacuum generation via a precision 1.3 mm nozzle design. Screw-in pneumatic connections with R1/8 inlet and vacuum ports plus an R1/4 exhaust port.

Compatible with common tubing materials: soft nylon, nylon, and polyurethane. Operational ambient temperature range of -5°C to 50°C ensures factory compatibility. Bracket mounting options facilitate easy and secure installation.

Suited for robotic end-of-arm tooling and small component vacuum handling.

This vacuum generator is a high-quality product manufactured in Japan, meeting RoHS standards for compliance and environmental safety. It is ideal for use in industrial automation, manufacturing lines, packaging, and laboratory applications requiring dependable vacuum generation.

Explore EnvMart's selection of Vacuum Generators for automation and pneumatic tool needs. Discover reliable solutions built for precision and durability in demanding industrial contexts.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum vacuum pressure of this model is 90 kPa, ensuring effective part gripping and handling during operations.

This vacuum generator has a flow rate of 40 liters per minute, which maintains steady suction performance during use.

It is equipped with a 1.3 mm nozzle, which facilitates rapid vacuum generation for efficient operation.

This unit is compatible with soft nylon, nylon, and polyurethane tubing for vacuum delivery, allowing flexible integration into existing systems.

It features screw-in pneumatic connections with R1/8 inlet and vacuum ports, plus an R1/4 exhaust port for easy integration.

It operates reliably in ambient temperatures ranging from -5°C to 50°C, making it suitable for typical factory conditions.

This model is ideal for robotic pick-and-place, handling small electronic components, and vacuum transfer of lightweight parts in industrial automation.

Yes, it includes mounting bracket options for secure installation in various automation setups.

It meets RoHS standards for compliance and environmental safety, ensuring it adheres to regulatory requirements.

The vacuum generator is manufactured by SMC in Japan, ensuring quality and reliability in its design.

It is a compact, body-ported ejector designed to convert compressed air into a vacuum source for efficient operation.

The unit's screw-in pneumatic connections and compatibility with standard tubing materials allow for seamless integration with existing pneumatic systems.
