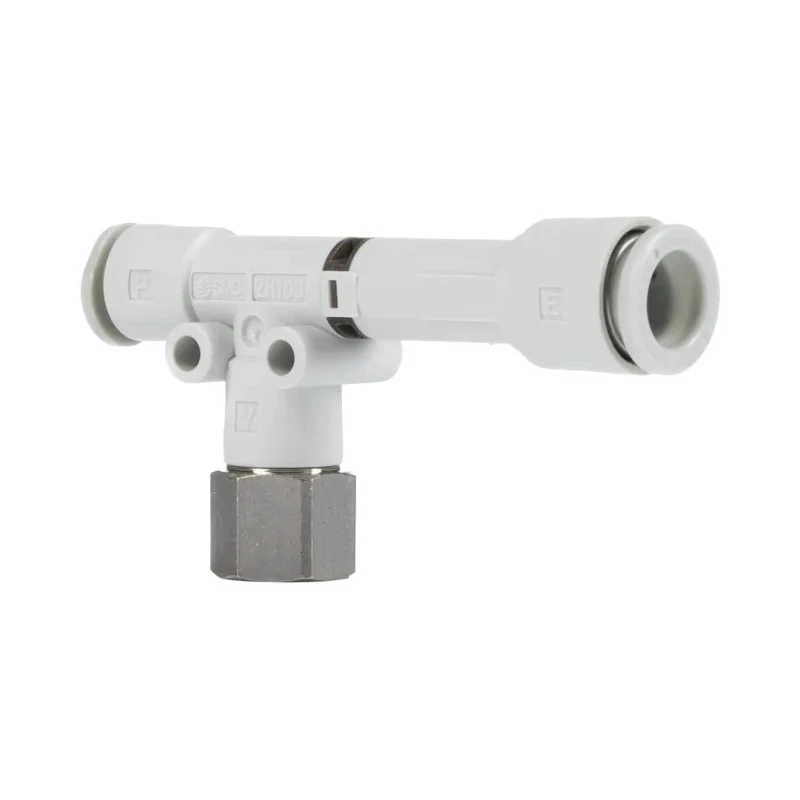

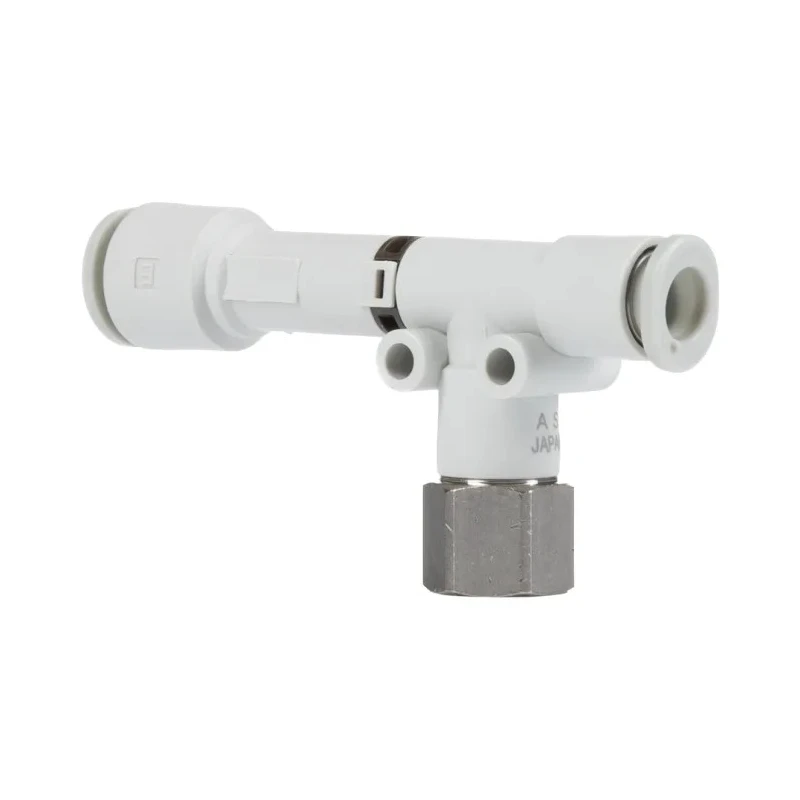

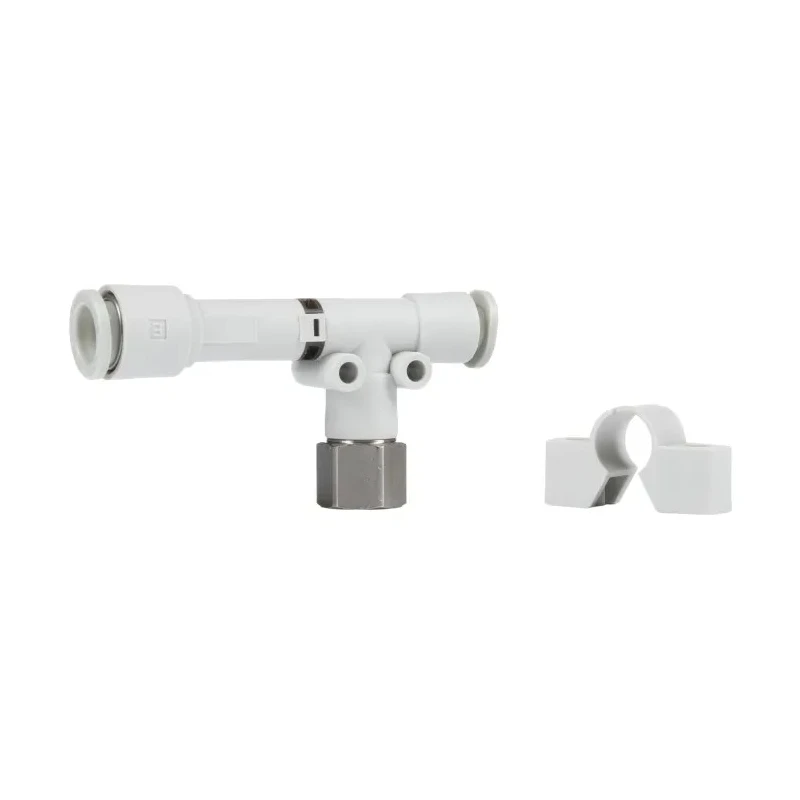

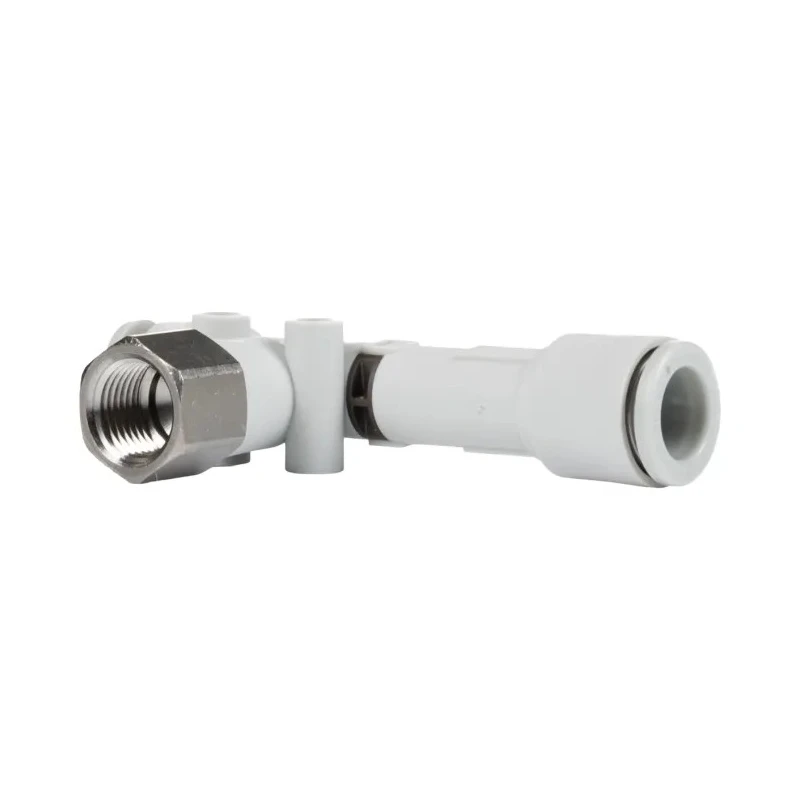

SMC Compact Vacuum Generator 1.0mm Nozzle Diameter, Max Vacuum -90 kPa, Flow Rate 26 L/min, ZH10DSA-06-01-08
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZH10DSA-06-01-08 |
| Standards/Approvals | ISO8573-1:2010, RoHS, JIS B8392-1:2012 |
| SMC Vacuum GeneratorBrand | SMC |
| Standards/Approvals ISO8573-1 | 2010, RoHS, JIS B8392-1:2012 |
Key Features
- Provides maximum vacuum pressure of -90 kPa for reliable part pick-up.
- Maintains a flow rate of 26 liters per minute (ANR) supporting efficient throughput.
- Equipped with one-touch pneumatic vacuum connection Ø6 for easy installation.
- Pneumatic input and exhaust use one-touch Ø8 fittings simplifying tubing layout.
- Operates with compressed air between -5 °C to 50 °C in ambient and medium conditions.
- Compatible with nylon, soft nylon, and polyurethane tubing for the vacuum port.
- Features bracket mounting options and optional silencer for flexible integration.
- Suitable for pick-and-place in electronics, small-part handling, and packaging transfer applications.
Product Description
SMC ZH10DSA-06-01-08 Vacuum Generator is a compact, high-performance pneumatic ejector designed for automated handling and component transfer in industrial environments. It features a 1.0mm nozzle diameter and achieves a maximum vacuum of -90 kPa, enabling strong and reliable suction for pick-and-place operations.
The vacuum generator supports a flow rate of 26 liters per minute (ANR), facilitating moderate throughput in manufacturing and assembly processes. It integrates one-touch pneumatic vacuum connections sized Ø6, along with input and exhaust connections sized Ø8, ensuring quick, simplified installation and tubing management.
Constructed for use with compressed air, it operates effectively within temperature ranges of -5 °C to 50 °C for both ambient and medium conditions. The vacuum port accommodates nylon, soft nylon, and polyurethane tubing, allowing compatibility with common tubing materials used in industrial systems.
The device includes mounting bracket options and may be supplied without a silencer for compact, box-style installations to suit specialized layouts. This vacuum generator is ideal for industrial automation tasks such as vacuum gripping of printed circuit boards (PCBs), delicate component handling, mechanical automation cells, and material transfer in packaging equipment.
Maximum vacuum of -90 kPa enables secure part pick-up. Flow rate of 26 L/min (ANR) supports efficient operation. One-touch vacuum connection Ø6 and push-in fittings Ø8 for supply and exhaust. Wide operating temperature range from -5 °C to 50 °C.
Compatible with nylon, soft nylon, and polyurethane tubing. Bracket mounting for flexible installation options. Designed for use with compressed air in industrial settings.
This SMC vacuum generator is a vital component in pneumatic and hydraulic tool applications within industrial tools and equipment categories. It supports efficient automation in electronics assembly, manufacturing, packaging, and material handling operations. Explore more industrial pneumatic components and Vacuum Generators at EnvMart for your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum vacuum pressure of this model is -90 kPa, which enables strong and reliable suction for part pick-up.
This vacuum generator maintains a flow rate of 26 liters per minute (ANR), supporting efficient throughput in various applications.
The vacuum port is compatible with nylon, soft nylon, and polyurethane tubing, allowing for flexibility in tubing selection.
It features a one-touch pneumatic vacuum connection sized Ø6 and input and exhaust connections sized Ø8 for simplified installation.
This vacuum generator operates effectively within a temperature range of -5 °C to 50 °C for both ambient and medium conditions.
The device includes bracket mounting options, providing flexibility for installation in various setups.
It complies with ISO8573-1:2010, RoHS, and JIS B8392-1:2012 standards, ensuring quality and safety in industrial applications.
It is suitable for applications such as pick-and-place in electronics, small-part handling, and packaging transfer.
The one-touch connections for both the vacuum and the supply/exhaust lines simplify the installation and tubing layout.
Yes, an optional silencer is available for this vacuum generator, allowing for quieter operation in specific environments.
This vacuum generator requires compressed air for operation, making it suitable for various industrial environments.
The country of origin for this vacuum generator is Japan.
