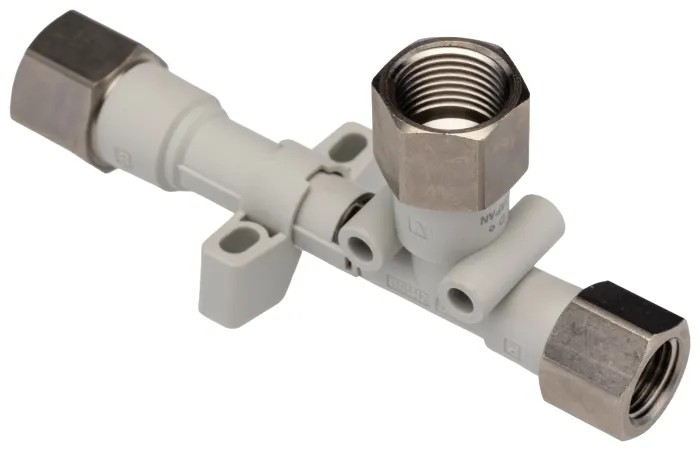

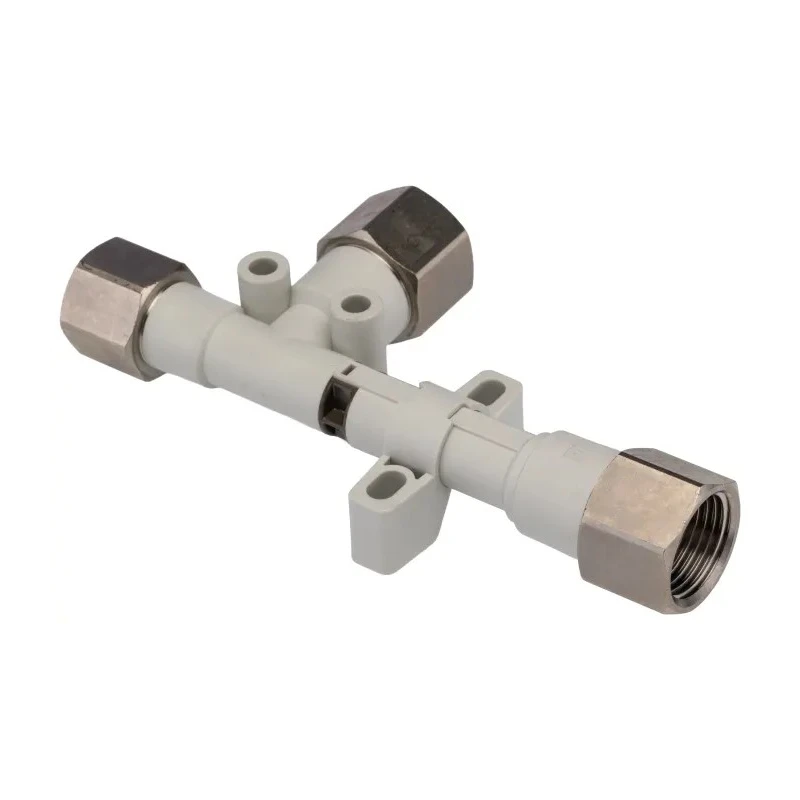

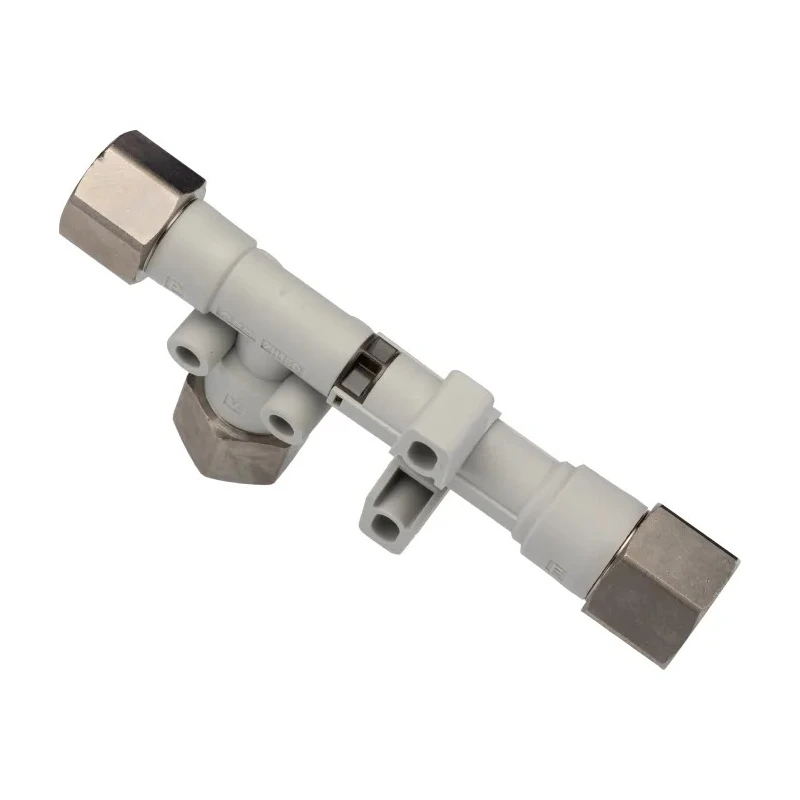

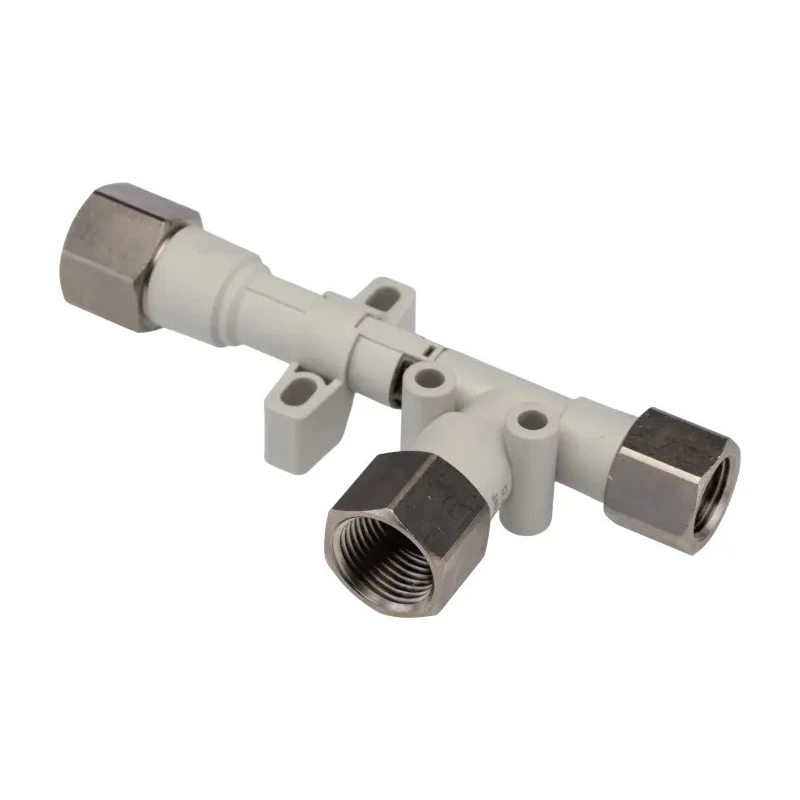

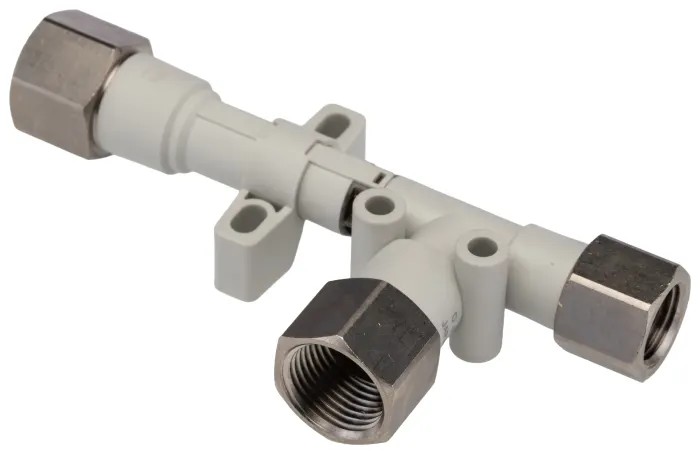

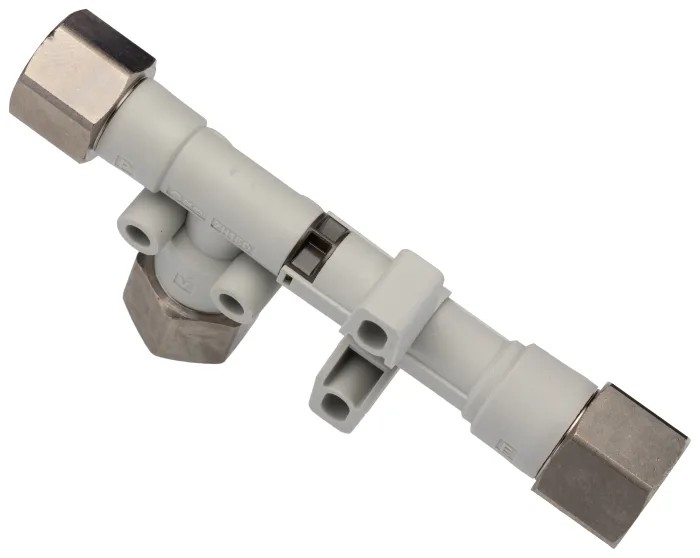

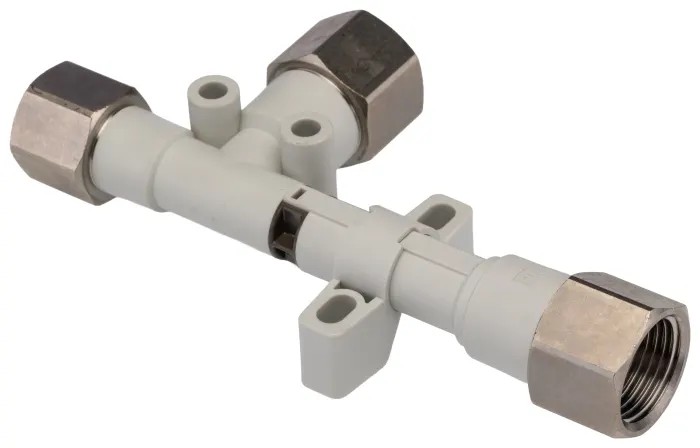

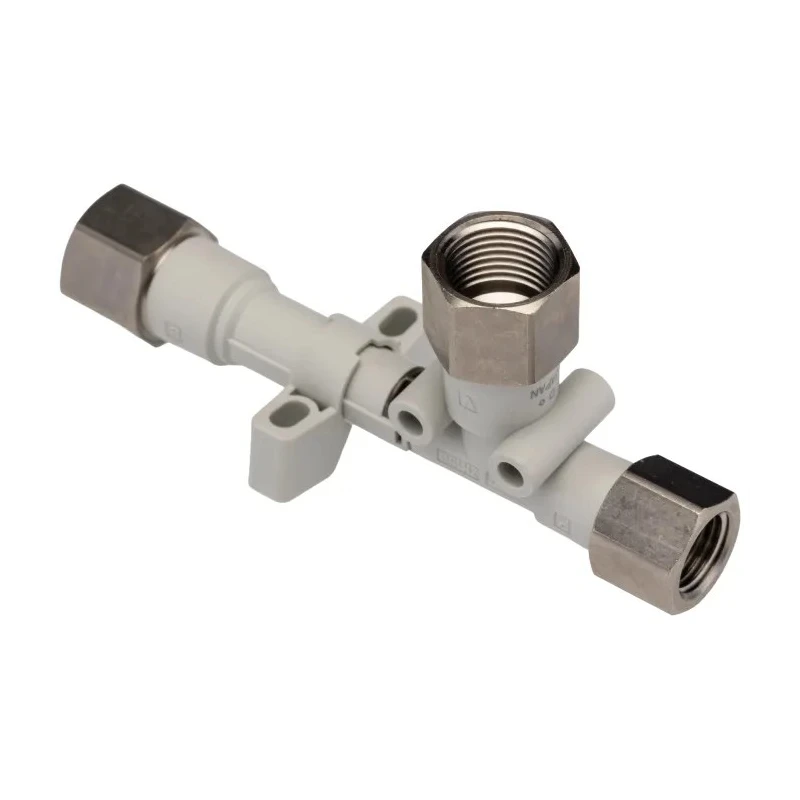

SMC Compact Vacuum Generator with 1.5mm Nozzle Diameter ZH15DSA-02-03-03, Pneumatic Suction, Screw-in Ports, Japan

SMC ZH15DSA-02-03-03 Vacuum Generator is a compact pneumatic suction device utilizing a 1.5mm nozzle diameter designed for precise vacuum generation in industrial automation and handling processes. This vacuum generator operates by expelling compressed air through a nozzle to create a vacuum, providing effective suction suitable for various factory automation applications.

The device incorporates screw-in pneumatic connections with an R1/4 supply port and R3/8 vacuum and exhaust ports, enabling secure and standard Rc/G threaded fittings for simplified piping setup. The maximum vacuum of -90 kPa ensures reliable handling for pick-and-place tasks, while an air flow rate of 58 liters per minute (ANR) accommodates moderate throughput requirements.

Constructed for panel or box-style installations, the vacuum generator withstands typical factory temperature environments, operating from -5°C to 50°C for both the pressure medium and ambient air. It supports pneumatic tubing made from soft nylon, standard nylon, and polyurethane, facilitating easy tubing routing and flexible system integration.

Common industrial applications include usage in electronic assembly lines for pick-and-place functions, vacuum transfer in mechanical component handling, and pneumatic grippers utilized in automated packaging systems. This vacuum generator also suits small-scale part lifting operations in electrical panel fabrication and other precise handling needs.

Mounting options offer supply with brackets and without silencers, allowing fixed installation configurations and choice of exhaust treatment to match operational requirements. The RoHS-compliant unit is manufactured in Japan, ensuring adherence to international standards for quality and environmental safety.

This compact vacuum generator uses a 1.5mm diameter nozzle for focused suction performance. Screw-in supply and vacuum ports allow easy and secure pneumatic connections. Maximum vacuum of -90 kPa provides strong pick-and-place vacuum holding.

Air flow rate of 58 liters per minute supports moderate throughput handling. Compatible with soft nylon and polyurethane tubing for versatile use. Designed for panel or box-style installation in automated systems. Operates in ambient temperatures ranging from -5°C to 50°C.

Ideal for use in electronic assembly and mechanical component handling. Can be mounted with brackets and used without silencers for fixed installations. Explore more precision pneumatic Vacuum Generators and related components at EnvMart to support your industrial automation and manufacturing needs.
