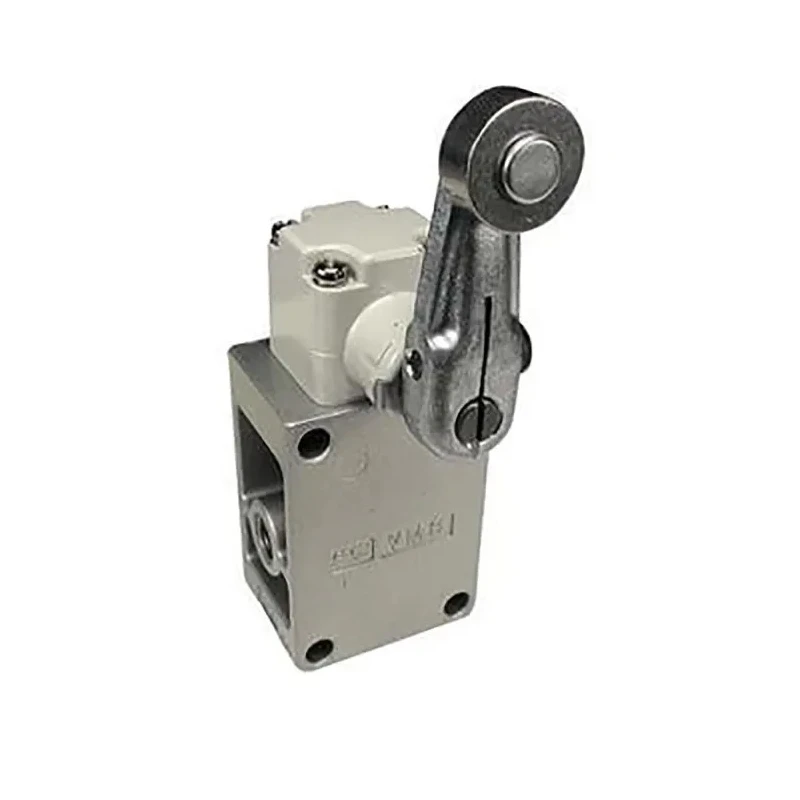

SMC Rod Lever Pneumatic Manual Control Valve, , VM800 Series, Rc 1/8, Aluminium Alloy Body, 1 MPa, III B

Free Delivery in India | Lowest Global Shipping Charges

SMC Rod Lever Pneumatic Manual Control Valve, , VM800 Series, Rc 1/8, Aluminium Alloy Body, 1 MPa, III B



Category Pneumatic Manual Control Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Height	57mm
Length	40mm
Model	VM800
Operating Pressure	-100kPa to 1.0MPa
Width	30mm
Series	VM800
Number Of Ports	3
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Number of Positions	2
Port Size	Rc 1/8
Minimum Operating Temperature	-5°C
Fluid	air
Control Mechanism	Rod Lever
Connection Thread Standard	Rc
Valve Function	3/2
Ambient and fluid temperature	-5° to 60°C (no freezing)
Effective area (Cv)	6mm 2 (0.33)
Port size (nominal size)	Rc(PT) 1/8 (6A)

Key Features

Rod lever mechanism provides precise manual pneumatic control.
Supports operating pressures up to 1 MPa for industrial reliability.
Rc 1/8 port size and thread standard facilitate easy system integration.
Durable aluminium alloy body resists corrosion and wear.
Versatile 3/2 valve function enhances pneumatic flow switching.
Efficient flow with an effective area (Cv) of 0.33.
Wide operating pressure range from vacuum to high pressure.
Ambient and fluid temperature tolerance from -5°C to 60°C.

Product Description

The SMC VM830-01-14 rod lever pneumatic manual control valve, part of the VM800 Series, is expertly engineered for industrial and automation environments requiring reliable pneumatic actuation and flow control. With a rod lever mechanism, this valve enables precise manual operation, allowing users to modulate air flow and system pressure in manufacturing, process control, and machinery applications.

This manual control valve features an Rc 1/8 port size with compatible thread standards, promoting straightforward installation and integration into existing pneumatic lines and systems. The valve body is constructed from aluminium alloy, offering strength, reduced weight, and corrosion resistance to ensure long-term durability in demanding factory and plant settings.

Supporting a maximum operating pressure of 1 MPa, the VM830-01-14 is suitable for robust pneumatic applications, including assembly lines, equipment automation, and fluid power systems. Its 3/2 valve function allows for versatile switching between two flow paths or states, accommodating various pneumatic circuit configurations and providing reliable control for actuators and secondary valves.

The VM830-01-14 operates efficiently across a pressure range from -100 kPa (vacuum) up to 1.0 MPa, enabling compatibility with industrial air, vacuum, and compressed air sources. The effective area (Cv) of 0.33 offers optimal flow characteristics for balancing response time and air consumption. With an ambient and fluid temperature window from -5°C to 60°C, the valve performs reliably in control panels, machine enclosures, and field environments with varying climate conditions.

Its compact physical dimensions - 40mm in length, 30mm in width, and 57mm in height - help conserve panel and system space, making this valve an excellent choice for machine builders, pneumatic fitters, and maintenance engineers. The rod lever actuation provides tactile feedback and accurate positioning for precision tasks.

SMC VM830-01-14 finds application in pneumatic automation, manufacturing, robotic control, and fluid power management across sectors such as aerospace, automotive, pharmaceutical, packaging, and general industrial equipment.
