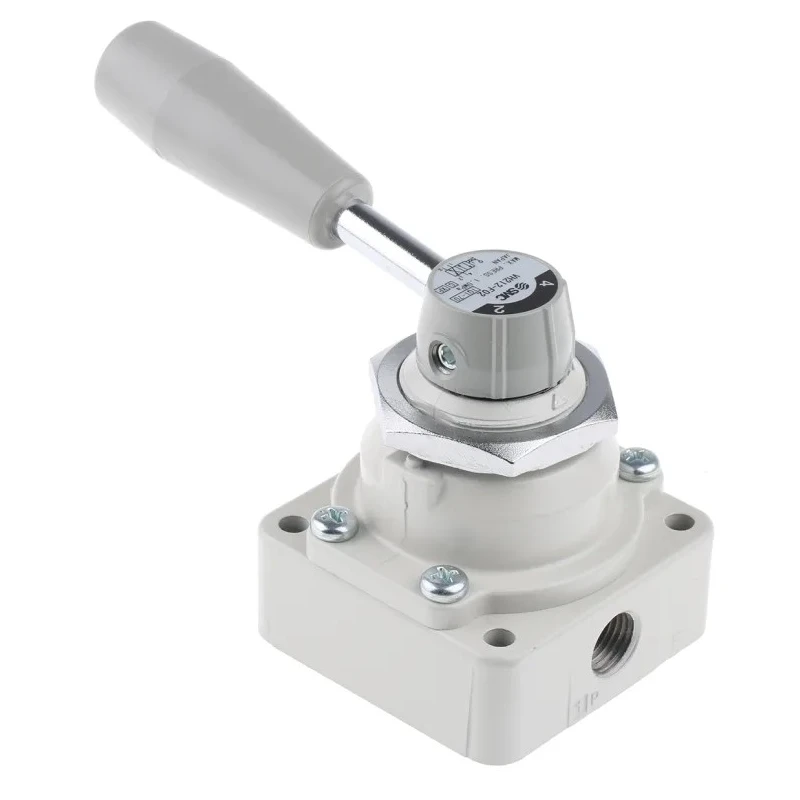

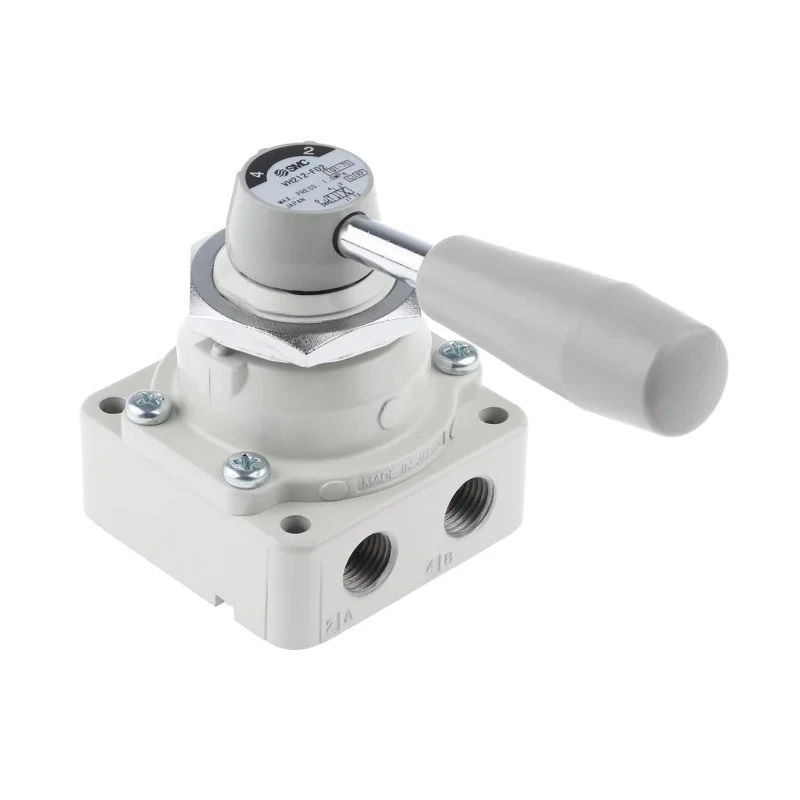

SMC Pneumatic Manual Control Valve Handle, VH Series, NPT G 1/4, 1 Mpa, Die Cast Aluminium VH212-F02

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Manual Control Valve Handle, VH Series, NPT G 1/4, 1 Mpa, Die Cast Aluminium VH212-F02



Category Pneumatic Manual Control Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Model	VH212-F02
Series	VH
Number Of Ports	4
Maximum Operating Temperature	+60°C
Thread Size	1/4 in
Number of Positions	3
Port Size	G 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	6000L/min
Control Mechanism	Handle
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	701-3258Brand: SMCManufacturers Part No.: VH212-F02Distrelec Article No.: 154-23-002
Connection Thread Standard	NPT
Valve Function	4/2

Key Features

Manual handle ensures accurate control and operation of pneumatic systems.
Designed for high-pressure applications up to 1 Mpa.
Port size G 1/4 with NPT connection thread for standard fittings.
Robust die cast aluminium body provides resistance to wear and corrosion.
Operates reliably in temperatures ranging from -5°C to +60°C.
Features 4 ports and 3 positions suitable for versatile pneumatic control.
Easy installation with bottom porting and panel mounting options.
Ideal for automation, robotics, air pressure regulation, and hydraulic manual intervention.

Product Description

SMC VH212-F02 Pneumatic Manual Control Valve Handle is part of the VH Series designed for industrial automation and pneumatic control applications. This manual valve features a 4/2 valve function with a 3-position handle mechanism for precise and reliable valve control. With a maximum operating pressure of 1 Mpa and a maximum flow rate of 6000 L/min, it supports a wide range of pneumatic system requirements.

The valve body is made from die cast aluminium, ensuring durability and corrosion resistance suitable for demanding industrial environments. It supports operation within a temperature range from -5°C to +60°C. The connection thread is NPT with a G 1/4 port size, compatible with standard pneumatic fittings.

This valve is widely used for controlling pneumatic cylinders, robotics precision movement, air pressure regulation in industrial machinery, and applications requiring manual valve intervention. The ergonomic handle facilitates fast and accurate shifting between control states, essential in automated systems for operational efficiency.

Manual valve handle offers precise control and operation. Die cast aluminium construction enhances durability and resistance to wear. Capable of withstanding maximum operating pressure of 1 Mpa. Operates reliably between -5°C and +60°C.

Bottom port and panel mounting options enable flexible installation. Suitable for pneumatic cylinder control, robotics, and hydraulic systems requiring manual operation. Port size G 1/4 with NPT thread for broad compatibility.

Valve function is 4/2 with 3 positions and 4 ports.

This pneumatic manual control valve is manufactured in Japan, ensuring high quality and precision engineering. It is ideal for applications in industrial automation, manufacturing, HVAC, and fluid power systems. Explore the full range of Pneumatic Manual Control Valves and related components for effective control solutions.
