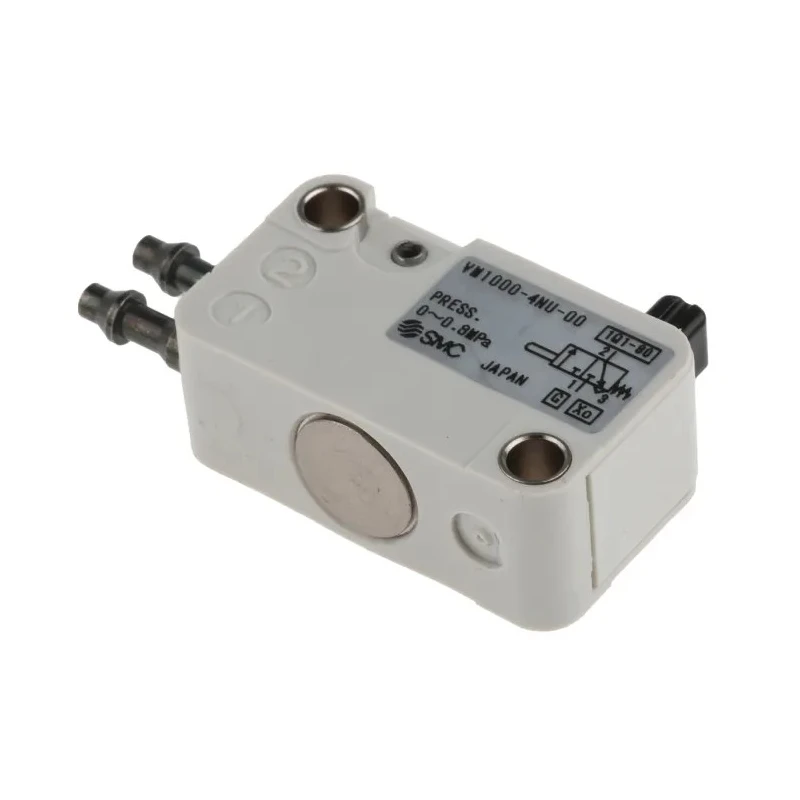

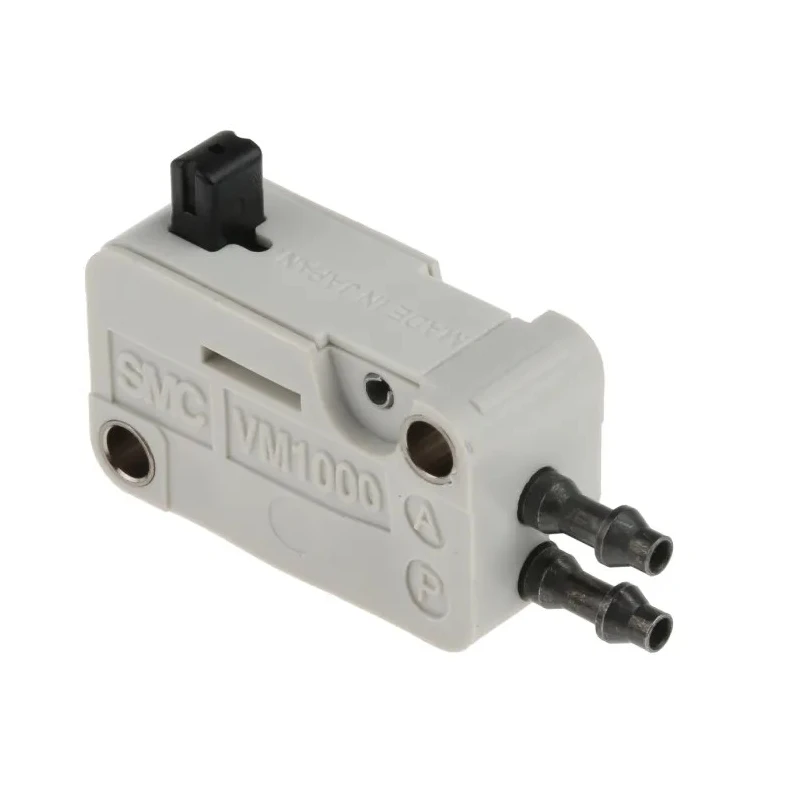

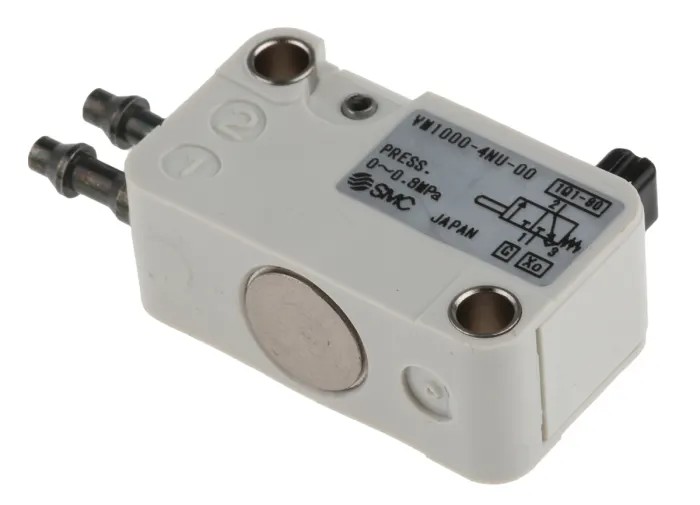

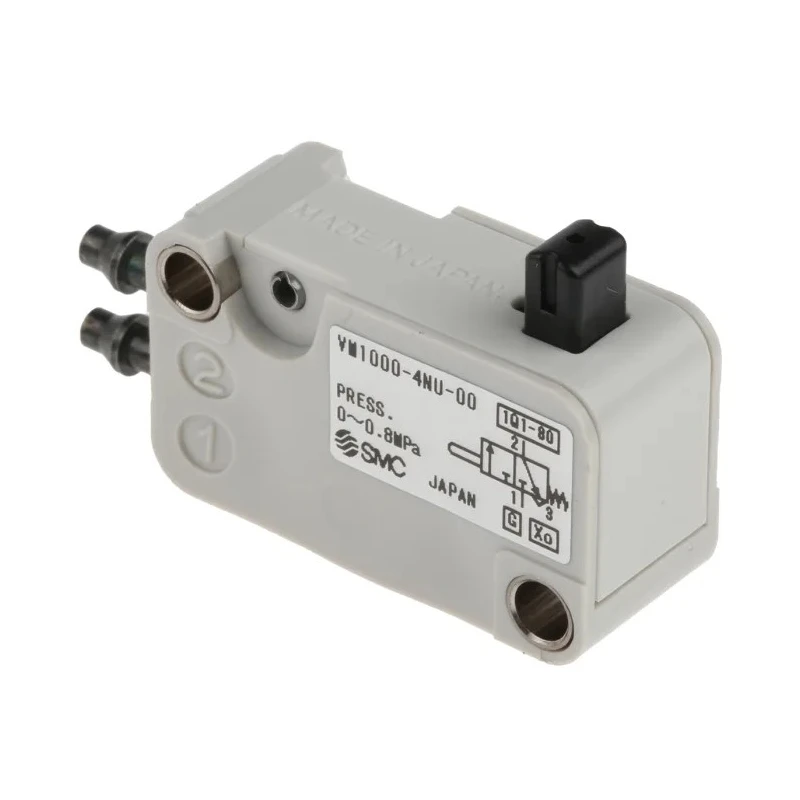

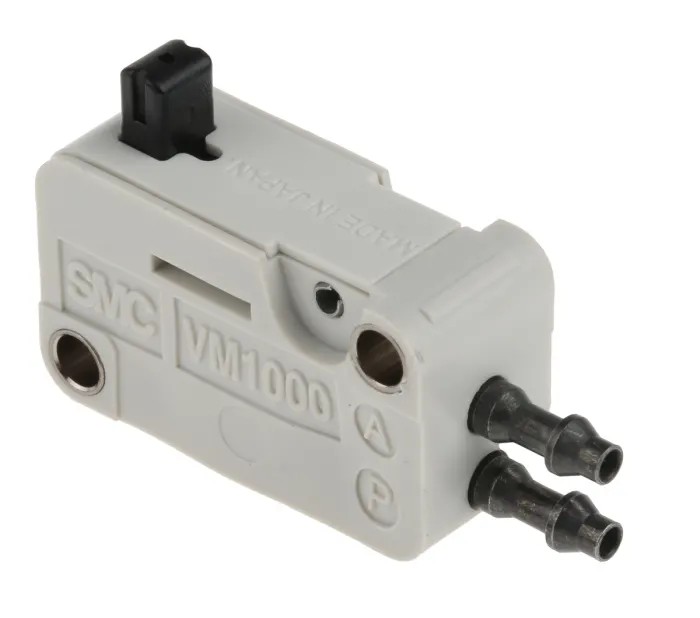

SMC Basic Mechanical Valve VM1000 Series, III B 0.8MPa 49.03NL/min 3/2 Side Port Polybutylene Terephthalate Body
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Polybutylene Terephthalate |
| Maximum Operating Pressure | 0.8 Mpa |
| Height | 36.1mm |
| Length | 10.3mm |
| Model | VM1000 |
| Width | 11mm |
| Series | VM1000 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +60°C |
| Thread Size | 2.5 mm |
| Port Type | Side |
| Minimum Operating Temperature | -5°C |
| Maximum Flow Rate | 49.03NL/min |
| Control Mechanism | Basic |

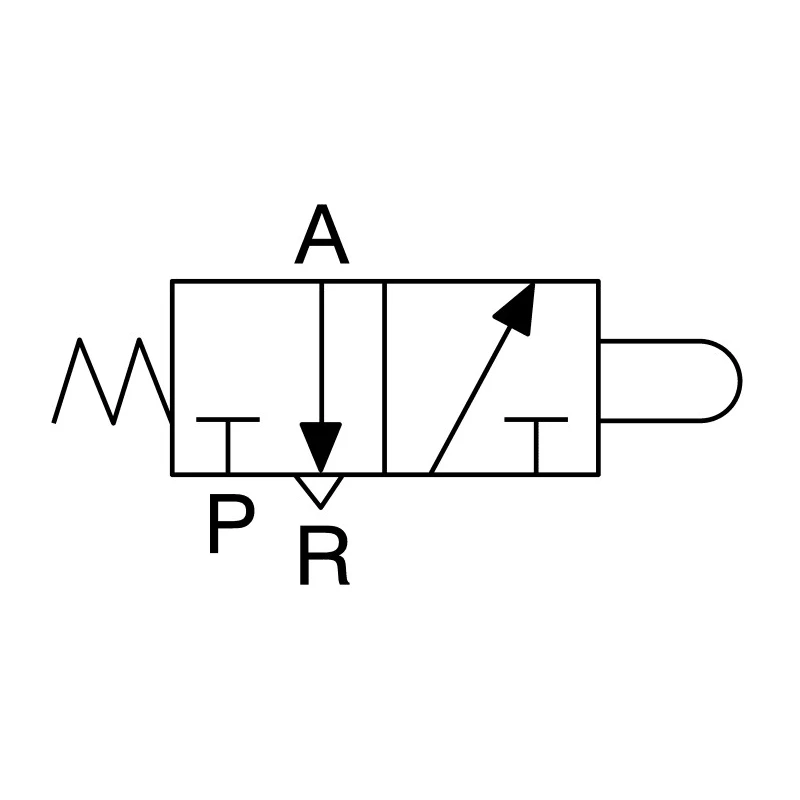

| Valve Function | 3/2 |
| Port Gender | Female |
| Control Button/Switch Colour | Red, Green, Black, Yellow |
| SMC Basic Pneumatic Manual Control Valve VM1000 Series, III BBrand | SMC |
Key Features
- Its polybutylene terephthalate body provides mechanical stability and durability.
- Suitable for low pressure pneumatic systems with operating temperature from -5°C to +60°C.
- The 3-port design allows straightforward directional control for actuators in confined spaces.

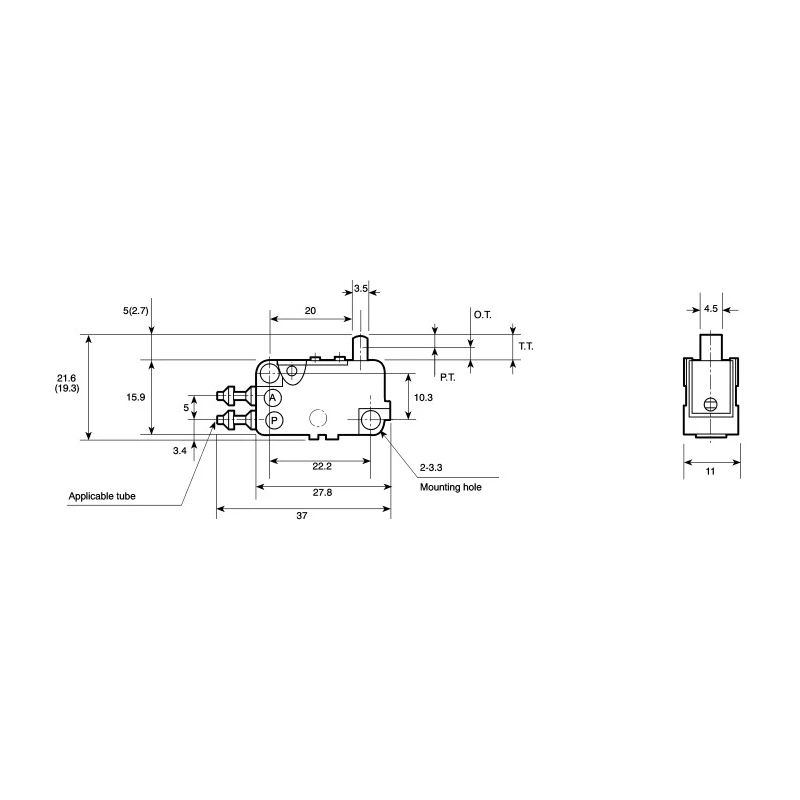

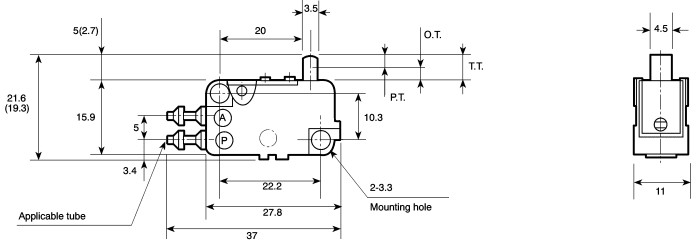

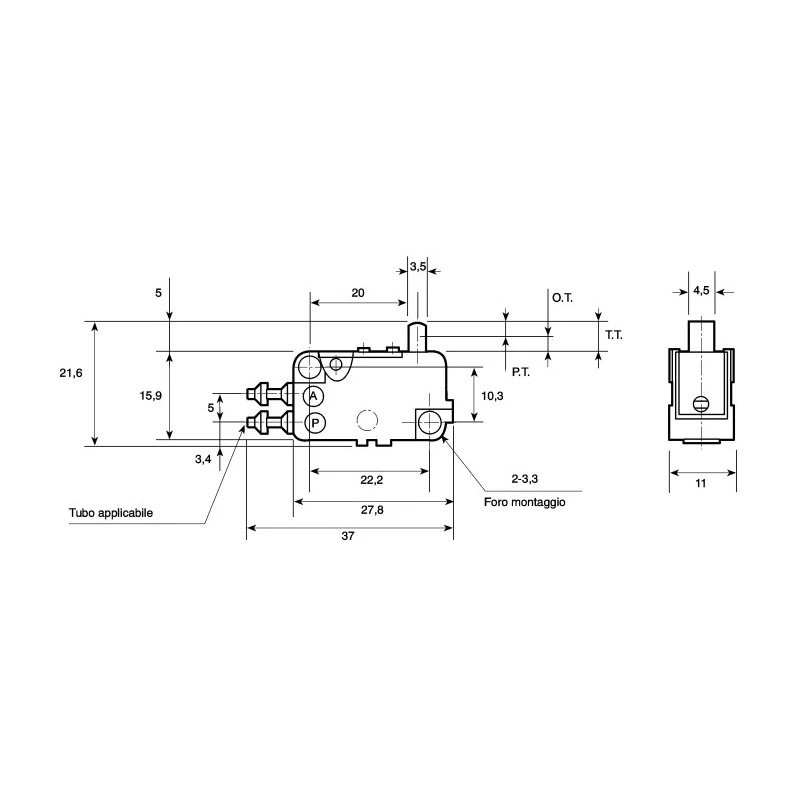

- Compact footprint with dimensions approximately 36.1mm height, 10.3mm length, and 11mm width optimizes space usage.
- No lubrication is required for reliable operation under normal circumstances.
- Thread size of 2.5mm enables connection to small-bore tubing.
- Ideal for compact valve islands, pilot control of cylinders, and pneumatic indicators with visual status feedback.
- Manufactured in Japan, ensuring quality and precision.
Product Description
SMC VM1000-4NU-00 Basic Mechanical Valve III B series is a manually operated 3/2 pneumatic valve designed for low-pressure air system control up to 0.8MPa and flow rates of 49.03NL/min.
The valve body is made from polybutylene terephthalate, chosen for its dimensional stability and mechanical strength within typical ambient temperature ranges of -5°C to +60°C. It supports selectable push-button colours - red, green, black, and yellow - for clear local actuation and status indication.
This valve's 3-port function offers straightforward directional control of pneumatic actuators. No lubrication is required for standard operation, though turbine oil No. 1 (ISO VG32) can be used if desired to extend service life. The thread size is 2.5mm, compatible with small bore pneumatic tubing.
Applications include pilot control of cylinders in low-pressure tooling, use with miniature pneumatic indicators for visual feedback, and cycle-counted pneumatic actuations in test rigs. It is especially suitable for valve islands and subassemblies in industrial manufacturing, laboratory, automation, and pneumatic system environments.
The valve features basic manual control with push-button actuation. Polybutylene terephthalate body offers mechanical durability and environmental resistance. Rated for maximum operating pressure of 0.8MPa and flow rate of 49.03NL/min.
Compact footprint with dimensions: Height 36.1mm, Length 10.3mm, Width 11mm. Low-temperature operation down to -5°C and maximum operating temperature up to +60°C. Multiple control button colours (red, green, black, yellow) available for operational clarity.
Thread size 2.5mm suitable for side-port pneumatic connections. No lubrication required under normal conditions; compatible with turbine oil No. 1 (ISO VG32) if lubrication is desired. Explore more pneumatic control valves and SMC products for your industrial automation needs on EnvMart.
Explore more products in our Pneumatic Manual Control Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.8 MPa.
This valve has a maximum flow rate of 49.03 NL/min.
The dimensions of this unit are approximately 36.1mm in height, 10.3mm in length, and 11mm in width.
It operates within a temperature range of -5°C to +60°C.
The body of this valve is made from polybutylene terephthalate, providing mechanical stability and durability.
This model features a basic manual control mechanism with push-button actuation.
The thread size for this valve is 2.5mm, suitable for small-bore tubing connections.
It is suitable for applications such as pilot control of cylinders, use with pneumatic indicators, and in valve islands for industrial automation.
No lubrication is required for normal operation, although turbine oil No. 1 (ISO VG32) can be used to extend service life if desired.
This model has a 3-port configuration with a side port type.
The control buttons are available in red, green, black, and yellow for clear operational indication.
This valve is manufactured in Japan, ensuring quality and precision.
