Norgren Button Mechanical Valve 304 Series, G G 1/8 Thread, III B Model 03041602

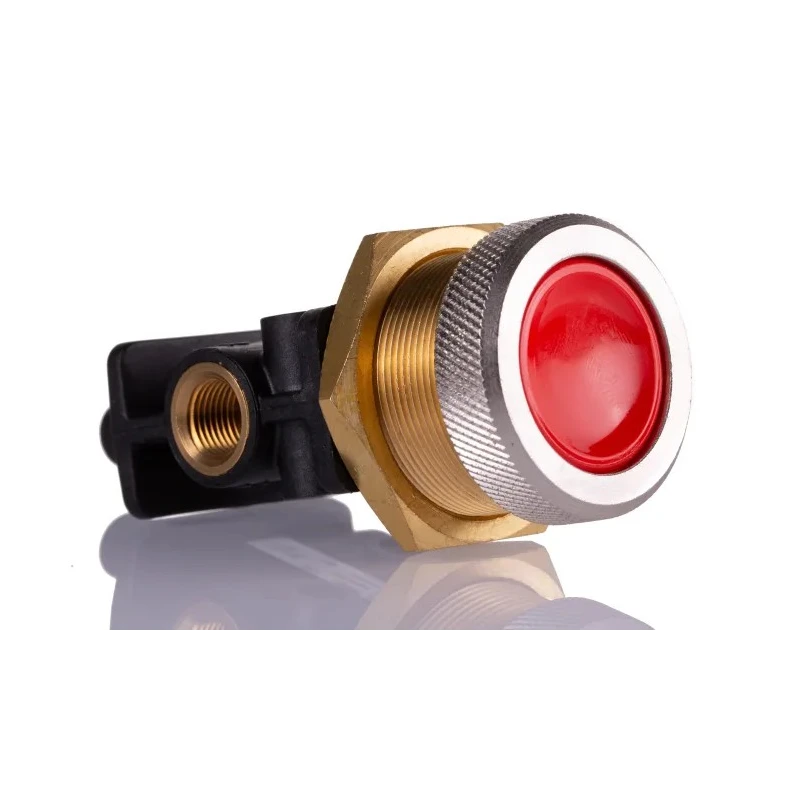

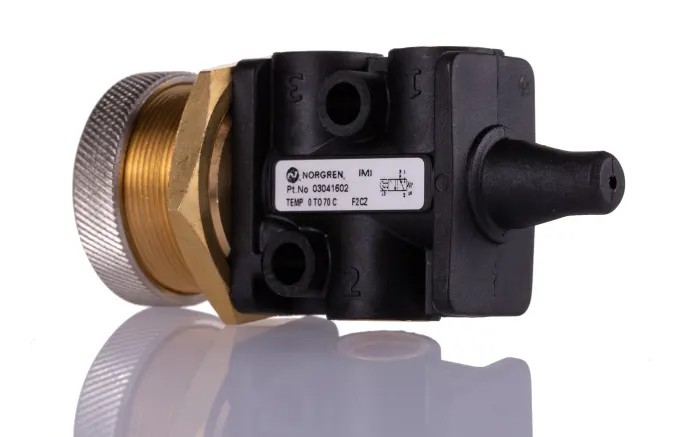

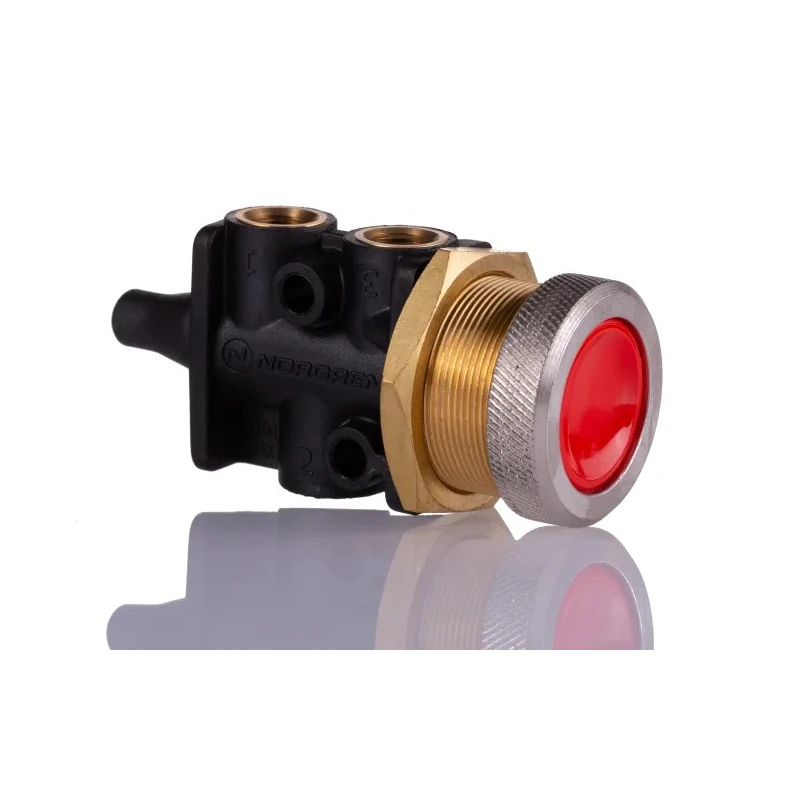

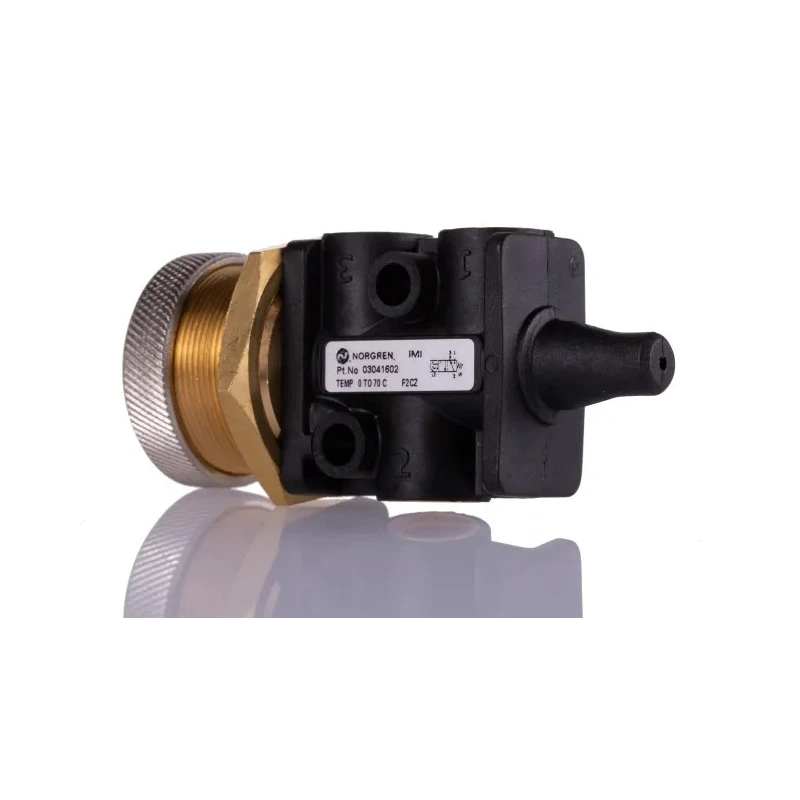

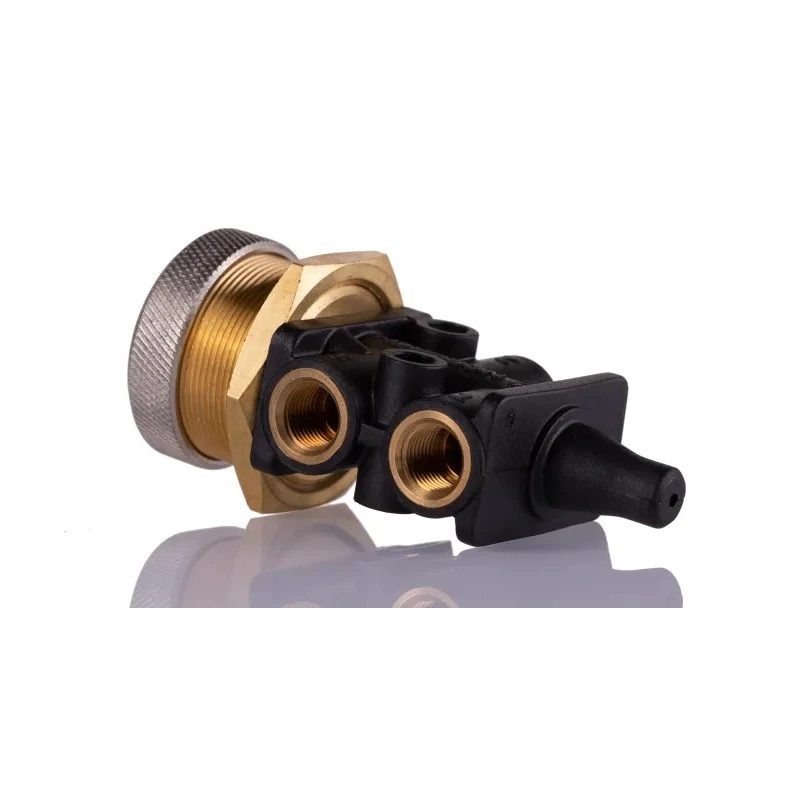

Name: Norgren Button Mechanical Valve 304 Series, G G 1/8 Thread, III B Model 03041602
Brand: NORGREN
SKU: 289220
Price: 156.73 USD
Availability: InStock



Category Pneumatic Manual Control Valves Brand NORGREN Condition New

Specifications

Country of Origin	Czech Republic
Brand	Norgren
Body Material	Polyamide
Maximum Operating Pressure	8 bar
Height	80mm
Model	03041602
Width	21mm
Series	304
Maximum Operating Temperature	50°C
Thread Size	1/8
Port Size	G 1/8
Minimum Operating Temperature	-5°C
Maximum Flow Rate	335L/min
Control Mechanism	Button
Connection Thread Standard	G
Valve Function	3/2

Key Features

The valve body is made of corrosion-resistant polyamide material for durability.
Operates at a maximum pressure of 8 bar with a flow rate up to 335 L/min.
Suitable for installation in tight spaces due to its compact size and G 1/8 connection.
Wide operating temperature range from -5°C to 50°C for versatile applications.
Lightweight design at approximately 110 grams enables easy handling and installation.
Button control mechanism provides simple and intuitive operation.
3-port, 2-position valve function facilitates efficient pneumatic control.
Ideal for use in rail transportation, water treatment, and laboratory equipment.

Product Description

Norgren 03041602 Button Mechanical Valve 304 Series is designed for precision pneumatic control in demanding industrial environments. This 3/2 valve with a button control mechanism ensures easy and reliable regulation of airflow in pneumatic systems. Its G 1/8 threaded port and polyamide body provide corrosion resistance and durability while maintaining a lightweight form factor, weighing approximately 110 grams.

The valve supports a maximum operating pressure of 8 bar and a maximum flow rate of 335 L/min, making it suitable for both low and high-pressure applications. It operates reliably within a temperature range of -5°C to 50°C, enabling use in diverse industrial and laboratory conditions. The compact dimensions of 80 mm height and 21 mm width allow installation in confined spaces.

The 3/2 valve configuration offers efficient pneumatic switching with three connection ports and two flow paths, facilitating swift flow control essential for productivity in automated systems. The corrosion and impact-resistant NBR seals prevent contamination ingress, enhancing valve longevity and performance in rugged environments.

Common applications include rail transportation systems, water treatment plants, and laboratory instrumentation, where precise and reliable pneumatic actuation is critical. Its button actuation and through-hole mounting style provide simple installation and ergonomic operation.

Choose the Norgren 03041602 Button Mechanical Valve for dependable pneumatic manual control with a robust build and optimal operating parameters. Corrosion-resistant polyamide body for durability. Lightweight and compact design.

Wide operating pressure range up to 8 bar and flow rate up to 335 L/min. Reliable operation between -5°C and 50°C. 3/2 valve with button control mechanism for intuitive use. NBR seals offer protection against dust and contaminants.

Suitable for rail transport, water treatment, and lab equipment. Explore more Pneumatic Manual Control Valves and accessories at EnvMart for high-quality industrial solutions.
