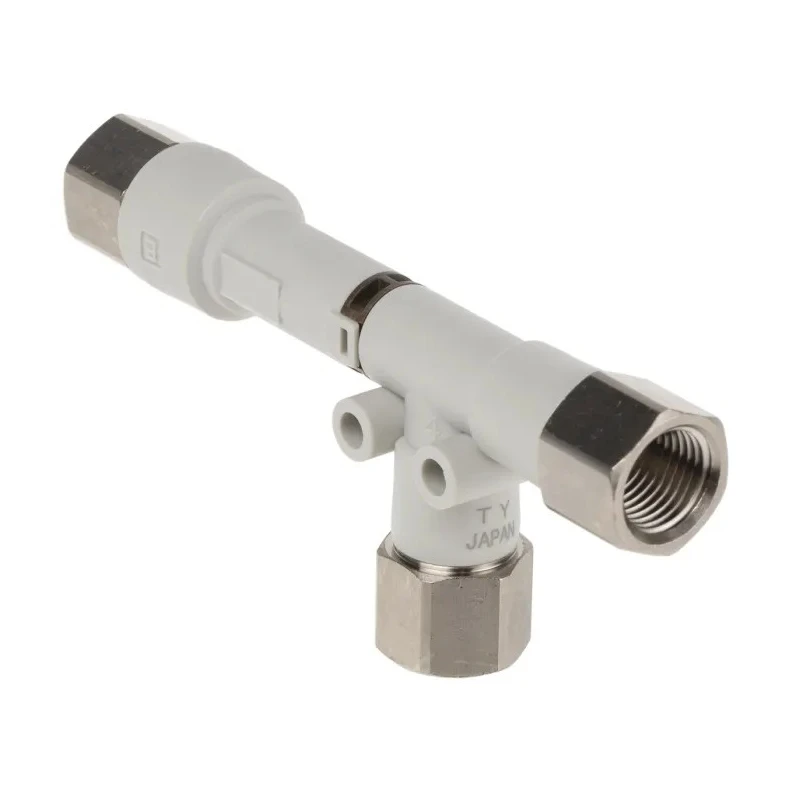

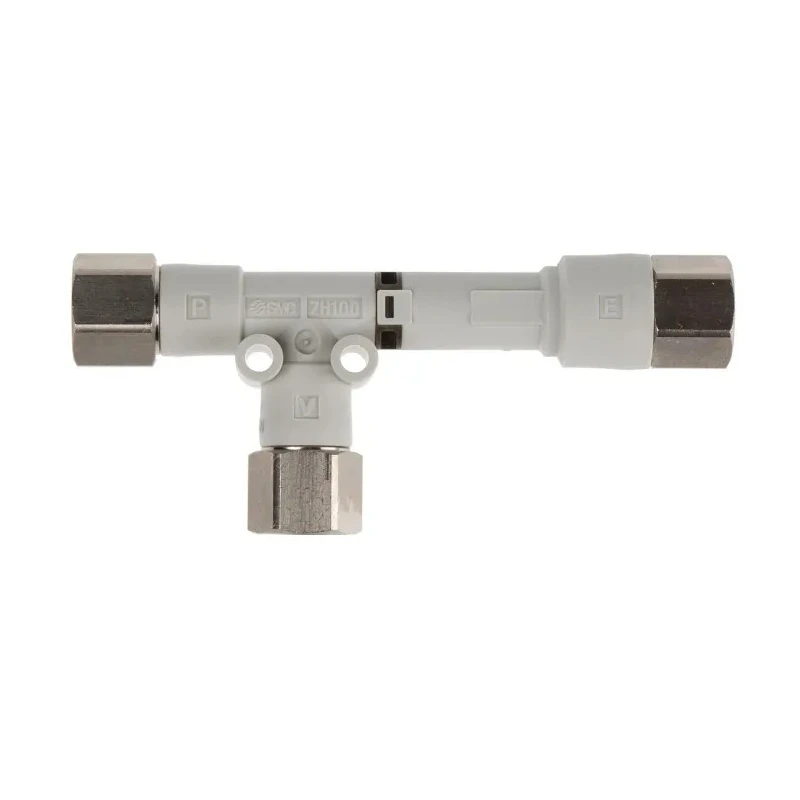

SMC Compact Pneumatic Vacuum Generator 1mm Nozzle Diameter, Max Vacuum -90 kPa, Flow Rate 26 l/min ZH10DSA-01-01-01
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZH10DSA-01-01-01 |
| Standards/Approvals | RoHS |
Key Features
- Equipped with a 1.0mm nozzle for focused suction performance.
- Generates a maximum vacuum of -90 kPa for effective component handling.
- Supports flow rate of 26 l/min (ANR) suitable for moderate throughput applications.
- Utilizes screw-in R1/8 pneumatic connections for secure fitting.
- Operates reliably within temperature ranges from -5°C to 50°C.
- Includes a mounting bracket; silencer not included in box-style configuration.
- Compatible with nylon, soft nylon, and polyurethane tubing materials.
- Ideal for pick-and-place of electronic components on assembly lines.
Product Description
SMC ZH10DSA-01-01-01 is a compact pneumatic vacuum generator with a 1mm nozzle diameter designed to provide focused suction performance for various automation tasks. Operating using compressed air, this device generates negative pressure suitable for effective component pick-up and transfer in industrial environments.
The vacuum generator features a maximum vacuum of -90 kPa and a flow rate of 26 l/min (ANR), supporting moderate throughput tasks commonly found in electronic assembly lines and small-part handling processes.
It accepts screw-in R1/8 pneumatic connections, facilitating secure installation with Rc/G thread fittings. The device operates within a temperature range of -5°C to 50°C, making it suitable for typical factory conditions.

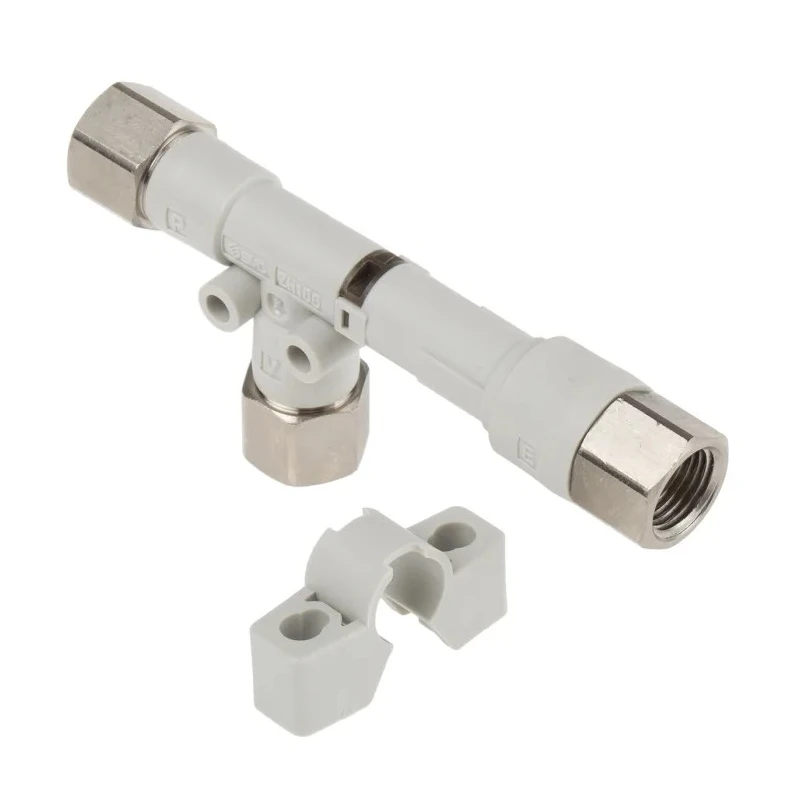

Supplied with a mounting bracket, the box-style ejector design does not include a silencer; however, additional accessories may be selected according to assembly requirements. The vacuum generator is compatible with nylon, soft nylon, and polyurethane tubing materials matching the one-touch and screw-in interface options.
Typical industrial applications include pick-and-place operations on electronic components, vacuum handling in automated feeders, end-of-arm tooling on robotic systems, and pneumatic conveyor vacuum transfer.
Equipped with a 1.0mm nozzle for focused suction performance. Generates a maximum vacuum of -90 kPa for effective component handling. Supports flow rate of 26 l/min (ANR) suitable for moderate throughput applications. Utilizes screw-in R1/8 pneumatic connections for secure fitting.
Operates reliably within temperature ranges from -5°C to 50°C. Includes a mounting bracket; silencer not included in box-style configuration. Compatible with nylon, soft nylon, and polyurethane tubing materials. Ideal for pick-and-place of electronic components on assembly lines.
Suitable for vacuum handling with small-part automated feeders and robotic pick systems. Supports vacuum transfer in pneumatic conveyor setups.
This SMC vacuum generator provides reliable and efficient pneumatic vacuum solutions for industrial automation, laboratory applications, manufacturing lines, and pneumatic conveying systems. Explore related Vacuum Generators on EnvMart for comprehensive fluid power and pneumatic tool needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This vacuum generator produces a maximum vacuum of -90 kPa, making it suitable for effective component handling in various applications.
It supports a flow rate of 26 l/min (ANR), which is appropriate for moderate throughput applications.
The unit is equipped with a 1.0mm nozzle diameter, designed for focused suction performance.
It utilizes screw-in R1/8 pneumatic connections for secure fitting with Rc/G thread fittings.
This model operates reliably within a temperature range of -5°C to 50°C, suitable for typical factory conditions.
It is compatible with nylon, soft nylon, and polyurethane tubing materials, allowing for various installation options.
The vacuum generator includes a mounting bracket; however, a silencer is not included in the box-style configuration.
Typical applications include pick-and-place operations on electronic components, vacuum handling in automated feeders, and pneumatic conveyor vacuum transfer.
This model complies with RoHS standards, ensuring it meets specific environmental and safety regulations.
The SMC Compact Pneumatic Vacuum Generator is manufactured in Japan.
The model number for this vacuum generator is ZH10DSA-01-01-01, which identifies its specifications and features.
This unit features a box-style ejector design, which is compact and efficient for various automation tasks.
