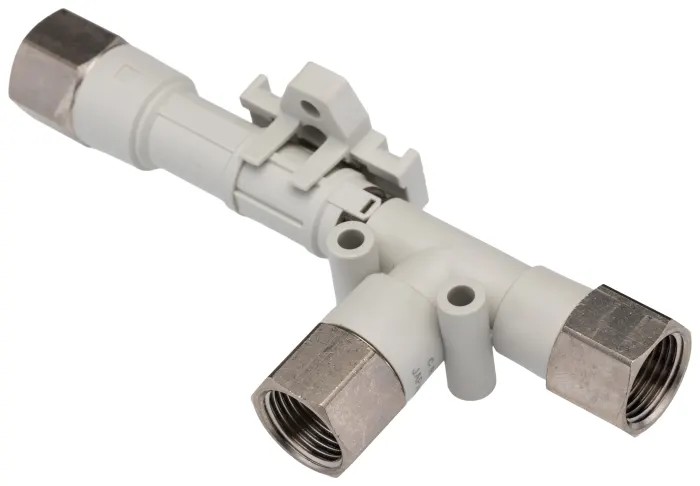

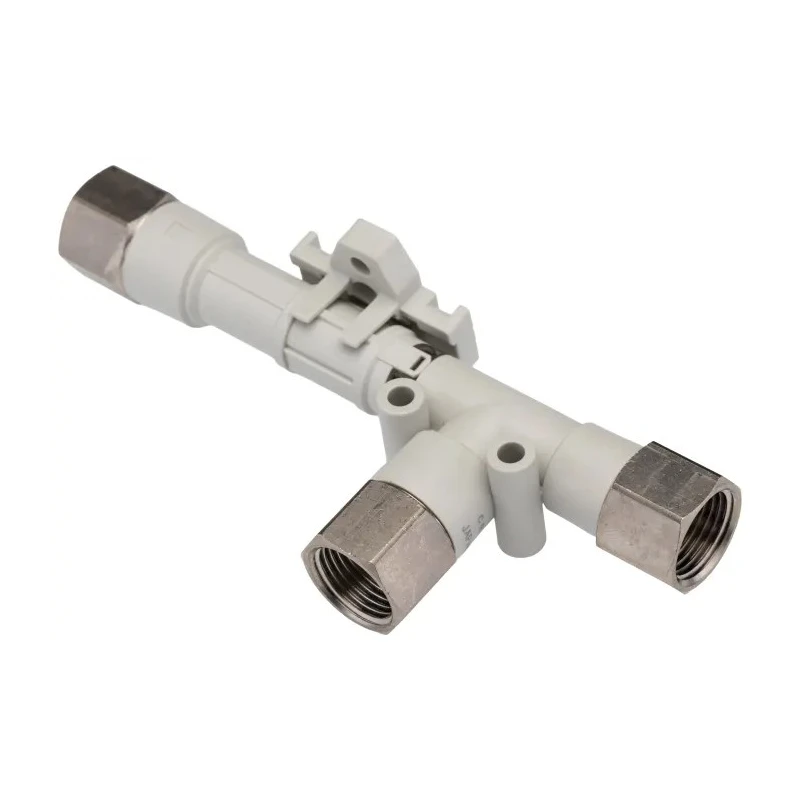

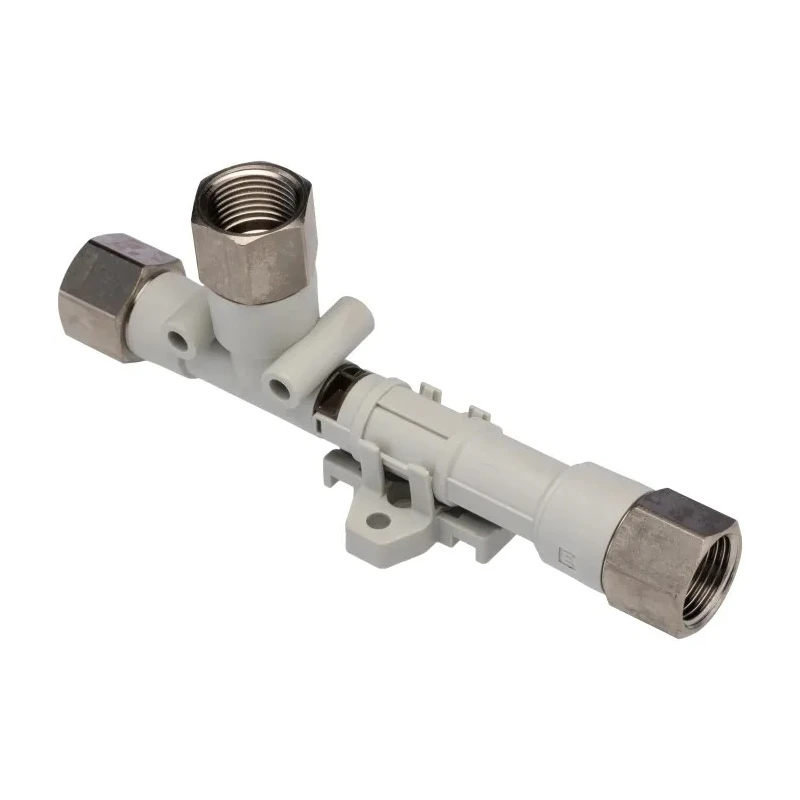

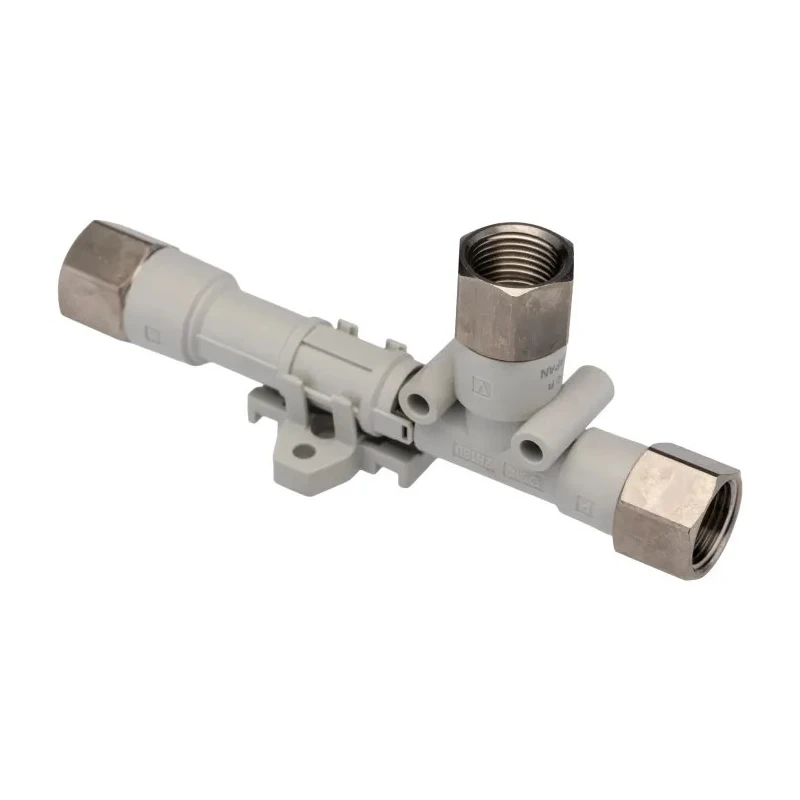

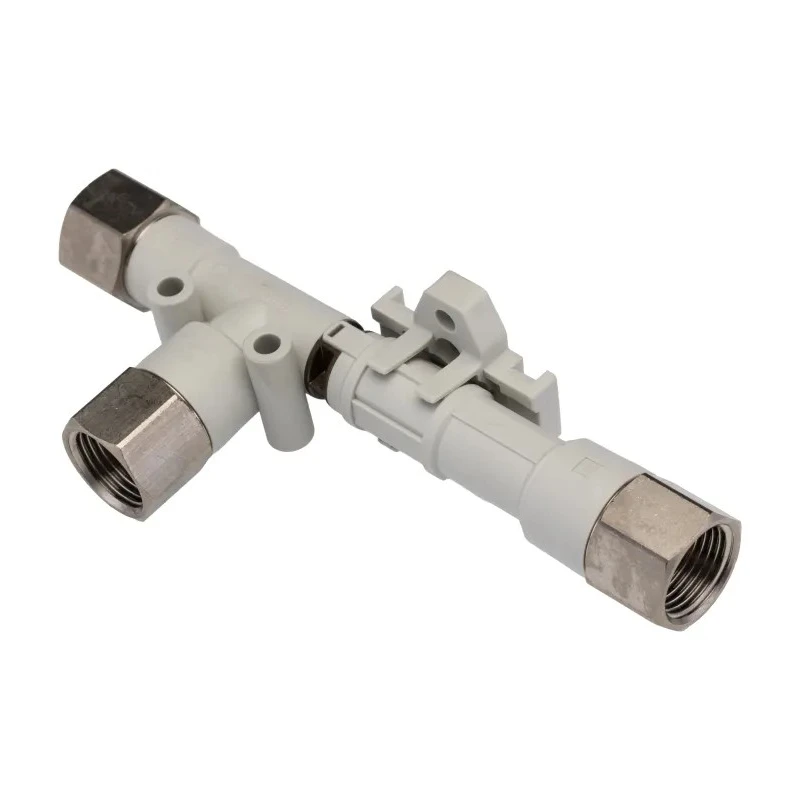

SMC Vacuum Generator, 1.8mm Nozzle Diameter, Screw-in R3/8 Pneumatic Connections, Compact Body-Ported ZH18DSA-03-03-03

SMC ZH18DSA-03-03-03 Vacuum Generator is a compact, body-ported pneumatic ejector designed to convert compressed air into a vacuum source for pick-and-place and handling operations within automated systems. Featuring a 1.8mm nozzle diameter, it effectively generates suction suitable for light-duty handling tasks.

The unit supports a maximum vacuum level of −90 kPa, enabling reliable gripping of objects during industrial automation processes. It provides a flow rate of 76 l/min (ANR), making it capable of moderate throughput applications across various manufacturing lines.

Equipped with screw-in R3/8 pneumatic supply, vacuum, and exhaust ports, the vacuum generator simplifies integration with existing pneumatic piping systems. Installation flexibility is enhanced by compatibility with soft nylon, standard nylon, and polyurethane tubing for vacuum lines.

Designed for operation within ambient and pressure-medium temperatures ranging from -5°C to 50°C, it maintains vacuum integrity and performance in typical industrial conditions. The product is supplied with a mounting bracket; silencers are not included for this box-style configuration.

Applications include conveyor-mounted pick-and-place stations, vacuum lifters for small electronic assemblies, grippers for component handling in mechanical assembly, and material transfer in lightweight packaging operations.

The 1.8mm nozzle delivers effective suction ideal for light-duty handling. Maximum vacuum of −90 kPa enables reliable object pick-up performance. Flow rate of 76 l/min (ANR) supports moderate throughput applications. Screw-in R3/8 pneumatic ports allow easy integration into existing pneumatic lines.

Compatible with soft nylon, standard nylon, and polyurethane tubing for vacuum lines. Operates effectively within ambient temperature range of -5°C to 50°C. Supplied with a mounting bracket; silencers excluded for box-style design.

This vacuum generator is a reliable component for fluid power and tools systems used in industrial automation, laboratory settings, manufacturing, and packaging. It ensures efficient vacuum generation for lightweight tasks with simplicity and flexibility.
