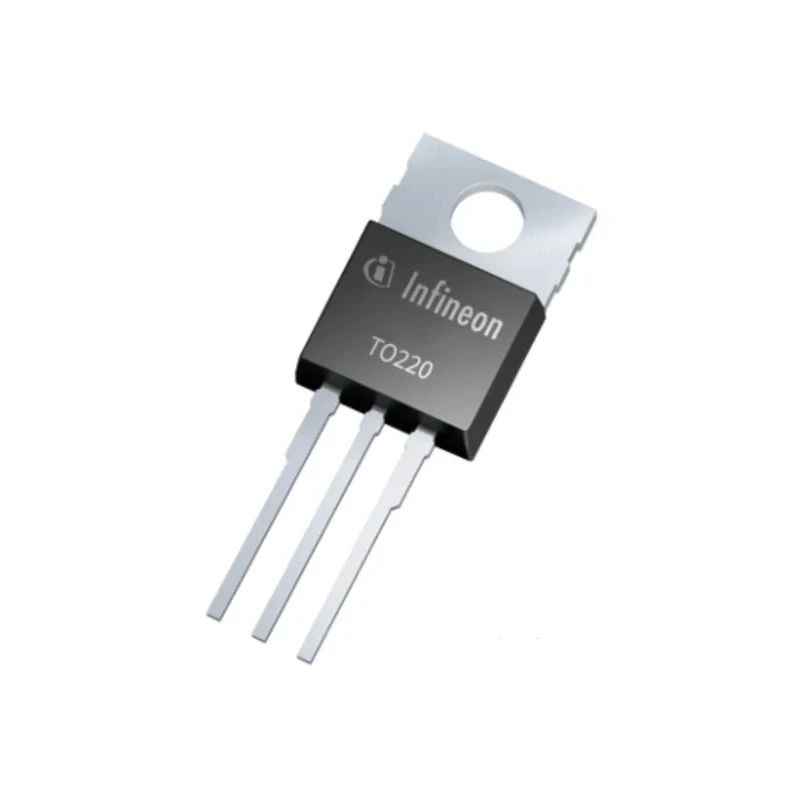

Infineon Type N-Channel IGBT 74A 650V 3-Pin TO-220 Through Hole IGP40N65H5XKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 4.57mm |
| Length | 29.95mm |
| Model | IGP40N65H5XKSA1 |
| Width | 10.36mm |
| Mount Type | Through Hole |
| Series | TrenchStop |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 74A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.65V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 250W |
| Maximum Gate Emitter Voltage VGEO | ±30 V |
Key Features
- Maximum continuous collector current of 74A for robust performance.
- Rated for maximum collector-emitter voltage of 650V.
- Comes in a TO-220 package with through-hole mounting for easy integration.
- Features low gate charge and reduced switching losses for efficient operation.
- Suitable for high-speed switching and industrial applications.
- Can operate in temperatures ranging from -40°C to 175°C.
- Includes a 3-pin configuration for straightforward PCB design.
Product Description
Infineon IGP40N65H5XKSA1 Type N-Channel IGBT is engineered to deliver high-speed switching and outstanding power handling capabilities in demanding industrial and electronic systems. With a maximum continuous collector current of 74A and a maximum collector-emitter voltage rating of 650V, this IGBT is ideal for applications requiring robust performance and efficiency. Designed in a TO-220 package with through-hole mounting, it facilitates easy installation and reliable mechanical integration in power electronics assemblies.
Built on Infineon’s fifth-generation TrenchStop technology, the device offers low switching losses and low gate charge, resulting in high efficiency and minimal electromagnetic interference. The 3-pin configuration simplifies circuit design and enhances compatibility with standard PCB footprints. Operating reliably across a wide temperature range from -40°C up to 175°C, this IGBT is suited for usage in industrial automation, power supplies, motor drives, and renewable energy systems.
Maximum continuous collector current of 74A for robust handling of heavy loads. High collector-emitter voltage of 650V supports demanding power circuit requirements. TO-220 package ensures secure, through-hole mounting. Low switching losses increase overall energy efficiency and reliability.
Wide operating temperature range suitable for challenging environments. 3-pin configuration allows flexible usage in varied circuit layouts.
Industrial applications include motor control, inverters, power conversion for renewable energy, UPS systems, and other high-current switching domains. The Infineon IGP40N65H5XKSA1 is recognized for its improved reliability and operational efficiency, making it a preferred option for engineers developing advanced electronic and industrial platforms.
Explore more Infineon IGBT Modules and discover leading-edge semiconductor solutions for electronic, industrial, and laboratory projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this IGBT is 74A, allowing it to handle heavy loads effectively.
This model has a maximum collector-emitter voltage rating of 650V, making it suitable for demanding power circuit requirements.
It can operate in temperatures ranging from -40°C to 175°C, allowing for reliable performance in challenging environments.
This IGBT is housed in a TO-220 package, which is designed for through-hole mounting to facilitate easy integration.
The IGP40N65H5XKSA1 features a 3-pin configuration, simplifying circuit design and enhancing compatibility with standard PCB layouts.
The maximum power dissipation for this IGBT is 250W, which helps in managing thermal performance during operation.
The maximum gate-emitter voltage rating for this IGBT is ±30 V, which is critical for ensuring safe operation in circuits.
It is built on Infineon’s fifth-generation TrenchStop technology, which contributes to low switching losses and efficient operation.
This IGBT is suitable for applications such as motor control, inverters, power conversion for renewable energy, and UPS systems.
The maximum collector-emitter saturation voltage for this model is 1.65V, which is important for minimizing power losses.
The dimensions of the IGP40N65H5XKSA1 are 29.95mm in length, 10.36mm in width, and 4.57mm in height.
The country of origin for this IGBT is India, indicating its manufacturing location.
