Semikron Danfoss N-Channel IGBT Module 260 A 1700 V 7-Pin SEMITRANS Panel SKM200GB176D

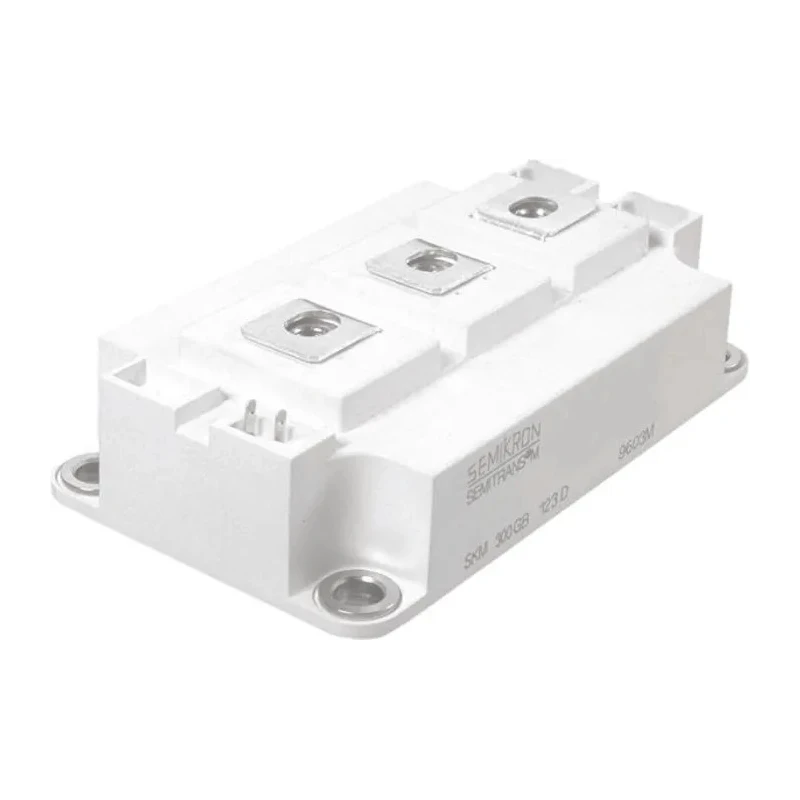

Semikron Danfoss SKM200GB176D is a dual IGBT module featuring N-channel type transistors designed for power electronics applications. The device supports a maximum continuous collector current of 260 A and a maximum collector emitter voltage of 1700 V, making it suitable for demanding industrial power switching tasks.

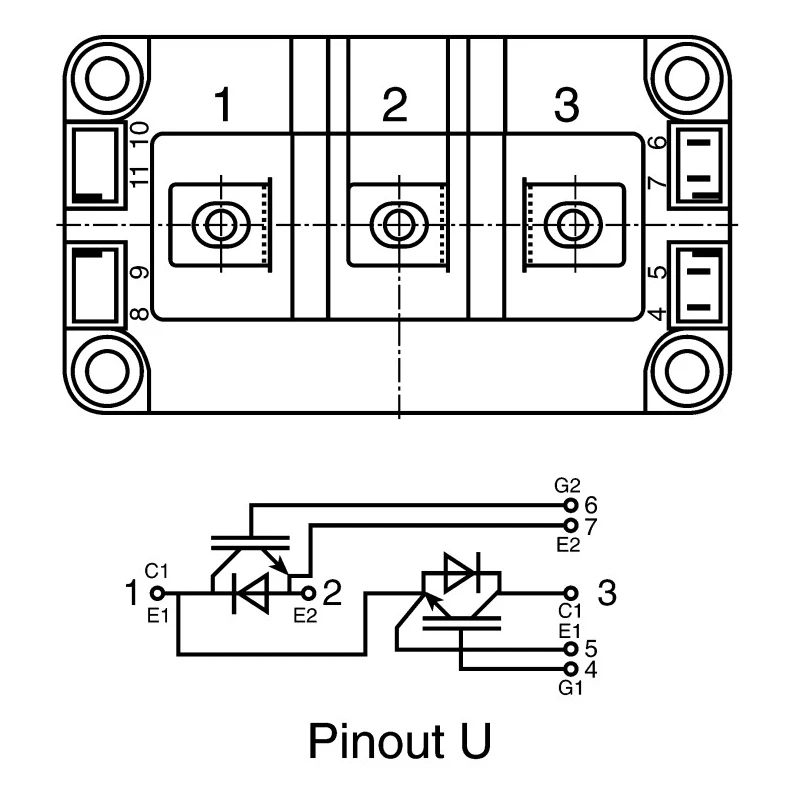

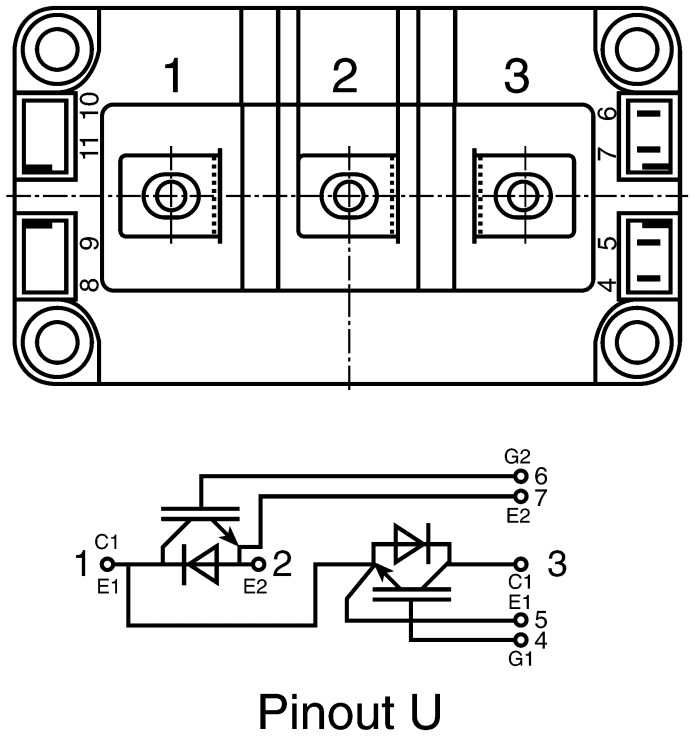

This module utilizes a compact SEMITOP® package optimized for frequencies up to 12 kHz, integrating two series-connected (half bridge) IGBT devices. The insulated copper baseplate with Direct Bonded Copper technology enhances thermal management for robust operation.

Operating temperature range extends from -40°C to 150°C, ensuring suitability for diverse environments including industrial automation and power conversion systems. The maximum gate emitter voltage is rated at 20 V, while the collector emitter saturation voltage of 2.45 V aids in efficient switching.

Dimensionally, the module measures 106.4 mm in length, 61.4 mm in width, and 30 mm in height, facilitating easy installation on panel mounts. The 7-pin SEMITRANS package type supports reliable electrical connections.

Applications include AC inverter motor drives, uninterruptible power supplies (UPS), and other power electronics requiring efficient and reliable switching modules. The compact design and advanced materials provide enhanced performance across industrial, manufacturing, and energy sectors.

The module includes two series-connected IGBT transistors suitable for high power applications. Compact SEMITOP® package allows switching frequencies up to 12 kHz. Features an insulated copper baseplate with Direct Bonded Copper technology for efficient heat dissipation.

Operates across a temperature range from -40°C to 150°C ensuring reliable performance in harsh environments. Designed for AC inverter motor drives, uninterruptible power supplies, and various power switching applications.

Maximum gate emitter voltage rating is 20 V providing safe gate operation. Collector emitter saturation voltage is a low 2.45 V for improved efficiency. Precise dimensions of 106.4 mm length, 61.4 mm width, and 30 mm height facilitate panel mounting integration.

Explore more IGBT Modules and semiconductor solutions at EnvMart to optimize your industrial electronic designs.
