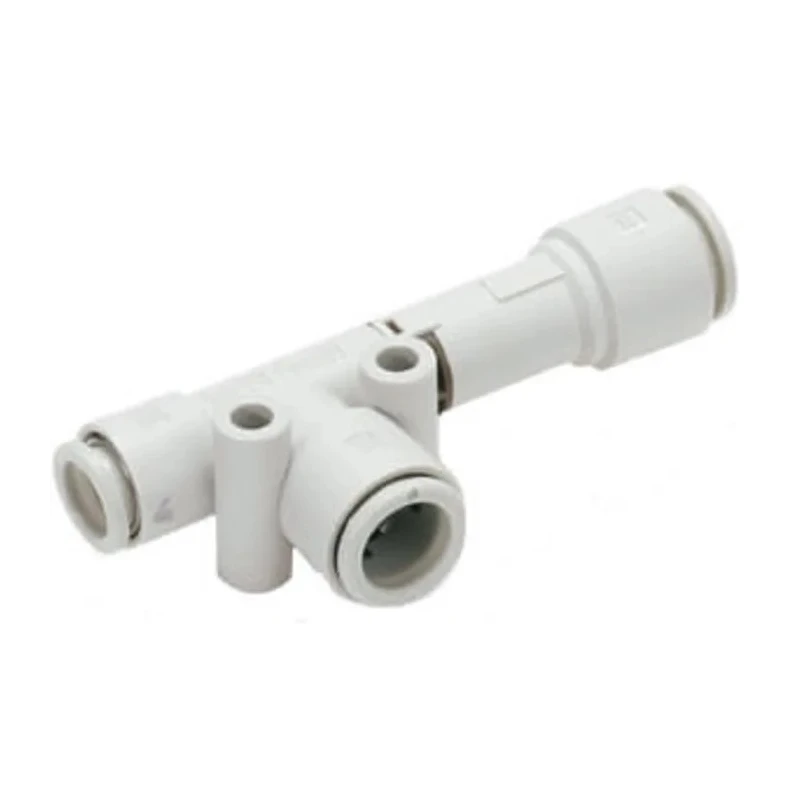

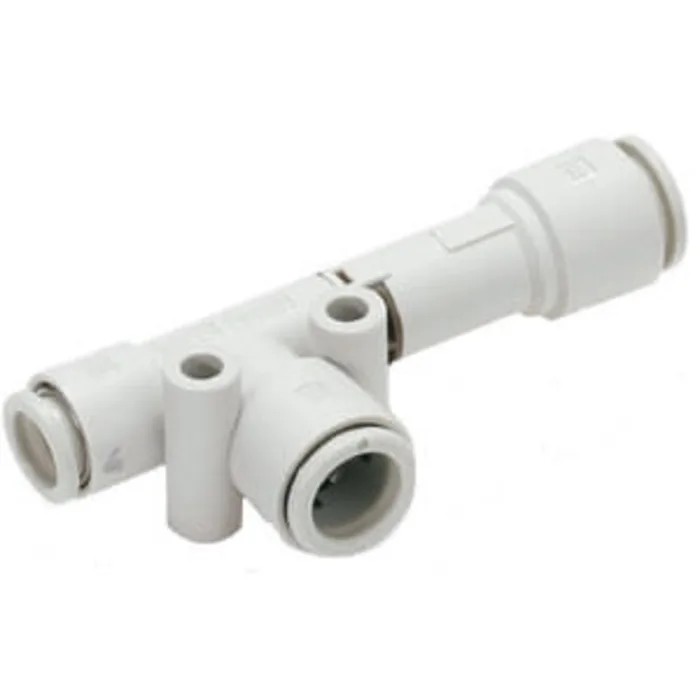

SMC Compact Pneumatic Vacuum Generator with 1.8mm Nozzle Diameter, Max Vacuum -66 kPa, Flow Rate 128 l/min ZH18DLA-03-03-03

SMC ZH18DLA-03-03-03 Vacuum Generator is a compact pneumatic ejector highly suitable for industrial automation applications requiring controlled vacuum suction. It features a nozzle diameter of 1.8 mm that provides focused suction ideal for handling small parts in electronic assembly lines and other precision tasks.

The maximum vacuum capacity of -66 kPa delivers a strong gripping force suitable for various load sizes, enabling reliable pick-and-place and material transfer operations. With a flow rate of 128 liters per minute, it ensures efficient throughput in automated production environments.

Pneumatic connections are via screw-in R3/8 ports for secure and easy integration into existing systems. The unit weighs only 0.096 kg, minimizing the load on robotic end-effectors and enhancing operational efficiency.

This vacuum generator supports continuous operation within an ambient and pressure medium temperature range of -5 °C to 50 °C. Compatible tubing materials include soft nylon, nylon, and polyurethane, providing versatility in system design.

The product is supplied with a mounting bracket for convenient installation. The silencer is not included in the basic package, suitable for applications where noise is not a primary concern.

Common use cases include vacuum gripping for electronics manufacturing, pick-and-place in automated assembly lines, pneumatic gripper operations in light mechanical assembly, and material transfer of small components.

Nozzle diameter is 1.8 mm delivering focused suction for handling small parts. Maximum vacuum pressure reaches -66 kPa for strong gripping force across varied loads. Flow rate is 128 liters per minute to support higher throughput operations.

Screw-in R3/8 pneumatic ports provide secure and easy installation. Lightweight design at 0.096 kg reduces payload on robotic end-effectors. Operates reliably within ambient and pressure medium temperatures from -5 °C to 50 °C.

Compatible with soft nylon, nylon, and polyurethane tubing for vacuum lines. Includes mounting bracket; silencer is not included in the base configuration. Ideal for pick-and-place of electronic components and vacuum gripping in automated test rigs.

This vacuum generator is essential for industrial automation, laboratory handling, manufacturing lines, and HVAC pneumatic control systems. Explore more Vacuum Generators and pneumatic components in the Industrial Tools & Equipment category at EnvMart.
