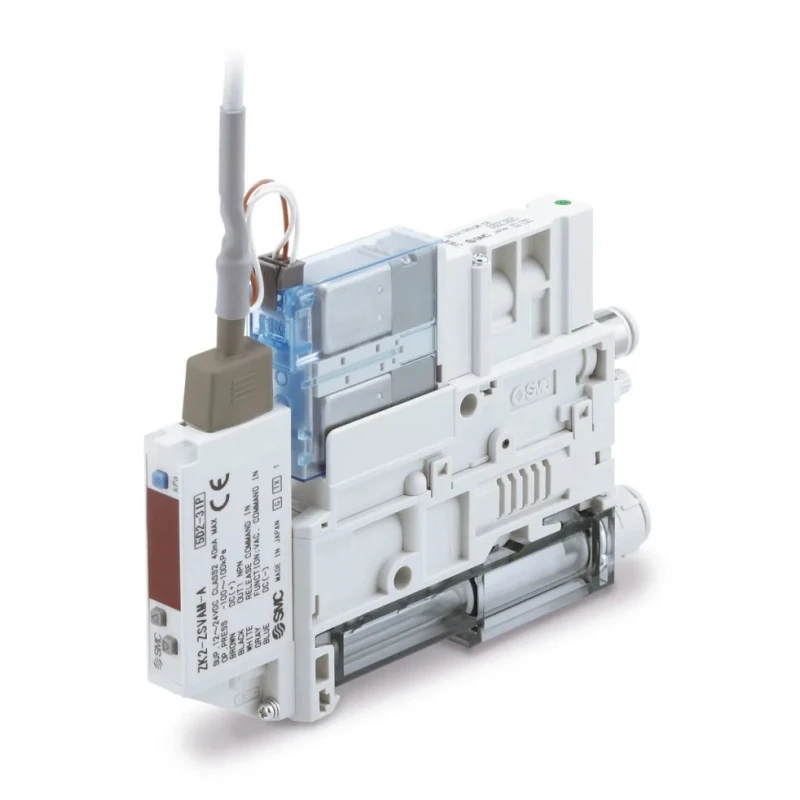

SMC ZK2A10K5TLA-08 Vacuum Generator for ZK2 Series Ejectors, Modular, 12-24VDC/24VDC, -91 kPa, 40 L/min

The SMC ZK2A10K5TLA-08 is a modular single-unit vacuum generator engineered for integration with ZK2 Series vacuum ejectors. Designed to deliver robust and efficient suction performance, this compact generator is ideal for automated systems in diverse industrial settings such as electronics assembly lines, manufacturing cells, laboratory automation, and packaging automation. The device is equipped with a two-stage ejector and pilot-operated control valves, allowing operators to reliably generate and regulate vacuum levels for various pick-and-place, gripping, and component transfer applications.

With a maximum vacuum pressure of -91 kPa, the ZK2A10K5TLA-08 provides significant holding force, ensuring secure manipulation of components. The generator consumes 40 liters of air per minute, making it suitable for continuous operation in high-throughput environments. An analogue output (1 to 5V) facilitates continuous real-time monitoring of vacuum, thereby enhancing process control and system diagnostics. A rated supply pressure range of 0.3 to 0.6 MPa ensures that the generator starts up quickly and delivers stable actuator performance under varying supply conditions.

Designed for low-noise operation, the ZK2A10K5TLA-08 emits a maximum of just 66 dB, contributing to quieter workspaces even in busy industrial floors. The inclusion of a suction filter with a 30 micron rating and a 510 mm² filtration area effectively protects the sensing and actuation section from particulate ingress, resulting in reduced maintenance needs and longer operational life.

To ensure repeatable and accurate vacuum cycles, this generator offers a repeatability of ±0.2% full scale, vital for precise industrial processes. The vacuum port uses an 8 mm one-touch metric fitting which, combined with a silencer exhaust body type, simplifies integration into compact automated assemblies. The robust case construction from PBT resin provides high resistance to oil and chemicals, while the sensor is equipped with a durable, oil-resistant 3-wire cable and 0.2 mm² valve lead.

Electrical requirements are streamlined: the sensor accepts 12 - 24VDC (±10% with ≤10% ripple), and the valves run at 24VDC with a power draw of just 0.4 W. Operating within a temperature range of 0 to 50°C and supporting humidity between 35 and 85% RH (non-condensing), the device maintains dependable performance in variable industrial environments. Storage temperature for the sensor is supported from −20 up to 70°C.

The SMC ZK2A10K5TLA-08 Vacuum Generator finds applications in electronics manufacturing pick-and-place lines, end-of-arm tooling for robotic handlers, vacuum grippers for materials handling, and test fixtures for vacuum holding. Its modularity, reliable analogue feedback, and industrial-grade construction make it an excellent choice for compact automation modules seeking high performance and long operational life.
