Hengstler Pneumatic Counter, Series 495, Operating Pressure 2 bar to 8 bar, Panel Mount, IP55 Rated 0 495 465

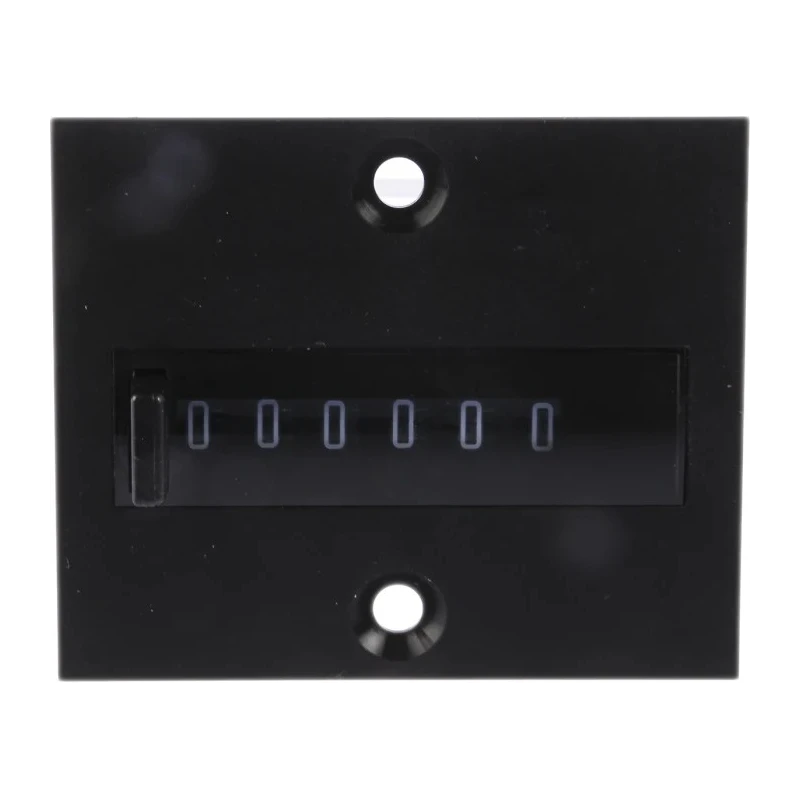

Hengstler 0 495 465 Pneumatic Counter from the 495 series is a robust and maintenance-free industrial pneumatic counter designed to provide precise totalizing counting with 6 digits. It operates fully pneumatically, which makes it ideal for hazardous or explosive environments where electrical pulse counters are not allowed.

This counter supports an operating pressure range of 2 bar to 8 bar and functions efficiently with oil-free, 40 micron filtered air. Its operational temperature spans from -15°C to 60°C, making it suitable for diverse industrial, manufacturing, fluid power systems, and automation applications.

Featuring a front-panel reset and pneumatic reset, the counter ensures easy operation. The minimum pulse length is 8 milliseconds, and the minimum reset pulse length is 180 milliseconds, with a minimum time between pulses of 50 milliseconds, ensuring accurate counting performance.

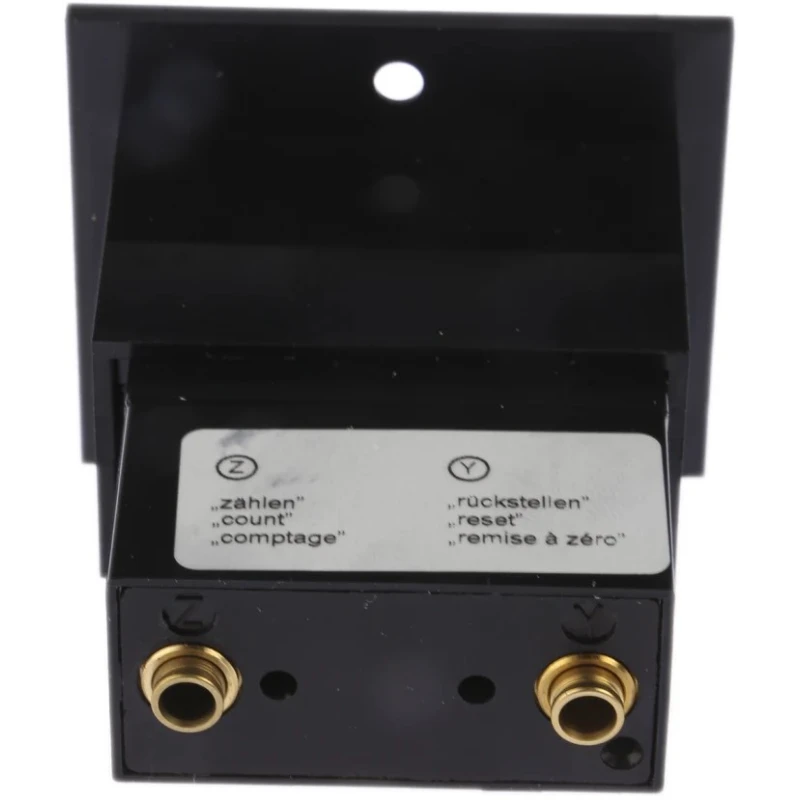

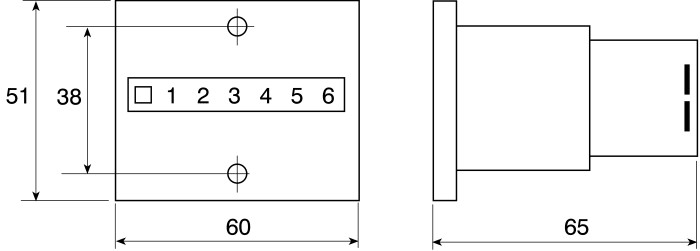

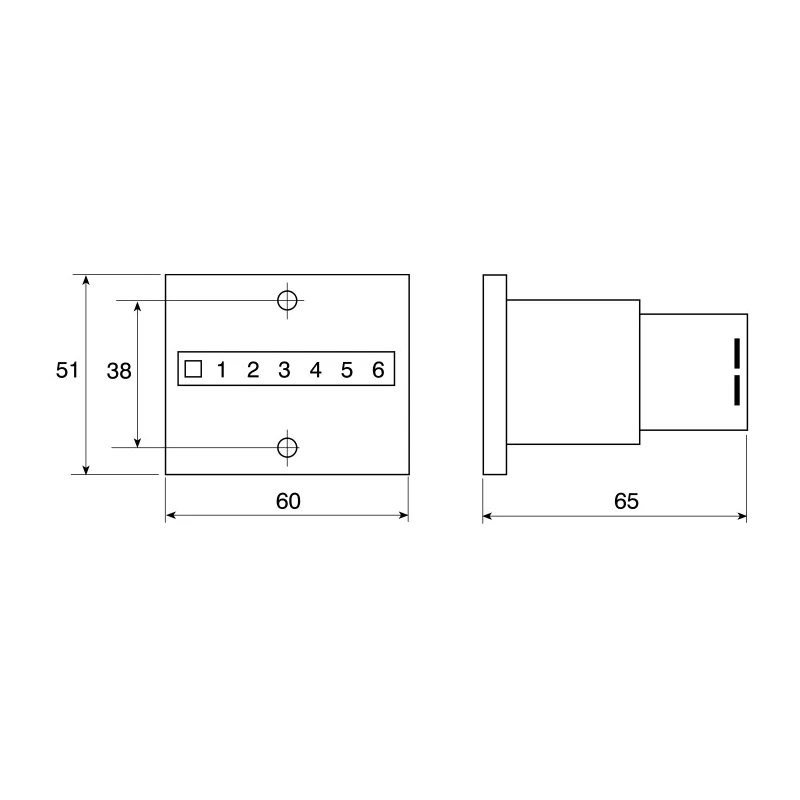

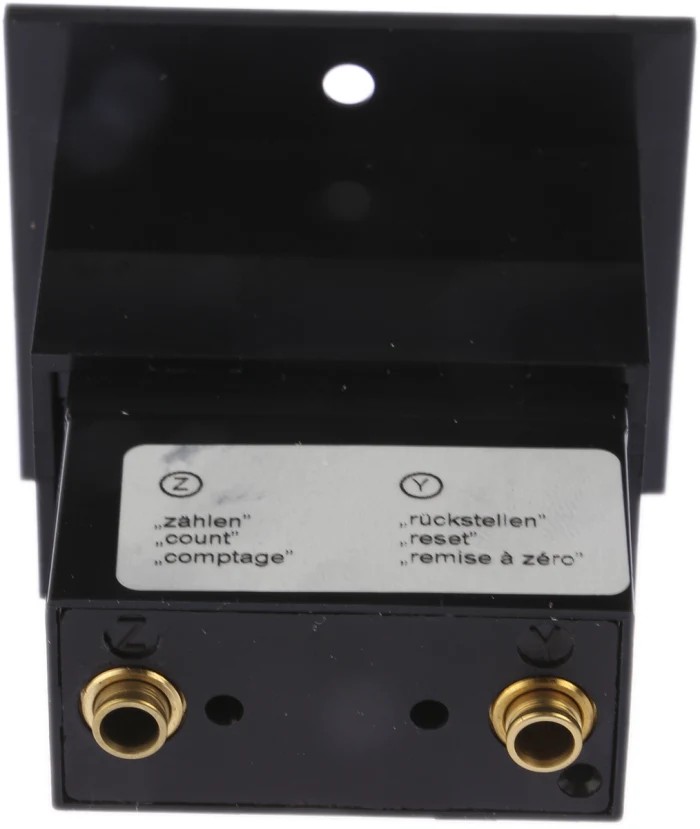

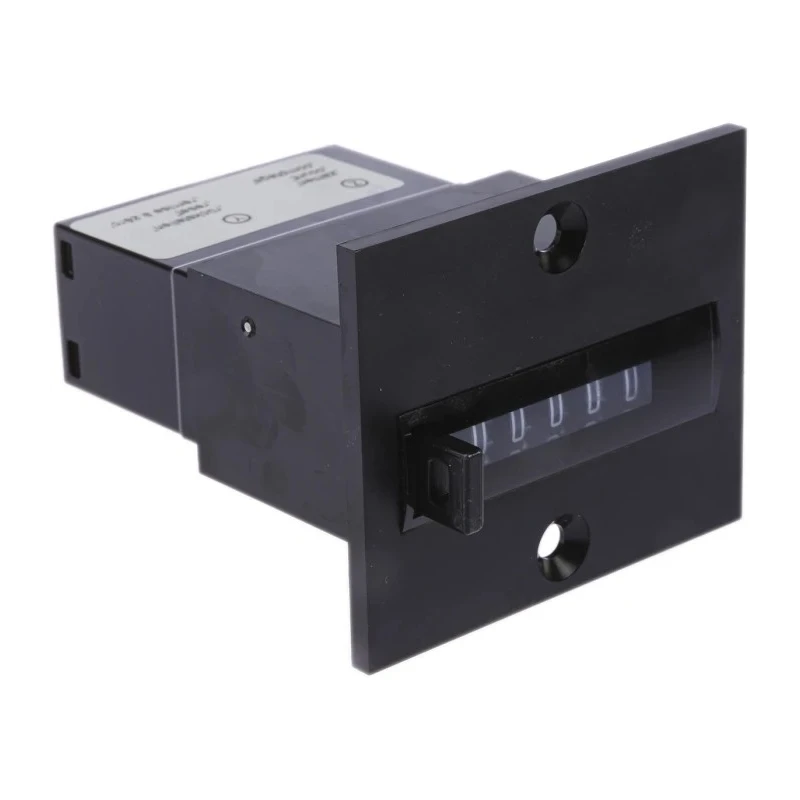

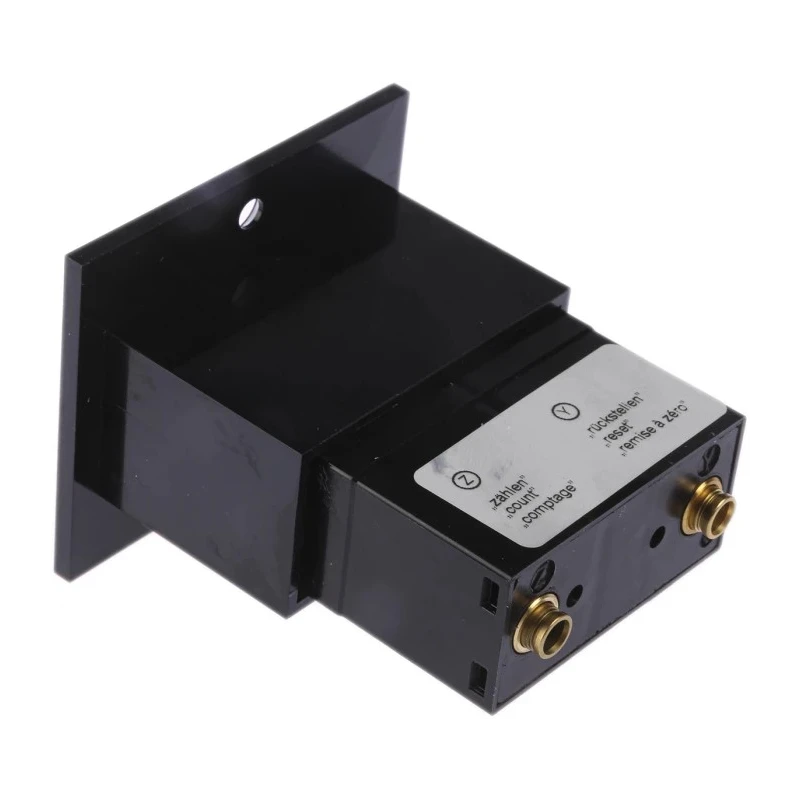

The pneumatic counter is housed in a compact form factor with dimensions 51mm height, 26mm width, and 65mm depth, designed for flush panel mounting with a cut-out size of 52mm by 27mm. It includes push-in connectors for count and reset functions along with screw connection hose couplers or rapid-fit connectors to facilitate installation and maintenance.

This unit is IP55 rated, providing protection against dust ingress and water jets, suitable for industrial and mechanical applications in fluid power and pneumatic systems, especially in environments with explosion hazards.

The Hengstler pneumatic counter finds applications in industrial automation, process control, pneumatic machinery, and other fluid power monitoring systems where electrical counters are not feasible.

The counter features front-panel and pneumatic reset capabilities. Designed for use in explosion risk areas where electrical pulse counters are prohibited. Minimum pulse length is 8 milliseconds, with a minimum reset pulse length of 180 milliseconds.

Operating temperature range is from -15°C to 60°C, suitable for varied industrial environments. IP55 rated housing for protection against dust and water jets. Compatible with oil-free air filtered to 40μm within 2bar to 8bar pressure range.

Installation includes push-in connectors and screw connection hose coupler or rapid-fit connector. Panel cut-out size measures 52mm by 27mm. Explore more Pneumatic Counters and fluid power equipment on EnvMart for reliable industrial automation solutions.
