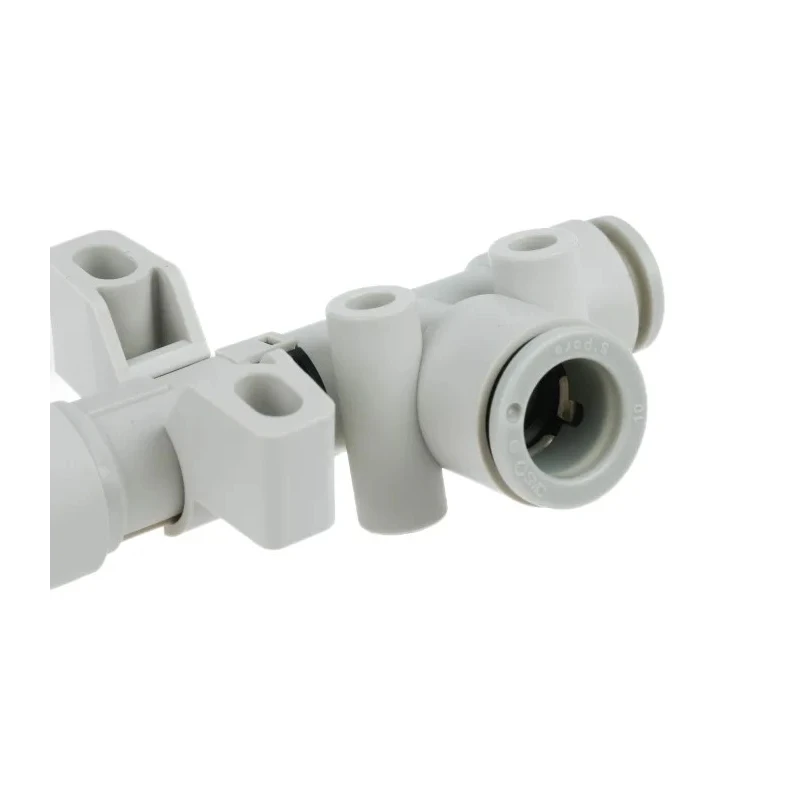

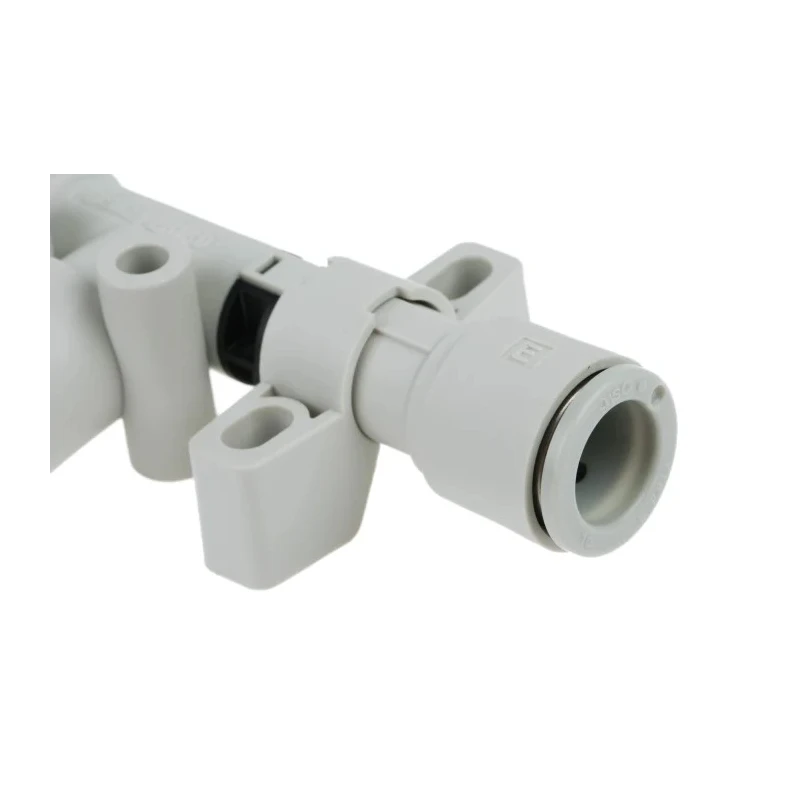

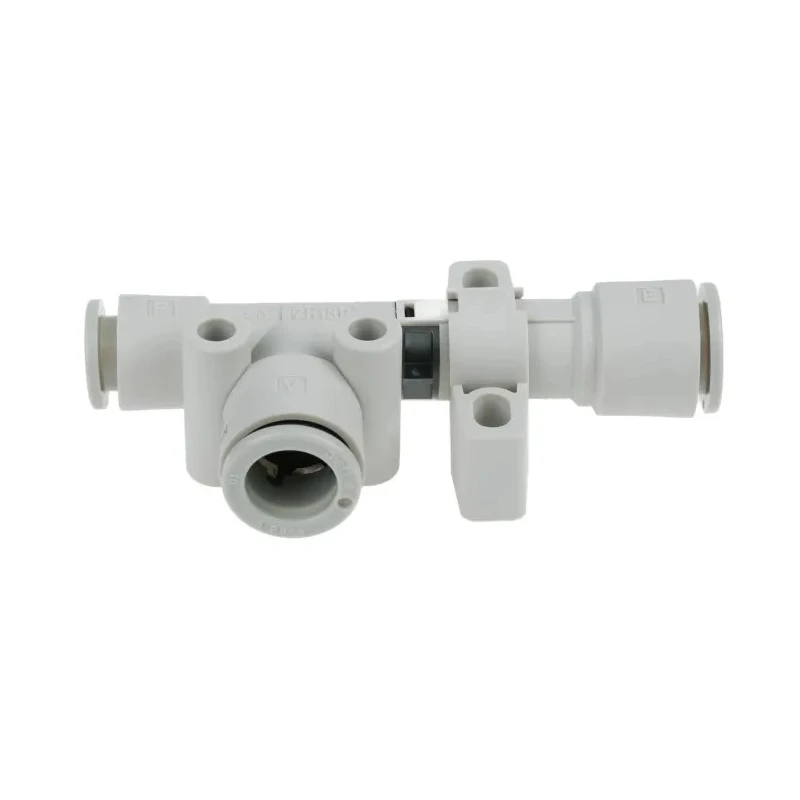

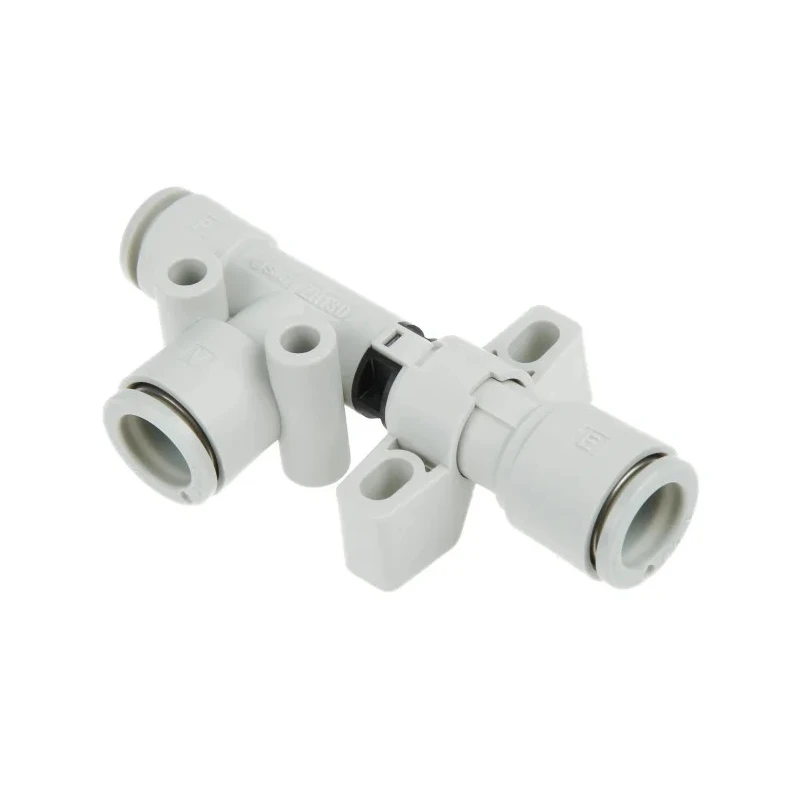

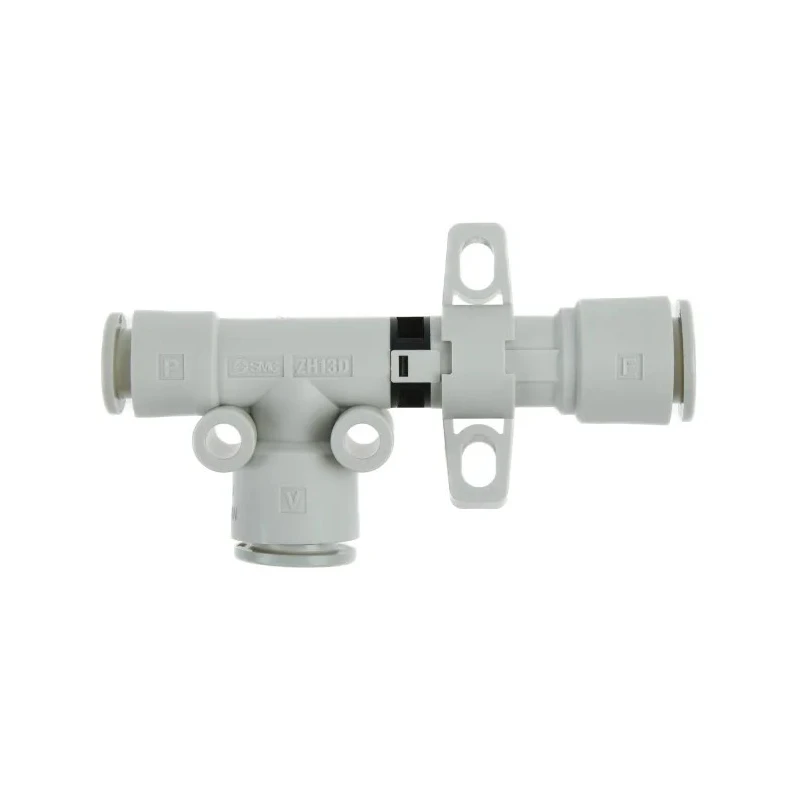

SMC Vacuum Generator Compatible with Polyurethane, Nylon, Soft Nylon, PFA, FEP Tubing ZH13DLA-08-10-10

Free Delivery in India | Lowest Global Shipping Charges

SMC Vacuum Generator Compatible with Polyurethane, Nylon, Soft Nylon, PFA, FEP Tubing ZH13DLA-08-10-10



Category Vacuum Generator Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Model	ZH13DLA-08-10-10
For Use With	Polyurethane, Nylon, Soft Nylon, PFA, FEP
Standards/Approvals	RoHS

Key Features

The 1.3 mm nozzle diameter provides strong suction for handling small payloads.
Maximum vacuum rating of -48 kPa ensures secure grip of components.
Flow capacity of 78 liters per minute supports moderate cycle rates.
One-touch Ø8 supply connection allows quick and error-free installation.
One-touch Ø10 vacuum and exhaust ports reduce tubing errors and increase efficiency.
Operates reliably within a temperature range from -5°C to 50°C suitable for typical factory environments.
Compatible with flexible tubing materials such as polyurethane, nylon, soft nylon, PFA, and FEP.
Compact pneumatic ejector integrates easily into automated pick-and-place and material handling systems.

Product Description

SMC ZH13DLA-08-10-10 Vacuum Generator is engineered for pneumatic vacuum generation using compressed air, compatible with polyurethane, nylon, soft nylon, PFA, and FEP tubing. It features a compact design to support efficient automated handling of delicate components in industrial automation.

This vacuum generator delivers a maximum vacuum pressure of -48 kPa using a 1.3 mm diameter nozzle to provide strong suction suited for small payloads. Its flow capacity of 78 l/min optimizes throughput for moderate cycle speeds ensuring reliable and repeatable operation.

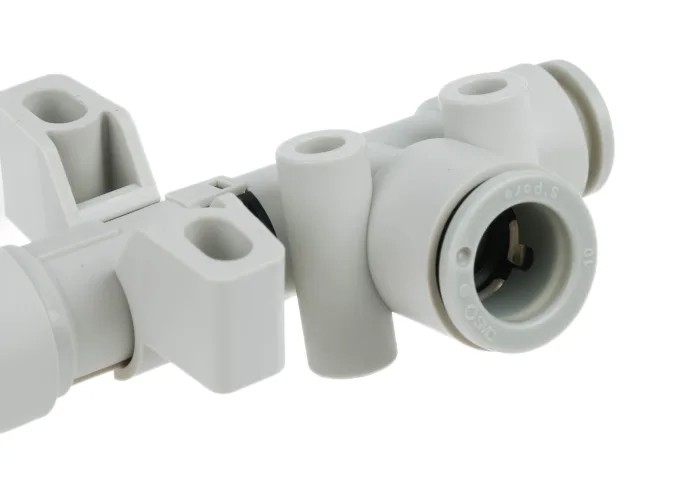

Connections include a one-touch Ø8 air supply port and one-touch Ø10 vacuum and exhaust ports, simplifying setup while minimizing potential tubing errors. The unit is rated to operate effectively within temperatures from -5°C to 50°C, addressing common industrial ambient conditions.

The vacuum generator can be mounted with a bracket when required and in the box-style variant can function without a silencer. Applications include pick-and-place automation for electronic components, assembly of polyurethane parts, vacuum transfer of fluoropolymer materials, and pneumatic fixture integration in mechanical workshops.

SMC ensures quality manufacturing with RoHS compliance and Japanese origin, underscoring industrial reliability and environmental standards adherence. The 1.3 mm nozzle enables strong suction for precise component handling.

The unit achieves up to -48 kPa vacuum for secure gripping. Flow rate of 78 l/min supports efficient automated processes. One-touch Ø8 and Ø10 connections facilitate fast and error-free tubing installation. Designed for operation between -5°C to 50°C in manufacturing environments.

Compatible with multiple flexible tubing types including polyurethane, nylon, soft nylon, PFA, and FEP. Compact pneumatic ejector design suitable for integration in automation systems. Mounting bracket supplied optionally; box variant requires no silencer.

Applicable in assembly lines, material handling, and vacuum transfer applications. For further industrial pneumatic vacuum solutions, browse the Vacuum Generators category on EnvMart.
