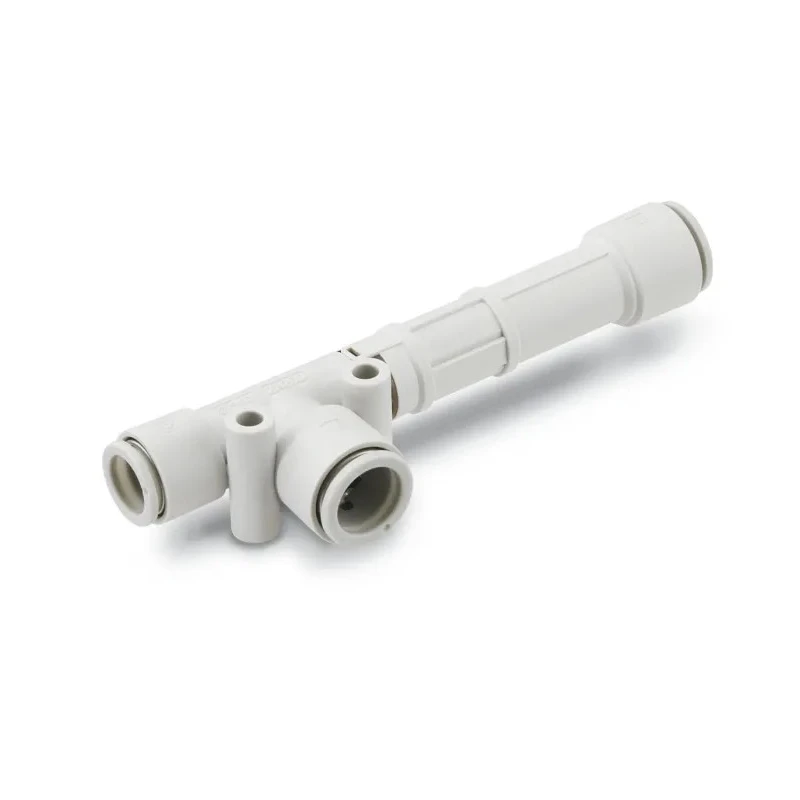

SMC Pneumatic Vacuum Generator, 1mm Nozzle, -90 kPa, 26 L/min Compact Ejector ZH10DSA-06-01-08S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZH10DSA-06-01-08S |
| Nozzle Diameter | 1.0 mm |
| Standards/Approvals | European RoHS |
| SMC Vacuum GeneratorBrand | SMC |
| SMC Vacuum Ejector, 1mm nozzle , -88kPa 24L/min, ZH seriesBrand | SMC |
| Maximum Vacuum Level | -90 kPa |
Key Features
- Compact pneumatic vacuum generator for automated systems.
- Delivers a maximum vacuum level of -90 kPa for strong gripping force.
- 1.0mm nozzle diameter provides accurate and focused suction.
- Supports a flow capacity of 26 L/min (ANR) for moderate-speed operations.
- Compatible with nylon, soft nylon, or polyurethane tubing.
- Wide ambient operating temperature range from -5 °C to 50 °C.
- Push-in fittings for supply/exhaust (8mm) and vacuum port (6mm).
- Includes silencer accessory to minimize exhaust noise.
Product Description
The SMC ZH10DSA-06-01-08S is a compact pneumatic vacuum generator engineered for demanding industrial automation and robotics applications. Utilizing compressed air, it efficiently produces a controlled vacuum for various material handling and transfer tasks, making it an ideal solution for pick-and-place systems and environments where a small installation footprint is crucial.
This vacuum generator features a robust maximum vacuum level of -90 kPa, delivering reliable gripping force required for precise handling of delicate and small-scale components. The 1.0mm nozzle diameter optimizes suction delivery, ensuring focused and efficient vacuum generation for precise applications such as electronics assembly and laboratory automation.
With a flow capacity of 26 liters per minute (ANR), the ZH10DSA-06-01-08S supports moderately paced cycles typical of automation and mechanical sub-assemblies. Its design allows compatibility with nylon, soft nylon, or polyurethane tubing, which ensures secure push-in connections and preserves optimal flow characteristics within the system.
The unit operates effectively across a temperature range of -5 °C to 50 °C, making it suitable for varied industrial environments. Pneumatic connections are conveniently achieved with push-in fittings for supply and exhaust (8mm diameter), while a one-touch connection (6mm diameter) serves the vacuum port, expediting installation and maintenance tasks.
Noise attenuation during extended operation is managed by the included silencer accessory, contributing to safer and more comfortable workplace conditions. A secure bracket mounts the vacuum generator within automation fixtures, supporting stable integration in both new and retrofit projects.
Typical use cases include electronics assembly lines, robotic end-of-arm tooling, PCB handling and transfer, laboratory equipment automation, and small-scale packaging systems. The SMC ZH10DSA-06-01-08S delivers focused performance and dependable operation for industrial, laboratory, and commercial automation sectors.
Browse more Vacuum Generators and pneumatic automation solutions from SMC in the Hydraulic & Pneumatic Tools category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum vacuum level of this model is -90 kPa, providing a strong gripping force for various applications.
It has a flow capacity of 26 liters per minute (ANR), suitable for moderate-speed operations in automation tasks.
The nozzle diameter of this unit is 1.0 mm, which allows for focused and efficient suction delivery.
This model is compatible with nylon, soft nylon, or polyurethane tubing, ensuring secure connections.
It operates effectively within a temperature range of -5 °C to 50 °C, making it versatile for different environments.
It utilizes push-in fittings for supply and exhaust (8mm diameter) and a one-touch connection for the vacuum port (6mm diameter).
Yes, it includes a silencer accessory to minimize exhaust noise during operation.
Typical applications include electronics assembly lines, robotic end-of-arm tooling, PCB handling, and laboratory equipment automation.
It complies with European RoHS standards, ensuring it meets environmental regulations.
The country of origin for this vacuum generator is Japan.
It can be securely mounted using a bracket, facilitating stable integration into automation fixtures.
The brand of this model is SMC, known for its pneumatic automation solutions.
