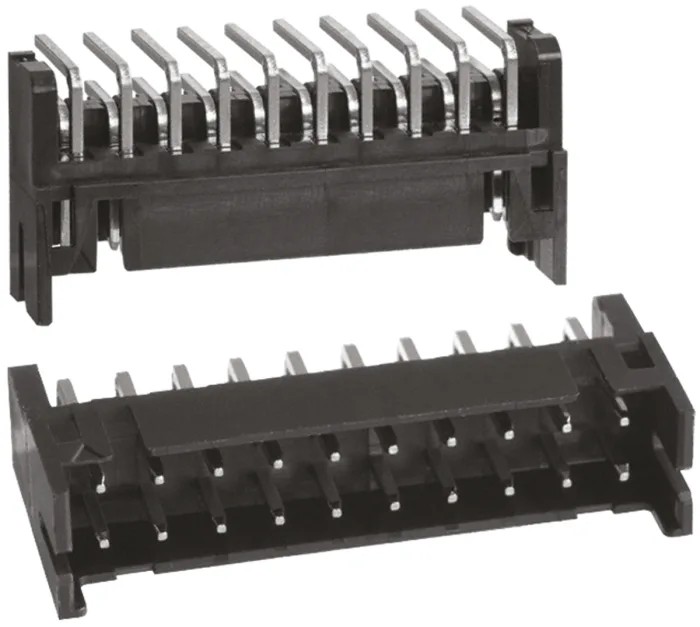

Hirose Right Angle Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded DF11

Free Delivery in India | Lowest Global Shipping Charges

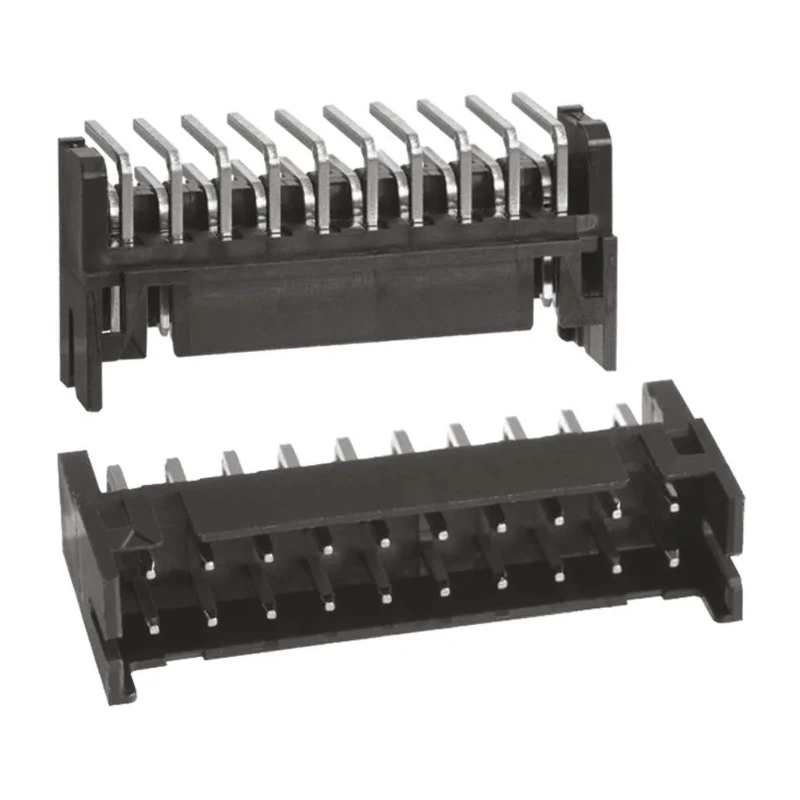

Hirose Right Angle Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded DF11

Name: Hirose Right Angle Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded DF11
Brand: Hirose
SKU: 212420
Price: 1.27 USD
Availability: InStock



Category PCB Headers Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Hirose
Orientation	Right Angle
Current	2A
Model	DF11
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	DF11
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

The compact double row design enables integration in tight PCB layouts.
Shrouded housing made from durable polyamide provides robust protection.
Contact material is brass with tin plating ensuring reliable electrical connectivity.
Rated for 2 A current and supports up to 250 V operating voltage.
Mount type is through hole, suitable for secure soldering on PCBs.
Operating temperature ranges from -30°C to 85°C for versatile environments.
Built-in locking mechanism and guide ribs prevent mismating and ensure secure connection.
Ideal for use in digital cameras, LCD displays, measurement devices, and other portable electronics.

Product Description

Hirose DF11 right angle through hole PCB header, model DF11, features a 20 contact, 2 mm pitch double row design with a shrouded polyamide housing. It is engineered for robust and compact board-to-board connector applications requiring space efficiency and reliable electrical performance.

This series supports a 2 A current and voltage ratings up to 250 V. Its brass contacts plated with tin provide corrosion resistance and stable conductivity. The through hole mount type ensures strong PCB attachment by soldering, while metal fittings enhance retention and prevent solder peel.

The connector operates reliably in temperatures between -30°C and 85°C, making it suitable for various industrial, laboratory, and commercial electronics applications.

The design incorporates guide ribs to prevent incorrect insertion and twisting, alongside a locking mechanism securing the connection firmly. Its compact 5 mm depth enables double row contact configuration within the footprint of a single row, optimizing PCB real estate.

Commonly employed in digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and precision measurement instruments, this PCB header provides versatility and durability in compact electronic assemblies.

The compact double row design enables integration in tight PCB layouts. Shrouded polyamide housing provides durable protection. Reliable brass contacts with tin plating ensure effective electrical connectivity. Rated for 2 A current and 250 V voltage for industrial and commercial applications.

Through hole mount type for secure PCB soldering and retention. Operates in temperature range from -30°C to 85°C for various environments. Guide ribs and locking mechanism safeguard against mismating and disconnections. Supports applications including digital cameras, LCD displays, and measurement devices.

Explore our extensive catalog to find more reliable PCB connector solutions from Hirose and other leading brands on EnvMart.

Explore more products in our PCB Headers category.
