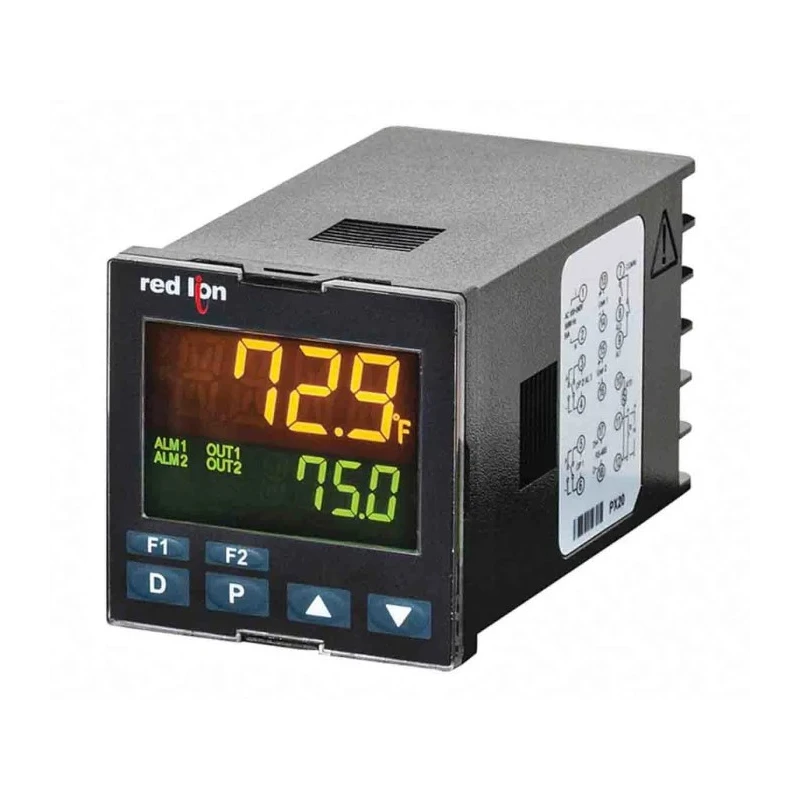

Red Lion PXU Panel Mount PID Temperature Controller 2 Input, 1 Output Relay 240V DC PXU11AB0

Red Lion PXU11AB0 is a panel mount PID temperature controller designed for accurate temperature regulation in industrial and process control environments. It features a dual-input configuration and a single output relay operating at 240V DC, enabling integration into advanced automation systems.

The unit supports multiple sensor inputs including thermocouple (TC), resistance temperature detector (RTD), as well as standard analogue signals such as 0-10 V, 0/4-20 mA, and 0-50 mV. This flexibility allows it to be used in a wide range of applications requiring precise thermal management.

Equipped with an LCD display, the controller provides clear and immediate feedback of process parameters. It includes robust control features such as PID control with on-demand auto-tuning, dual relay alarms for enhanced safety, and user-programmable function buttons for customization.

For modern automation communication, the PXU11AB0 offers RS-485 serial digital communications, ensuring seamless connectivity with supervisory control systems or industrial networks.

Designed for panel mounting, it features a compact 1/16 DIN form factor with dimensions of 48 mm by 48 mm and a panel depth of 80 mm. The device offers an IP65 ingress protection rating, ensuring resistance against dust and water ingress suitable for industrial environments.

The controller operates reliably in ambient temperatures from 0°C to 50°C and is assembled using screw type terminals for secure wiring connections. Its maximum output relay current is rated at 3 amps, adequate for various heating and cooling equipment control.

This Red Lion PXU11AB0 PID temperature controller is ideal for use in industrial automation, manufacturing processes, HVAC systems, and laboratory instrumentation where precise temperature control is critical.

Explore the full range of Temperature Controllers and automation components available to enhance your industrial control solutions through EnvMart's extensive catalog. Panel mount design with IP65 rating ensures durability in industrial environments.

2 programmable analogue inputs accept TC, RTD, 0-10 V, 0/4-20 mA and 0-50 mV signals. Single output relay with a maximum current rating of 3A for reliable control. Features an LCD display for clear process monitoring. Includes RS-485 serial communications for digital connectivity.

Supports PID control with on-demand auto-tuning of PID settings. Equipped with dual relay alarms and 2 user-programmable function buttons. Operates reliably within 0°C to 50°C ambient temperature range. Compact 1/16 DIN size unit with 48 mm length and width, and 80 mm panel depth.
