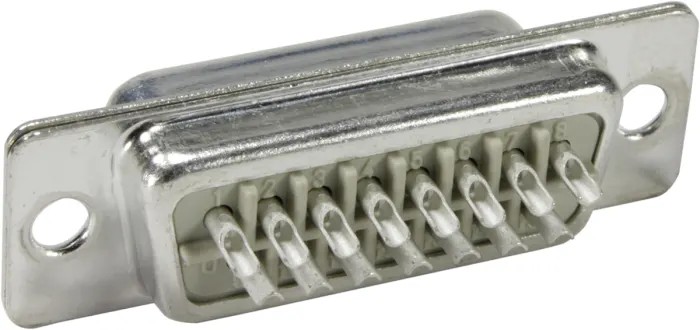

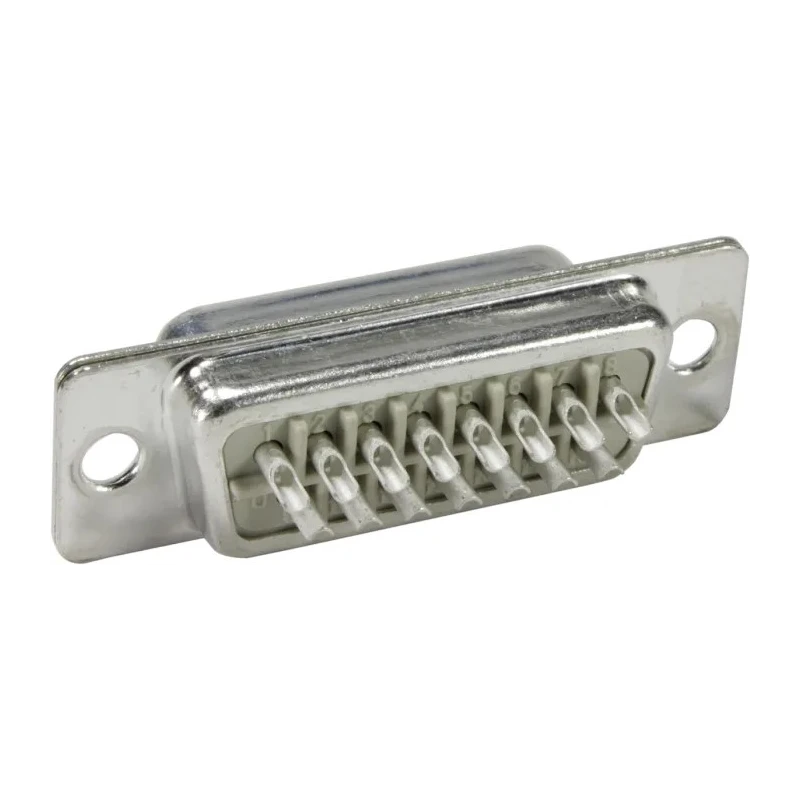

HARTING SV TSDC 37 Way Straight Panel Mount D-Sub Connector with Flange Male 1kV 7.5A 09670375615

Free Delivery in India | Lowest Global Shipping Charges

HARTING SV TSDC 37 Way Straight Panel Mount D-Sub Connector with Flange Male 1kV 7.5A 09670375615

Name: HARTING SV TSDC 37 Way Straight Panel Mount D-Sub Connector with Flange Male 1kV 7.5A 09670375615
Brand: HARTING
SKU: 209133
Price: 20.08 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	7.5A
Mount Type	Panel Mount
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	SV TSDC
Mounting Hardware	Flange
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Standards/Approvals	UL Recognised, UL 94-V0, RoHS
Contact Plating	Steel
Number of Contacts	37
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub

Key Features

This connector features 37 contacts for robust signal and power transmission.
Designed for panel mount installation with a flange for secure fixing.
Rated for 7.5 amperes current and 1 kilovolt voltage.
Constructed with fiberglass reinforced thermoplastic housing and copper alloy contacts.
Includes solder termination and male contact gender for versatility.
Operates in wide temperature range from -55°C to 125°C.
Complies with UL Recognised, UL 94-V0, and RoHS standards.
Manufactured in Germany ensuring high quality and durability.

Product Description

HARTING 09670375615 SV TSDC 37 Way Straight Panel Mount D-Sub Connector with Flange Male is a high-performance connector designed for industrial and electronic power connector applications. It supports 37 contacts, allowing multiple circuits or signals to be transmitted simultaneously with excellent electrical integrity.

The connector features a robust fiberglass reinforced thermoplastic housing for durability and insulation, combined with male copper alloy contacts plated with steel for enhanced corrosion resistance and conductivity. The solder cup termination provides secure and reliable wire connections, ideal for custom wiring and repair tasks.

This panel mount connector is secured with a flange and utilizes 3.1 mm mounting holes for easy integration in electronic enclosures, control panels, and machinery interfaces. Rated at 7.5A current and withstands up to 1kV voltage, it is suitable for medium power and signal transmission applications.

Designed to operate in harsh environments, it handles temperatures from -55°C to 125°C, making it suitable for industrial, manufacturing, automotive, and commercial electronics contexts. The connector complies with rigorous safety and environmental standards including UL Recognised, UL 94-V0 flammability, and RoHS compliance.

37 contacts for efficient multi-signal management. Robust and heat-resistant fiberglass reinforced thermoplastic housing. Solder cup termination for secure and custom wire connections. Male connector gender with flange mounting and 3.1 mm fixing holes.

7.5 A current rating and 1 kV voltage tolerance. Wide operating temperature range from -55°C to 125°C. Compliant with UL Recognised, UL 94-V0, and RoHS standards. Manufactured in Germany ensuring premium quality and reliability.

This connector is ideal for electronic, power, and industrial manufacturing, allowing secure connections in demanding control panel and machine interface applications. Explore more high-quality Harting connectors and accessories at EnvMart for your technical and industrial needs.
