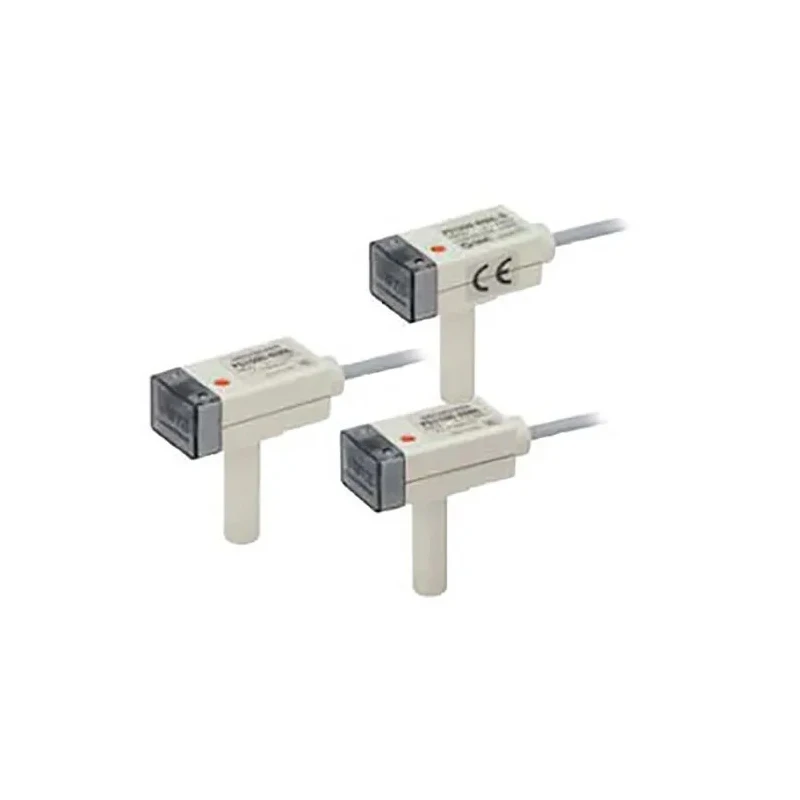

SMC Compact Electronic Pressure Switch Vacuum Type 24V DC 40mA Port Size 6 mm PS1200-R06L-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Compact Electronic Pressure Switch Vacuum Type 24V DC 40mA Port Size 6 mm PS1200-R06L-Q



Category Vacuum Switch Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Maximum Operating Pressure	500 kPa
Current	40mA
Height	30mm
Model	PS1200-R06L-Q
IP Rating	IP40
Width	13mm
Series	PS
Maximum Operating Temperature	60°C
Pressure Type	Vacuum
Switch output	PNP
Port Size	6 mm
Minimum Operating Temperature	0°C
Standards/Approvals	CE, RoHS
Connection Thread Standard	Metric
Minimum Operating Pressure	1MPa
Suitable Medias	Gas, Non-Corrosive Gas, Air

Key Features

Operates with gas, non-corrosive gas, and air media.
Suitable for vacuum pressure type with 1 MPa minimum and 500 kPa maximum operating pressure.
Equipped with PNP switch output and LED indicator for operational status.
Compact dimensions of 13mm width, 30mm height, and lightweight design.
Meets CE and RoHS standards with IP40 protection rating.
Operates reliably between 0°C to 60°C ambient temperature.
2-wire switch compatible for either NPN or PNP output connection.
Metric connection thread standard with 6 mm port size.

Product Description

SMC PS1200-R06L-Q electronic pressure switch is a compact, lightweight vacuum switch designed for pneumatic and fluid power applications. Operated at 24V DC with a maximum current of 40mA, it is engineered to reliably sense operating pressures between 1 MPa minimum and 500 kPa maximum. Its PNP switch output and LED indicator provide clear operational feedback.

The switch is suitable for media including gas, non-corrosive gas, and air. Its compact size (13mm width, 30mm height, 10mm without connection parts) facilitates easy installation in confined spaces.

Constructed with a metric connection thread and 6 mm port size, it offers compatibility with standard pneumatic fittings. The device is rated IP40 for dust protection and conforms to CE and RoHS standards, ensuring regulatory compliance.

Operating temperature range spans from 0°C to 60°C, making it suitable for various industrial environments requiring precise vacuum pressure monitoring. The PS1 series switch features a 2-wire connection, allowing selection between NPN or PNP output types for versatile integration.

Compact and lightweight design enables easy integration into pneumatic systems. Wide operating pressure range suitable for vacuum applications. LED indicator and PNP output provide clear feedback and control signal. Compliant with CE and RoHS standards ensuring safety and environmental compliance.

IP40 rated enclosure protects against dust ingress. Designed for gases including air and non-corrosive gases. Metric 6 mm port facilitates standard pneumatic connectivity. Operational temperature from 0°C to 60°C suits industrial settings.

This SMC pressure switch is widely used in industrial automation, fluid power control, pneumatic systems, manufacturing lines, and laboratory equipment where sensitive vacuum pressure monitoring is critical.
