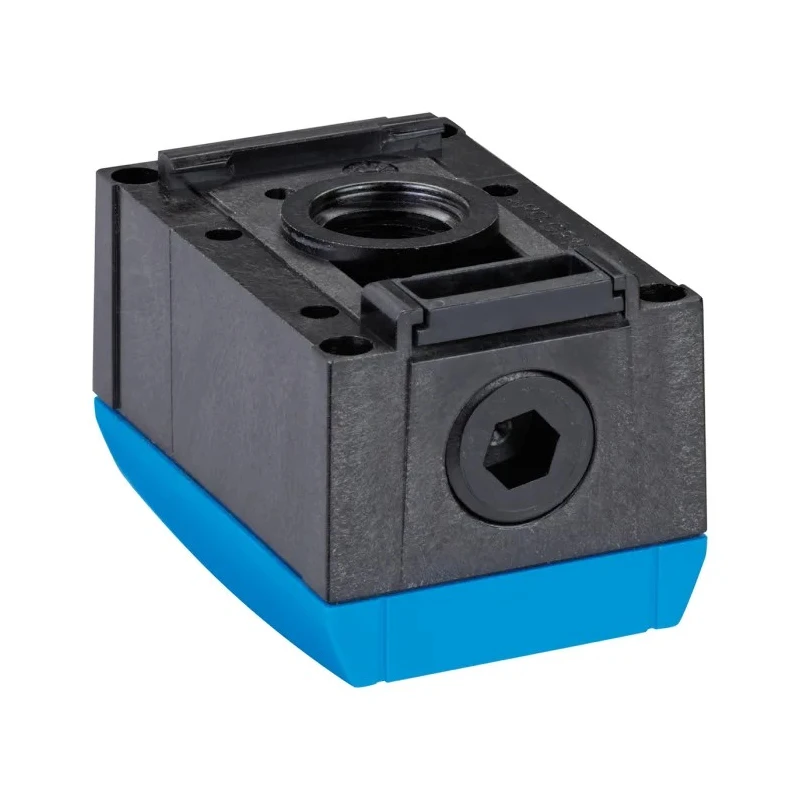

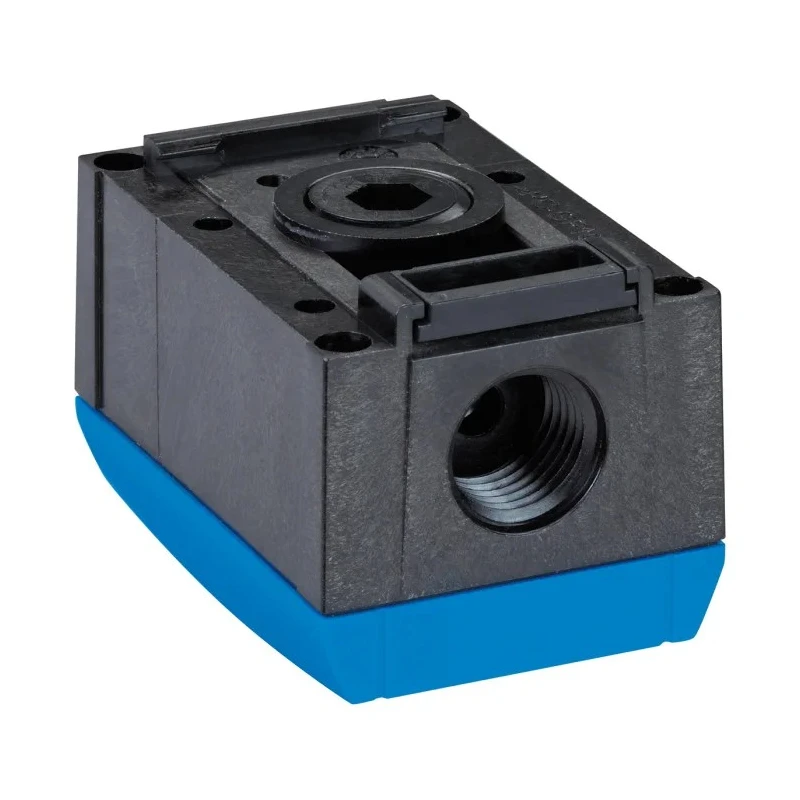

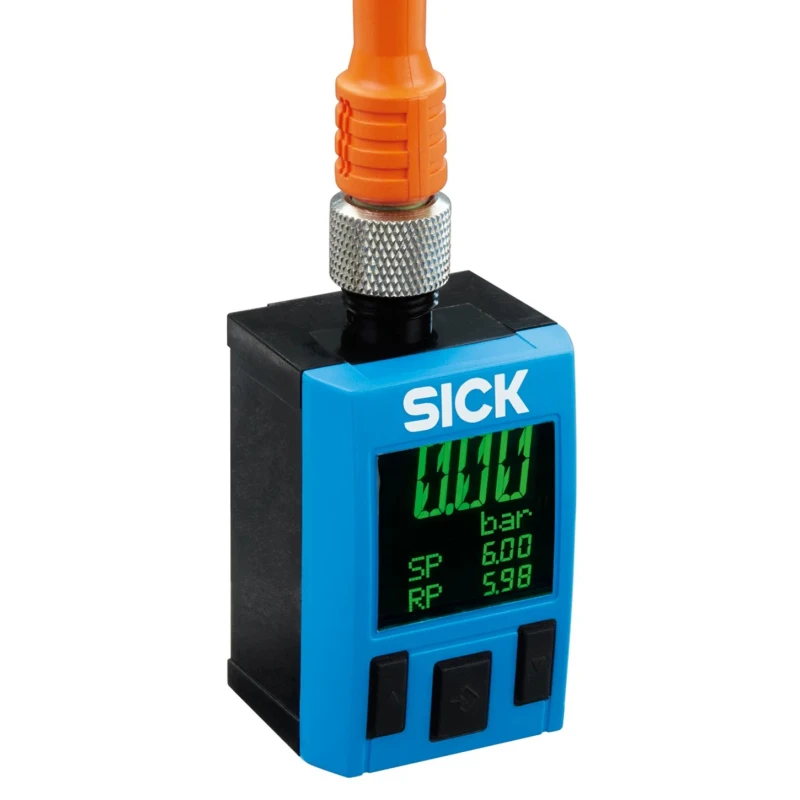

SICK PAC50-BGC Pressure Switch -1 bar to 1 bar, 30V DC, IP65/IP67, DIN Rail Mounting PAC50-BGC PAC50-BGC / 1062960
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 1 bar |
| Height | 63mm |
| Model | PAC50-BGC / 1062960 |
| Depth | 35mm |
| IP Rating | IP65, IP67 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50 |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Positive Pressure, Negative Pressure |
| Switch output | NPN, Push Pull, PNP |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 4 to 20 mA, 0 to 10 V dc |
| Standards/Approvals | IEC/EN |
| Connection Thread Standard | Metric, G |
| Minimum Operating Pressure | -1bar |
| Port Gender | Female |
| Suitable Medias | Air |
Key Features
- The device provides integrated pressure switch, transmitter, and display for clear system status.
- Switch outputs are configurable as NPN, PNP, or push-pull to suit installation requirements.
- Analogue output options include 4-20 mA and 0-10 V DC signals for flexible signal interfacing.

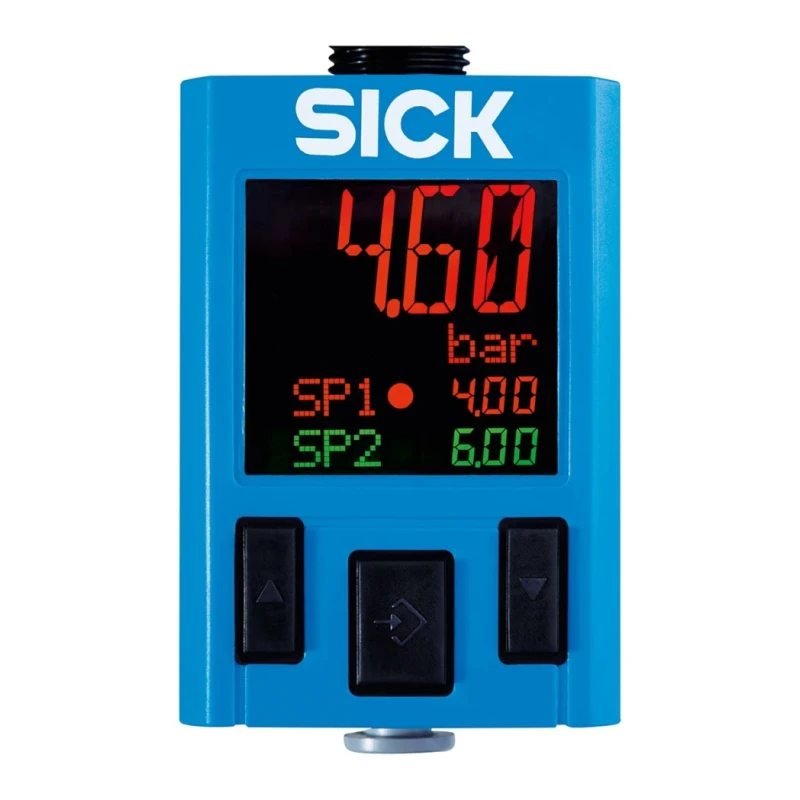

- Clear bi-colour display changes color to indicate set point activation.
- Mounting is possible on DIN rail or panel with an accessory, simplifying installation.
- Suitable for positive and negative pressure monitoring in pneumatic and vacuum systems.
- Compact dimensions (63mm height × 35mm width × 35mm depth) enable versatile mounting.
- The pressure switch features a female metric G connection thread.
Product Description
The SICK PAC50-BGC pressure switch is designed for precise monitoring of air pressure ranging from negative one bar to positive one bar. This model operates at 30V DC voltage and features integrated pressure switch, transmitter, and a clear bi-colour display to provide simultaneous readings of applied pressure and set points. The rugged IP65 and IP67 rated casing protects against dust and water ingress, making it suitable for demanding environments.
Programming is user-friendly using the three front panel buttons with no special tools required. The switch outputs can be configured for NPN, PNP, or push-pull modes, while the analogue output automatically detects voltage or current signals, reducing installation complexity.
Mounting options include DIN rail fitting or panel mounting with a separately available kit, enhancing flexibility in various industrial applications. The device includes a female metric G connection thread and standard M12 electrical connection to simplify integration into pneumatic control systems and vacuum applications.
Applications of the PAC50-BGC cover pneumatic control systems, vacuum grippers, and cylinder pressure regulation. It adheres to IEC/EN standards and does not carry hazardous area certification. Compact in size at 63mm high, 35mm wide, and 35mm deep, it fits efficiently in control panels and distributed installations.
The device integrates pressure switching, transmission, and display functionalities. Configurable switch outputs and analogue outputs provide versatile signal interfacing. Clear pressure and set point display with color change at activation.
DIN rail mountable with optional panel mounting accessories. Suitable for both positive and negative pressure measurements.
Designed primarily for industrial, pneumatic, laboratory, and manufacturing environments, the PAC50-BGC enhances the reliability and control of pressure-based processes. The product is manufactured in Thailand and supplied in new condition.
Explore more products in the Industrial Tools & Equipment category at EnvMart for advanced pneumatic and hydraulic components.
Explore more products in our Vacuum Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAC50-BGC pressure switch measures pressure from -1 bar to 1 bar, allowing for both positive and negative pressure monitoring.
This model supports configurable switch outputs in NPN, PNP, or push-pull modes, along with analogue outputs of 4-20 mA and 0-10 V DC.
The dimensions of the PAC50-BGC are 63mm in height, 35mm in width, and 35mm in depth, making it compact for various installations.
The PAC50-BGC operates at a voltage of 30V DC.
The device has an IP rating of IP65 and IP67, providing protection against dust and water ingress.
This model can be mounted on a DIN rail, and it can also be panel mounted with an optional accessory kit.
The maximum operating temperature for this pressure switch is 60°C.
The PAC50-BGC features a female metric G connection thread, facilitating integration into pneumatic systems.
The minimum operating temperature for the PAC50-BGC is 0°C.
This pressure switch is suitable for monitoring air pressure in pneumatic and vacuum systems.
The device adheres to IEC/EN standards, ensuring compliance with relevant industrial regulations.
The display is bi-colour and changes color to indicate set point activation, providing clear visibility of system status.
