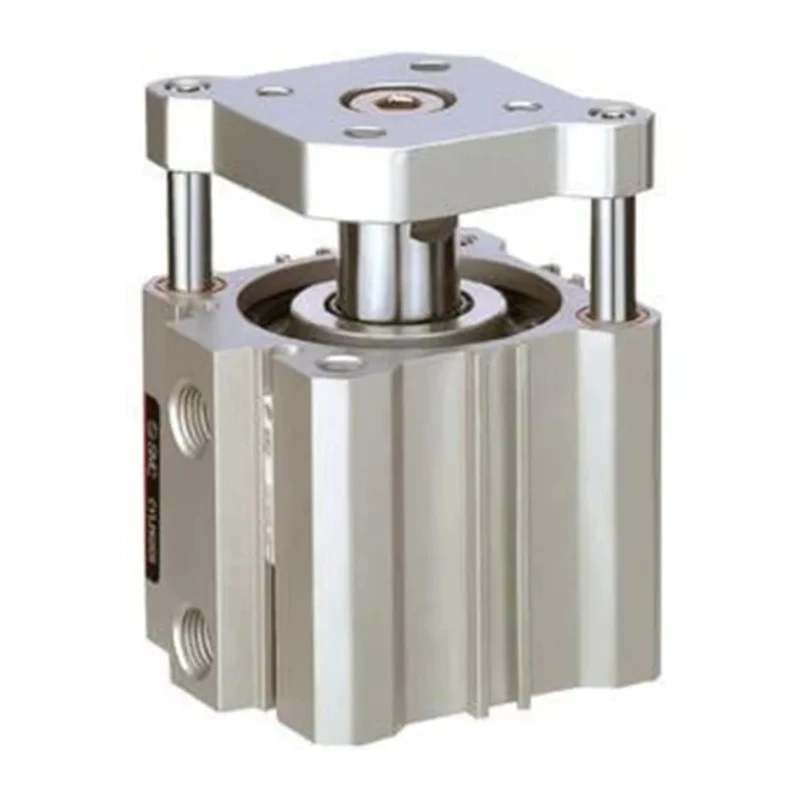

SMC Pneumatic Compact Cylinder 32mm Bore, 50mm Stroke, Double Acting, Aluminium Alloy Body CQMB32-50

SMC CQMB32-50 Pneumatic Compact Cylinder is a high-performance compact cylinder featuring a 32mm bore diameter and 50mm stroke length. Designed for industrial fluid power applications, it offers double acting operation with an aluminium alloy body construction that provides excellent strength and lightweight characteristics.

This cylinder comes integrated with a guide rod and plate, allowing direct mounting of workpieces for efficient motion control. It delivers a maximum operating pressure of 1 MPa, ensuring reliable and consistent force delivery in pneumatic systems.

With advanced cushioning via rubber bumpers, the cylinder guarantees smooth operation and reduced impact, extending the lifespan of both the cylinder and connected mechanisms. The single rod type features a metric M10 x 1.25 piston rod thread, suitable for secure fastening and integration into various equipment setups.

The unit operates accurately with non-rotating precision within ±0.2°, and provides four times the lateral load resistance compared to the CQ2K series. It functions reliably in environments ranging from -10°C to 70°C, making it suitable for a wide array of industrial, manufacturing, automation, and laboratory settings.

The overall length of 88mm and a weight of 389 grams make it compact and easy to handle, facilitating installation in confined spaces. This SMC compact cylinder is ideal for use in pneumatic piston rod cylinder applications where accuracy, durability, and compactness are critical.

Compact cylinder with integrated guide rod and plate for direct mounting. Double acting operation with aluminium alloy body for strength and lightness. Maximum operating pressure of 1 MPa for high force output. Rubber bumper cushioning for reduced impact and longevity.

Single rod type with M10 x 1.25 metric piston rod thread. Operating temperature range from -10°C to 70°C for versatile use. Non-rotating accuracy of ±0.2° and 4x lateral load resistance compared to CQ2K series. Compact size of 88mm length for space-saving installation.

Weight approximately 389g for easy handling. Manufactured in China adhering to quality standards.

This Pneumatic Compact Cylinder is suitable for various industrial applications including manufacturing automation, fluid power systems, laboratory instrumentation, and material handling equipment. Its precise motion control, compact design, and robust construction make it a reliable choice in pneumatic actuation tasks.
