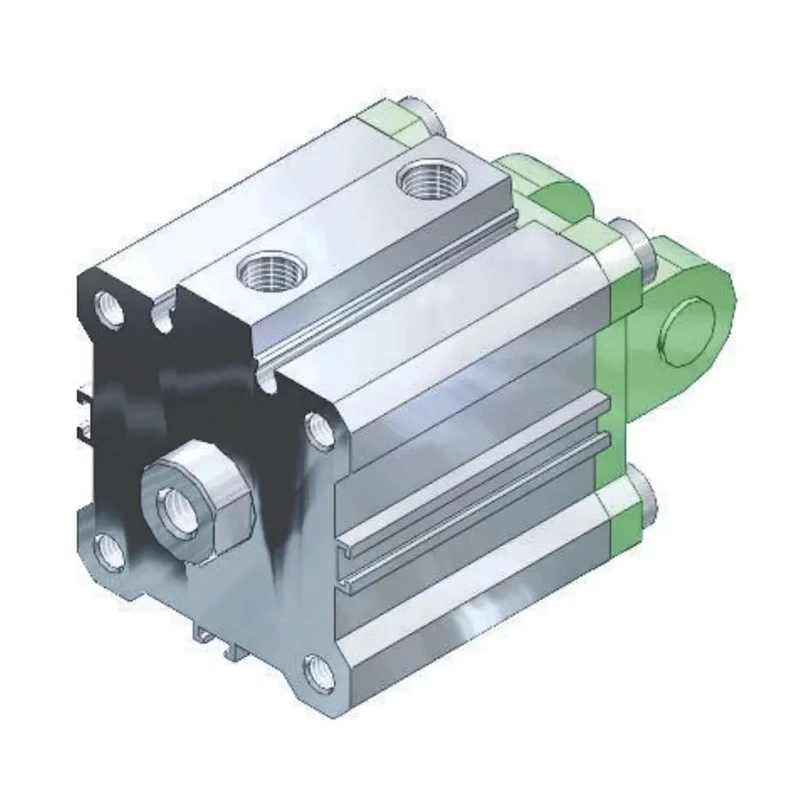

SMC Pneumatic Compact Cylinder Aluminium Alloy Double Acting 12mm Bore 20mm Stroke CDQSB12-20D

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder Aluminium Alloy Double Acting 12mm Bore 20mm Stroke CDQSB12-20D



Category Pneumatic Compact Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1.5 Mpa
Height	25mm
Length	40.5mm
Model	CDQSB12-20D
Gross Weight	49g
Width	25mm
Mount Type	Through Hole
Series	CDQS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	20mm
Bore Diameter	12mm
Rod Type	Single
Action Type	Double Acting
Piston Rod Gender	Female
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	6 mm

Key Features

Constructed with lightweight aluminium alloy for durability and corrosion resistance.
Double acting piston design enables bidirectional movement.
Maximum operating pressure of 1.5 MPa suited for varied pneumatic applications.
Compact dimensions with 40.5mm length, 25mm width and height for space-saving installation.
Supports maximum piston speed of 500 mm/s to enhance operational efficiency.
Operating temperature range from -10°C to 70°C for versatile environmental suitability.
Features a single rod type with female metric piston rod thread size of 6mm.
Through hole mount type facilitating secure and easy mounting.

Product Description

SMC CDQSB12-20D Pneumatic Compact Cylinder is engineered for industrial automation requiring precise, compact, and reliable actuation. This cylinder belongs to the CDQS series, featuring a 12mm bore diameter and a stroke length of 20mm suitable for small bore applications.

Manufactured from aluminium alloy, the cylinder body ensures lightweight durability and resistance against corrosion, making it suitable for harsh industrial environments. The double acting action type allows movement in both directions controlled by pneumatic pressure, enhancing flexibility.

With a maximum operating pressure of 1.5 MPa and piston speeds up to 500 mm/s, this cylinder supports efficient performance in pneumatic systems. It operates effectively across a temperature range of -10°C to 70°C, accommodating diverse industrial settings.

The design includes a through hole mounting system for straightforward installation, a single rod type, and a female metric 6mm piston rod thread for standardized attachments. Its compact dimensions (40.5mm length, 25mm width, and 25mm height) optimize space usage.

Weighing only 49 grams, this compact cylinder is easy to integrate into automated machinery used across manufacturing, assembly lines, packaging, and pneumatic control systems. Although it carries no specific certifications or approvals, its build and specifications align with common industrial pneumatic application standards.

Constructed with lightweight aluminium alloy for durability and corrosion resistance. Double acting piston design enables bidirectional movement. Maximum operating pressure of 1.5 MPa suited for varied pneumatic applications.

Compact dimensions with 40.5mm length, 25mm width and height for space-saving installation. Supports maximum piston speed of 500 mm/s to enhance operational efficiency. Operating temperature range from -10°C to 70°C for versatile environmental suitability.

Features a single rod type with female metric piston rod thread size of 6mm. Through hole mount type facilitating secure and easy mounting. Weighs approximately 49 grams, simplifying handling and integration. Explore more pneumatic cylinders and actuators by SMC available at EnvMart for tailored industrial automation solutions.
