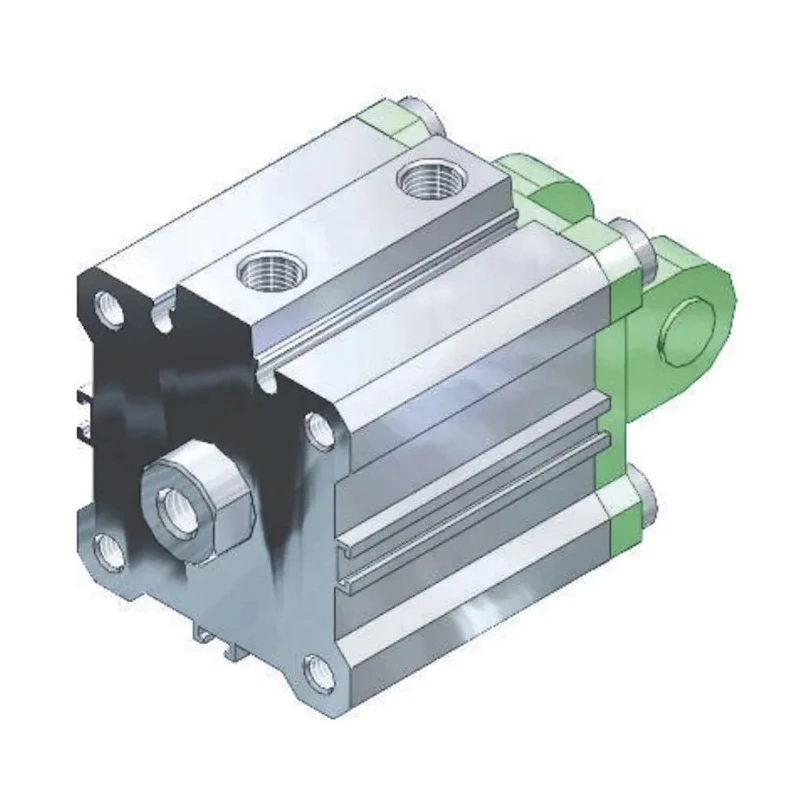

SMC Pneumatic Compact Cylinder 25mm Bore 25 mm Double Acting Aluminium Alloy CDQSB25-25D

SMC CDQSB25-25D Pneumatic Compact Cylinder offers a compact and efficient design with a 25mm bore and 25mm stroke length, optimized for double acting pneumatic operations. Manufactured from corrosion-resistant aluminium alloy, this cylinder balances lightweight construction with durable performance.

The cylinder features a through hole mount type allowing flexible installation in various industrial setups. It is rated for a maximum operating pressure of 1.5 MPa and supports piston speeds up to 500 mm/s, making it suitable for rapid and consistent actuation cycles.

Designed to operate within a temperature range from -10°C to 70°C, it is dependable across diverse environments. The single rod type has a female piston rod with a metric thread size of 12 mm, compatible with standard pneumatic fittings.

This product meets robust proof pressure standards at 15 bar and is available with magnetic or non-magnetic piston options to support integration with auto switch sensors when necessary.

Pneumatic Compact Cylinders like the SMC CDQSB25-25D are essential components in automation, material handling, packaging, and manufacturing systems, providing precise and reliable linear motion control.

Constructed from lightweight aluminium alloy for durability and corrosion resistance. Features through hole mount type for versatile installation options. Maximum operating pressure of 1.5 MPa and piston speed up to 500 mm/s.

Operates reliably in temperatures ranging from -10°C to 70°C. Single rod type with female piston rod, metric thread size 12 mm. Compact dimensions with length 52.5 mm, height and width both 40 mm. Proof pressure rating of 15 bar ensures operational safety.

Magnetic or non-magnetic pistons available according to application needs. Ideal for industrial automation, manufacturing, and pneumatic actuator applications. Explore more pneumatic cylinders and actuators from SMC at EnvMart for enhanced automation solutions.
