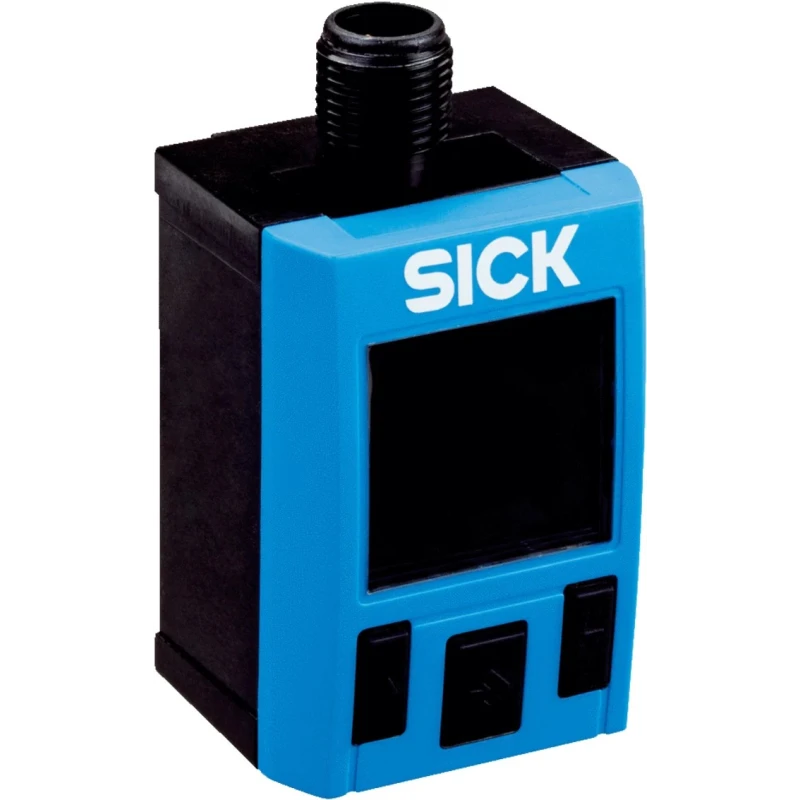

SICK Pressure Switch Gauge Pressure -1 bar to 0 bar, 30V DC, Current 40mA PAC50-ACC / 1062953
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 30V dc |
| Brand | SICK |
| Maximum Operating Pressure | 0 bar |
| Current | 40mA |
| Height | 63mm |
| Model | PAC50-ACC / 1062953 |
| Depth | 35mm |
| IP Rating | IP67, IP65 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | PAC50-ACC |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Gauge Pressure |
| Switch output | NPN, 0 to 10 V, Push Pull + 4 mA to 20 mA, 2 x PNP |
| Port Size | 4 mm |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 0-10V, 4-20 mA |
| Connection Thread Standard | DIN ISO 16030 |
| Minimum Operating Pressure | -1bar |
| Port Gender | Female |
| Suitable Medias | Gas, Air |
Key Features
- Equipped with a large bi-color display showing system pressure and switching points.
- Three large function keys ensure intuitive menu navigation and simple commissioning.
- Provides two independently programmable switching outputs and optional analog output for versatile control.
- IP65/IP67 rated rugged enclosure for high reliability in industrial environments.
- Quick and accurate IO-Link communication reduces downtime and eases sensor replacement.
- Suitable for monitoring pneumatic pressure, leakage, and compressed air in automation and robotics.
- Flexible installation on DIN rails, walls, or switch panels with pressure connections at back and bottom.
- Temperature operating range from 0°C to 60°C with DIN ISO 16030 connection standards.
Product Description
SICK PAC50-ACC / 1062953 Pressure Switch is a high-performance gauge pressure switch designed for industrial pneumatic and vacuum applications. Operating range covers negative pressure from -1 bar up to 0 bar with stable performance at 30V DC and 40mA current draw. It features a robust IP65/IP67 rated enclosure for protection against dust and water ingress, suitable for construction, manufacturing, laboratory, and HVAC environments.
The device includes a large multifunction bi-color display that vividly shows system pressure, output status, and switching points. With three user-friendly function keys, it offers intuitive menu navigation and quick parameter adjustments for precise monitoring and control.
This pressure switch supports two independently programmable switching outputs and an optional analog output (0-10V, 4-20 mA), allowing seamless integration with various control systems. The IO-Link capability enhances operational efficiency by enabling remote configuration and rapid sensor replacement, minimizing downtime during maintenance.
Installation flexibility is provided with pressure connection ports located at both the back and bottom, mounted easily on DIN rails, walls, or switch panels. Certified to EMC Directive 2004/108/EC and EN 61326-2-3 standards, the unit conforms to essential industrial safety and electromagnetic compliance requirements.
Typical applications include compressed air monitoring in machinery, vacuum monitoring in handling and robotics, leakage monitoring in closed compressed air systems, and pneumatic pressure measurement in food processing or automation sectors. This pressure switch is ideal for ensuring system safety and efficiency across diverse industrial processes.
Large bi-color display for clear status indication and switching points. Intuitive operation with three large function keys for easy setup. Programmable switching and analog output for versatile control systems. Durable IP65/IP67 enclosure suited for harsh environments.
Supports IO-Link for rapid sensor data communication and parameter transfer. Flexible installation options including DIN rail mounting and panel fixing. Suitable for gases and air in pneumatic and vacuum applications. Meets EMC Directive and EN standards for industrial compliance.
Optimized for compressed air, vacuum, and leakage monitoring tasks.
Explore more Pressure Switches and sensing solutions in EnvMart’s Industrial Tools & Equipment category for reliable automation and control devices meeting modern manufacturing standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a gauge pressure range from -1 bar to 0 bar.
It operates at 30V DC with a current draw of 40mA.
This unit has an IP65/IP67 rating, providing protection against dust and water ingress.
It supports two independently programmable switching outputs and an optional analog output of 0-10V or 4-20 mA.
The maximum operating temperature is 60°C.
It can be mounted on DIN rails, walls, or switch panels.
It is suitable for gases and air in pneumatic and vacuum applications.
The pressure connection ports have a size of 4 mm and are female gender.
It complies with the EMC Directive 2004/108/EC and EN 61326-2-3 standards for industrial safety and electromagnetic compliance.
It features a large bi-color display that shows system pressure and switching points, with three function keys for intuitive navigation.
The minimum operating temperature is 0°C.
It uses the DIN ISO 16030 connection thread standard.
