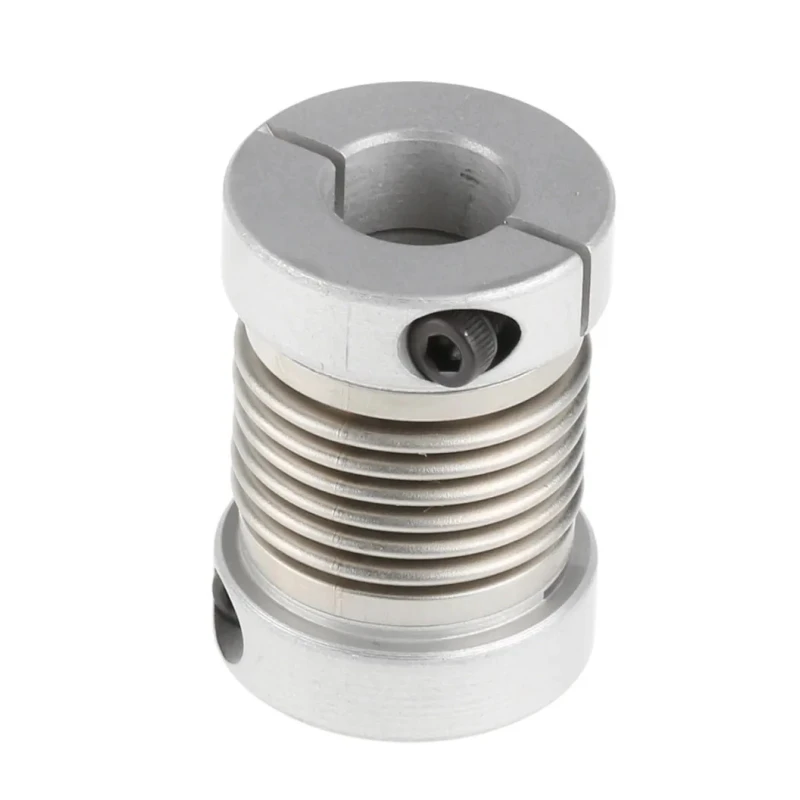

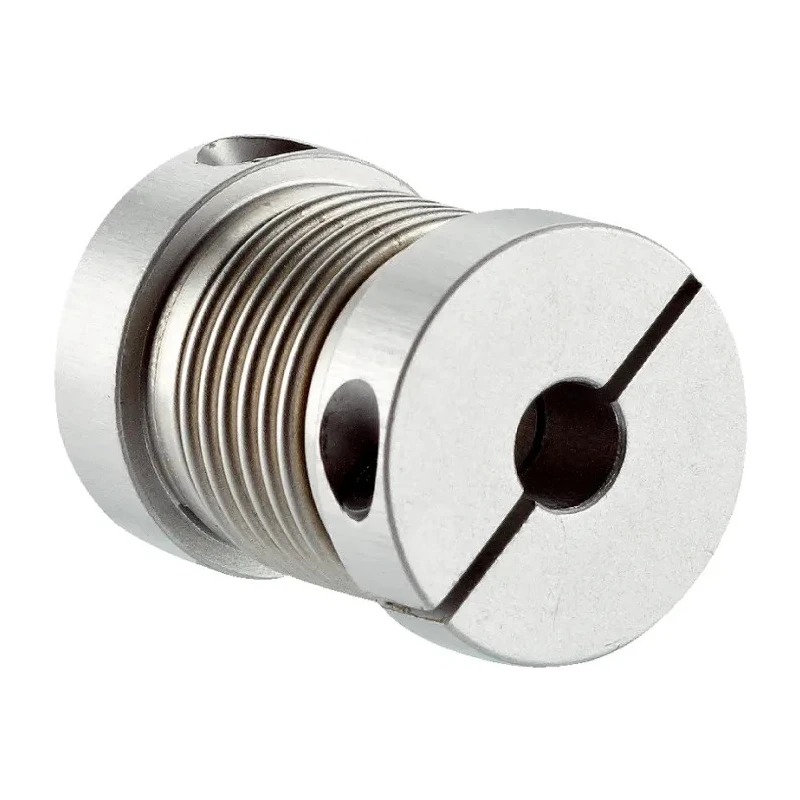

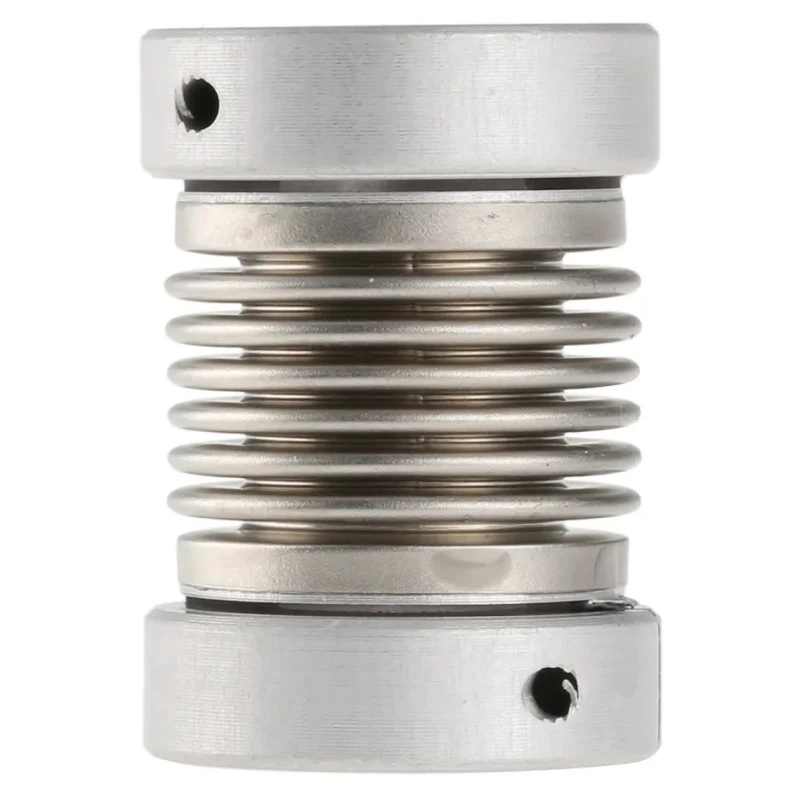

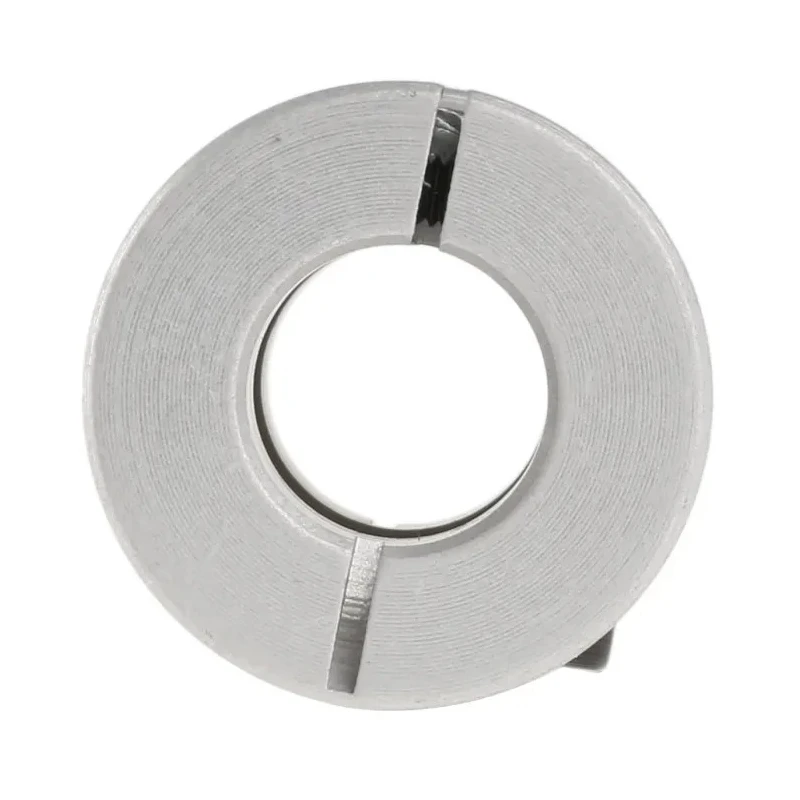

SICK 21 mm Outside Diameter 10 mm Bore 29 mm Length Bellows Clamp Flexible Coupler KUP-1010-B / 5312983

The SICK KUP-1010-B / 5312983 is a precision-engineered bellows clamp flexible coupler designed for mechanical power transmission applications. Featuring a 21 mm outside diameter and a 10 mm bore, this 29 mm length coupler delivers reliable performance in automation and mechanical systems requiring precise torque transmission and misalignment compensation.

Manufactured with stainless steel bellows to provide excellent flexibility, it allows for angular misalignment of up to 4°, parallel misalignment of 0.3 mm, and axial misalignment of 0.4 mm, making it ideal for demanding industrial environments. The aluminium clamp hubs offer both lightweight construction and secure shaft attachment.

Capable of withstanding maximum operating temperatures up to 120°C and minimum temperatures down to -30°C, this coupler supports maximum speed ratings of 10000 rpm and a torque rating of 120 Ncm, suitable for high-speed servo motor connections, conveyor systems, robotics, and printing machinery applications.

Its design ensures precise shaft offset handling with robust clamp-style fastening using DIN 912 A2 standard M2.5 screws. This product is manufactured in Germany, ensuring high-quality standards and durability for long-term industrial use.

Bellows construction provides flexibility for angular misalignment up to 4°. Clamp style secure attachment with 10 mm bore size. Supports torque ratings up to 120 Ncm for robust mechanical performance. Operational speed capability up to 10000 rpm for high-speed applications.

Durable stainless steel bellows and lightweight aluminium hubs construction. Temperature operating range from -30°C to 120°C. Meets DIN 912 A2 standards using M2.5 screws for assembly.

This flexible coupler is essential for precise power transmission in various industrial sectors including robotics, conveyor systems, automation, and printing machinery. Its combination of flexibility, strength, and high torque handling makes it an ideal choice for applications demanding reliable and accurate mechanical coupling solutions.
