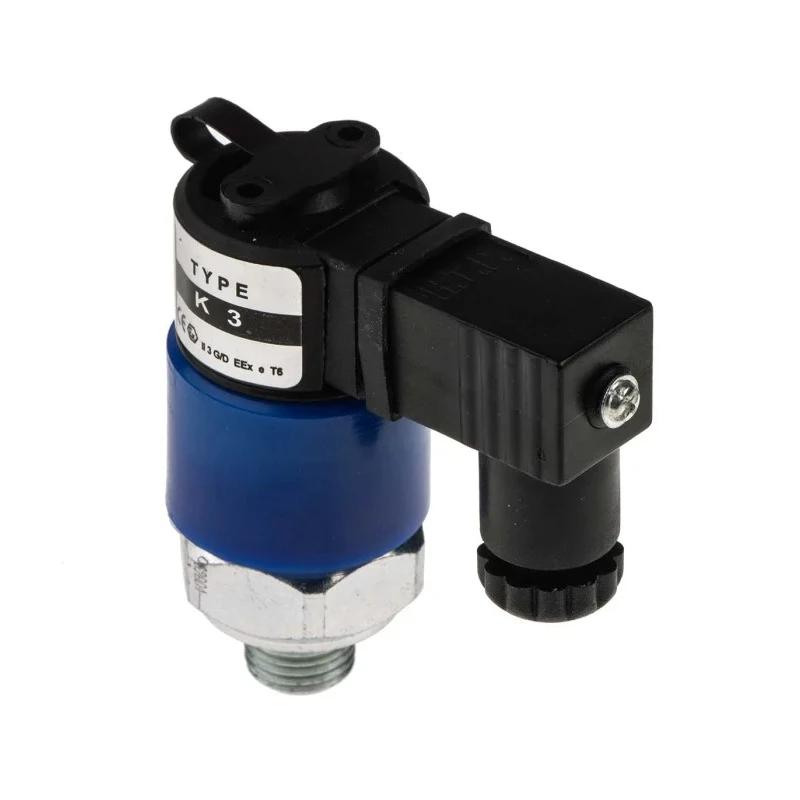

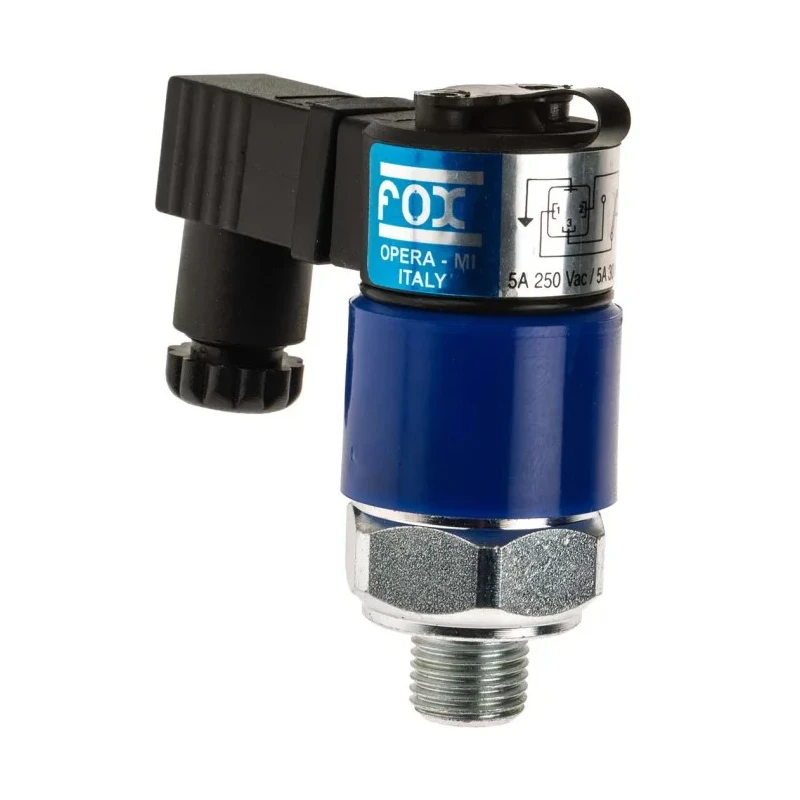

RS PRO Durable Steel Positive Pressure Switch NC 30 bar to 250 bar 250V AC for Hydraulic and Pneumatic Systems 363-6006

RS PRO 363-6006 Pressure Switch is a premium industrial component designed for accurate detection and control of pressure in hydraulic and pneumatic applications. This pressure switch offers an adjustable activation range from 30 bar to 250 bar, providing flexible monitoring capabilities for diverse fluid power systems. Constructed from robust steel, the device ensures durable performance in demanding industrial environments.

The switch operates on 250V AC and supports a maximum current load of 500mA, featuring both normally closed and normally open contacts to accommodate various electrical control schemes. The device is designed for easy installation in any position, using a 1/4 inch BSP parallel male thread for secure fluid connection and a DIN 43650 IP65 rated plug for reliable electrical interface, safeguarding against dust and water ingress.

Key mechanical features include internal mechanical stops that protect the spring and microswitch from damage caused by over pressurization, enhancing device reliability and lifespan. The pressure switch supports switching frequencies up to 120 cycles per minute and maintains an accuracy of ±3% of the set pressure, with fixed hysteresis values of 10% for membrane and 15% for piston types.

The operating temperature range spans from -20°C to +80°C, making this pressure switch suitable for various industrial scenarios, including pumps, compressed air systems, machine tools, process control equipment, valves, and sensors in hydraulics and pneumatics sectors. The compact design is ideal for systems requiring minimal footprint without compromising functionality.

Manufactured in Italy, this RS PRO pressure switch complies with DIN standards and RoHS regulations, ensuring quality and environmental compliance. It does not include hazardous area certification and does not feature an LED indicator.

Durable steel construction for industrial durability. Adjustable positive pressure detection from 30 to 250 bar. Electrical connection with DIN 43650 plug and IP65 rating. Supports both normally closed and normally open switch outputs.

Compatible with 250V AC voltage and 500mA current maximum load. Mechanical stops prevent damage from over pressurization. Wide temperature range from -20°C to +80°C. Compact size with 1/4 inch BSP male thread connection.

Suitable for hydraulic and pneumatic system applications. Compliant with DIN and RoHS standards.

This reliable RS PRO Pressure Switch model 363-6006 is suitable for use in various industrial, manufacturing, process control, HVAC, pneumatic, and hydraulic environments demanding precise pressure monitoring and switching. Explore more RS PRO industrial instrumentation and components at EnvMart.
