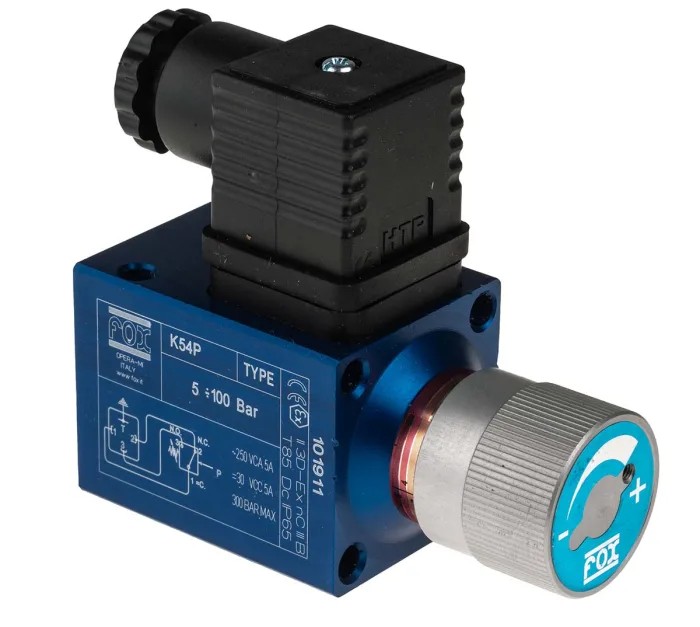

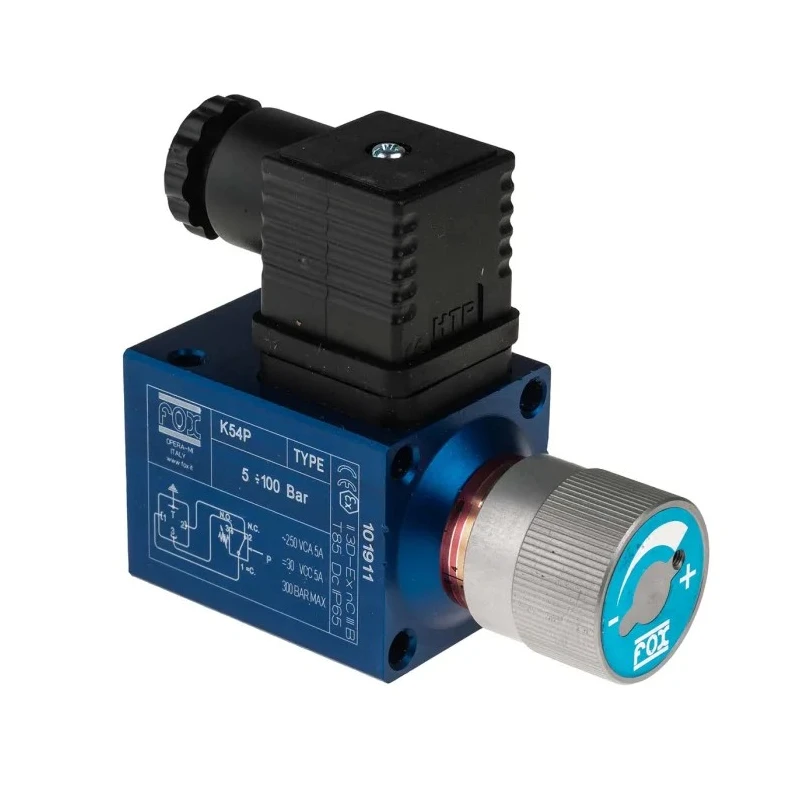

RS PRO Adjustable Pressure Switch NC 5 bar to 100 bar, 1/4 in Port Size, 250 V AC, Oil Media, IP65, Model 296-9995

RS PRO 296-9995 Adjustable Pressure Switch from the trusted RS PRO brand features a pressure range from 5 bar to 100 bar, 1/4 inch port size, and 250 V AC voltage rating, designed for hydraulic and pneumatic system pressure monitoring and control.

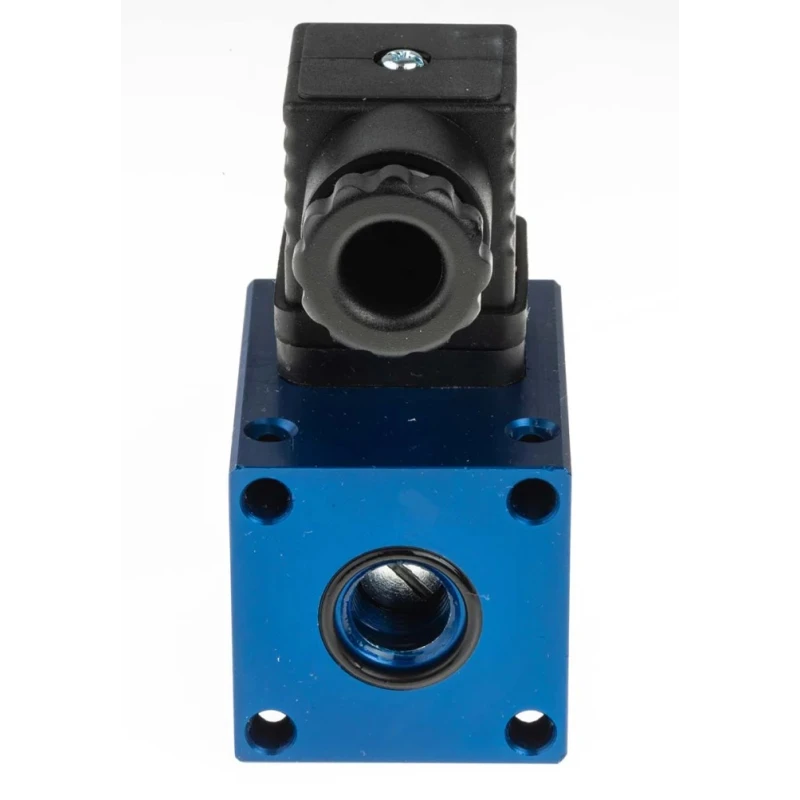

Constructed with robust anodised aluminium housing, this pressure switch is highly durable and corrosion-resistant, featuring an IP65 rating to withstand harsh industrial environments. The unit can be mounted in any orientation and includes a 1/4" BSPF parallel threaded connection for reliable installation.

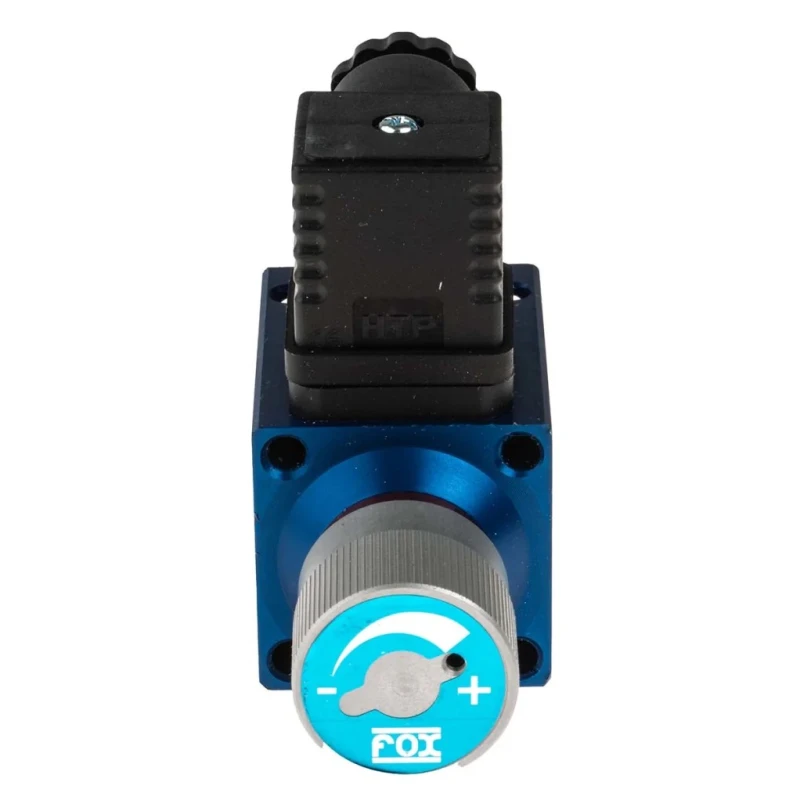

The switch provides electrical output contacts configurable as Normally Closed (NC) and Normally Open (NO), with a switch output current capability of up to 0.5 A at 250 V AC. The pressure setpoint is adjustable with a graduated knob, secured by a grub screw, allowing precise control over activation pressure. Mechanical stops protect the spring and microswitch from overpressurisation, extending the device's mechanical life to 1,000,000 cycles at 70 bar.

The operating temperature range of -20°C to +80°C accommodates various industrial and commercial applications including pumps, compressed air systems, machine tools, process control equipment, hydraulics, and pneumatics. The pressure switch is suitable for use with oil and other positive pressure media. Electrical connections adhere to DIN 43650 standards ensuring compatibility with many control systems.

Robust anodised aluminium construction. 1/4" BSPF parallel thread port. Adjustable pressure setpoint with mechanical stops. NC or NO contact configuration. Switching frequency up to 120 cycles per minute. Long mechanical life of 1 million cycles.

IP65 rated for environmental protection. Operating temperature from -20°C to +80°C. Compatible with oil media and positive pressure applications. Electrical connector DIN 43650 plug.

RS PRO adjustable pressure switches are extensively used in industrial, manufacturing, HVAC, and fluid power industries for monitoring and controlling system pressures efficiently and reliably. Their compact size and robust design make them suitable for installation in both pneumatic and hydraulic systems requiring high-performance pressure detection under industrial conditions.
