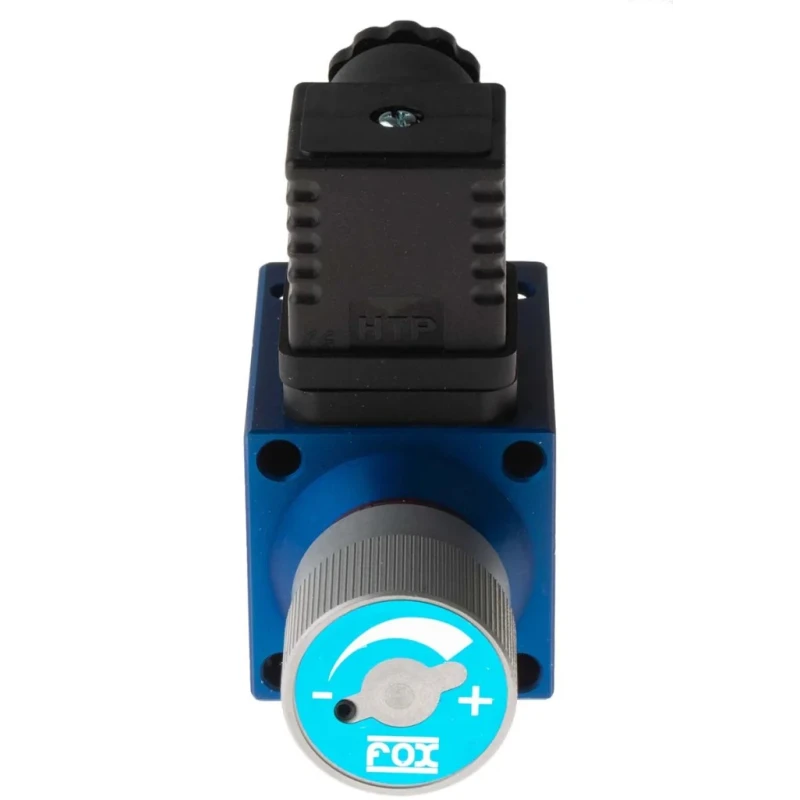

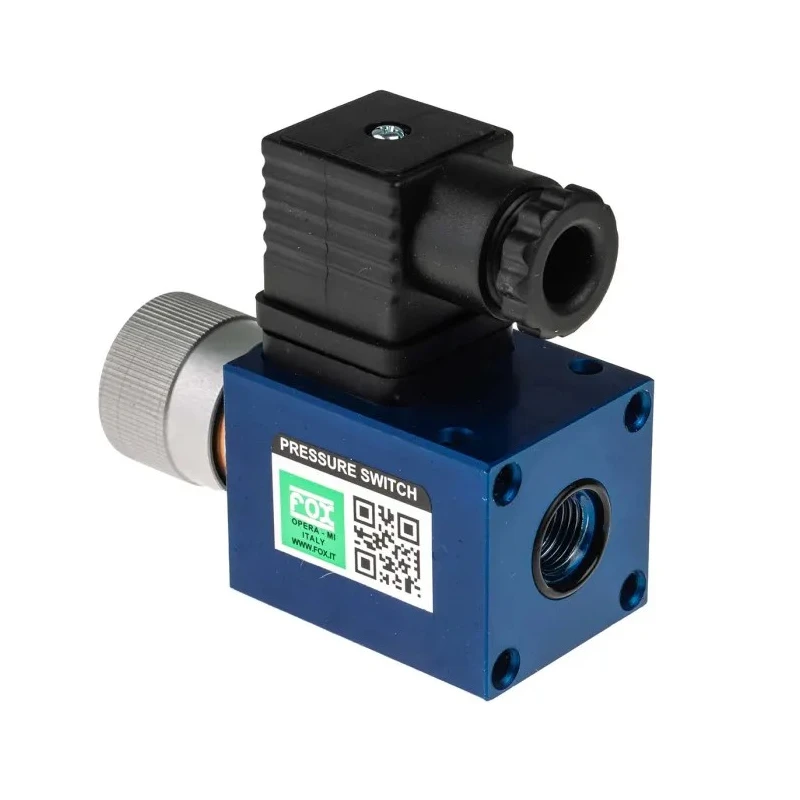

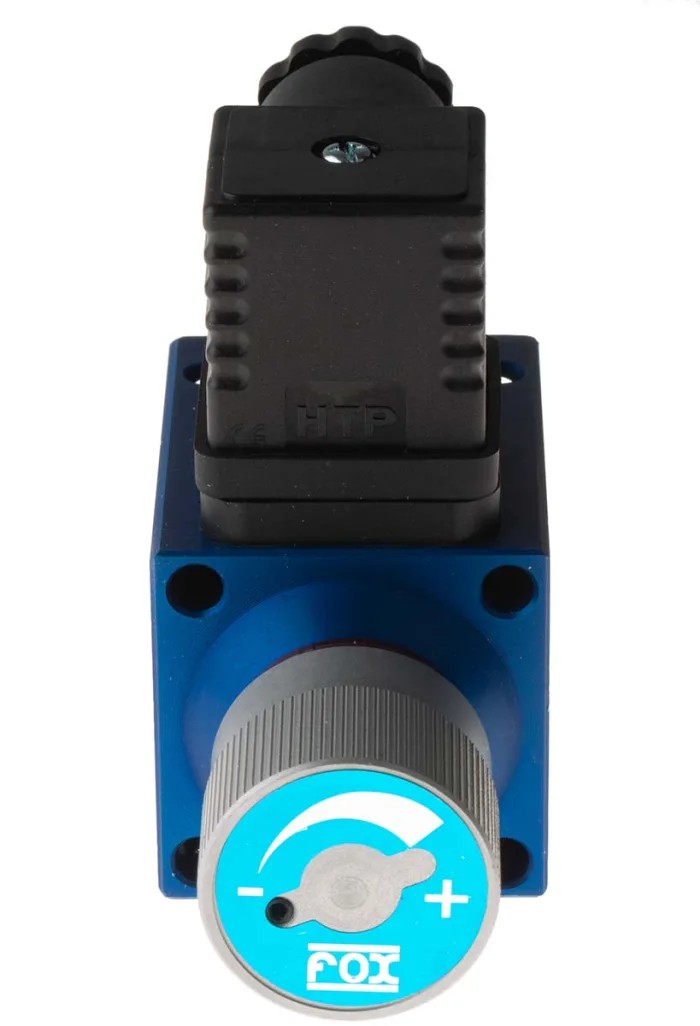

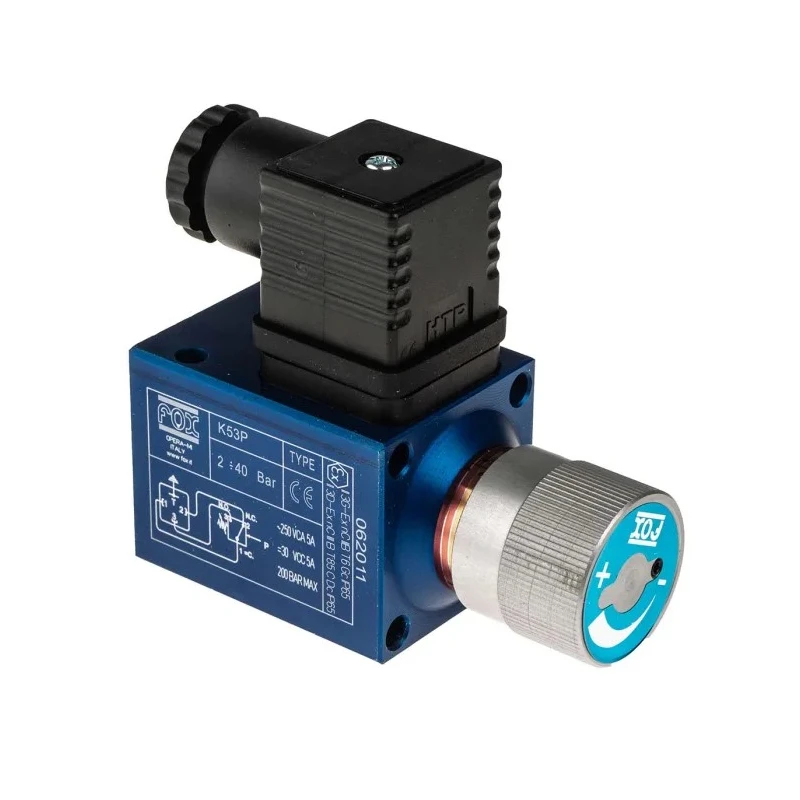

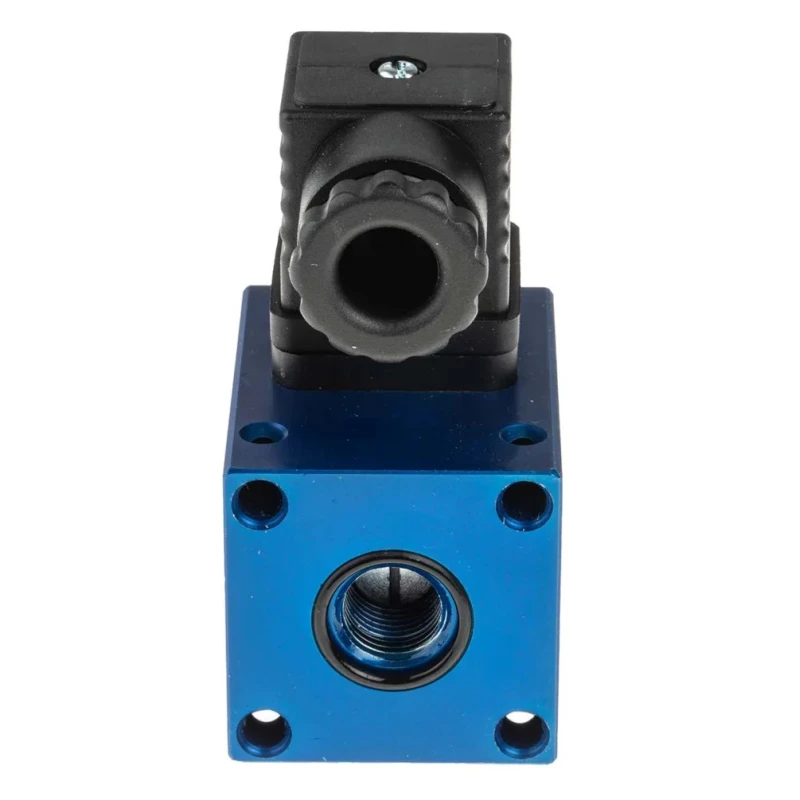

RS PRO Adjustable Pressure Switch 1/4 in Port Size, NC Contact 500mA, 2 to 40 bar, 250V AC, IP65, Italy 296-9989
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 250, 250V ac |
| Brand | RS PRO |
| Maximum Operating Pressure | 40 bar |
| Current | 500mA |
| Model | 296-9989 |
| IP Rating | IP65 |
| Series | RS PRO |
| Maximum Operating Temperature | 80°C |
| Pressure Type | Positive Pressure |
| Contact Configuration | NC |
| Switch output | NO, NC |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS, DIN |
| Connection Thread Standard | G |
| Minimum Operating Pressure | 2bar |
| Suitable Medias | Oil |
| RS PRO Pressure Switch NC 5 bar to 100 barBrand | RS PRO |
Key Features
- Constructed from anodised aluminium for robust durability in industrial environments.
- Switch output supports NO and NC contacts with a 500mA maximum switching current.
- Operates within a wide temperature range of -20°C to +80°C with IP65 protection rating.
- Features mechanical stops to protect the spring and microswitch from over-pressurisation.
- Pre-set pressure is adjustable via a graduated knob, lockable with a grub screw.
- Suitable for use with oil and positive pressure types in pneumatic and hydraulic systems.
- Switches can be mounted in any orientation for versatile installation.
- Complies with RoHS and DIN standards ensuring quality and safety.
Product Description
RS PRO 296-9989 Adjustable Pressure Switch offers reliable and accurate pressure monitoring for hydraulic and pneumatic applications. It provides switch actuation once a pre-set pressure between 2 bar and 40 bar is reached, making it ideal for process control, pumps, valves, and compressed air systems.
The switch body is constructed from robust anodised aluminium, offering durability and corrosion resistance in industrial environments. Its compact design allows mounting in any orientation, enhancing installation flexibility.
The pressure setting can be adjusted clockwise to increase or anti-clockwise to decrease pressure with a graduated knob that is lockable by a grub screw to prevent tampering. Mechanical stops protect the spring and microswitch against damage from excessive pressure.
It features a normally closed (NC) contact configuration supporting a maximum switching current of 500mA at 250V AC. Electrical connections comply with DIN 43650 standards and provide IP65 rated protection against dust and moisture ingress.
This device operates reliably within a temperature range of -20°C to 80°C and is suitable for positive pressure media such as oil. The switch is RoHS and DIN compliant, ensuring it meets modern environmental and safety standards.
Common applications include use in pumps, compressed air systems, machine tools, valves, and general hydraulic and pneumatic controls in industrial manufacturing and process industries.
Set contains one RS PRO pressure switch model 296-9989 manufactured in Italy, offering a compact, cost-effective pressure sensing solution with robust construction and versatile connectivity options.
Constructed from anodised aluminium for durability. Adjustable pressure range from 2 bar to 40 bar. Normal closed switch contacts with 500mA maximum load. IP65 rated DIN 43650 electrical plug connection. Wide operating temperature range from -20°C to 80°C.
Mechanical stops to protect components from over-pressurisation. Suitable for oil and positive pressure media. Can be mounted in any orientation. Compliance to RoHS and DIN standards. For exploring more hydraulic and pneumatic components, visit the Industrial Tools & Equipment category at EnvMart for a comprehensive selection of Pressure Switches and sensors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable pressure range of this pressure switch is from 2 bar to 40 bar.
The switch output supports a maximum switching current of 500mA.
This unit has an IP65 rating, providing protection against dust and moisture ingress.
It operates reliably within a temperature range of -20°C to 80°C.
The pressure switch features a normally closed (NC) contact configuration.
The switch body is constructed from anodised aluminium, offering durability and corrosion resistance.
Yes, it can be mounted in any orientation, providing installation flexibility.
It is suitable for use with positive pressure media such as oil.
The electrical connections comply with DIN 43650 standards.
The port size for this pressure switch is 1/4 inch.
It complies with RoHS and DIN standards, ensuring it meets modern environmental and safety requirements.
Mechanical stops are included to protect the spring and microswitch from damage due to excessive pressure.
