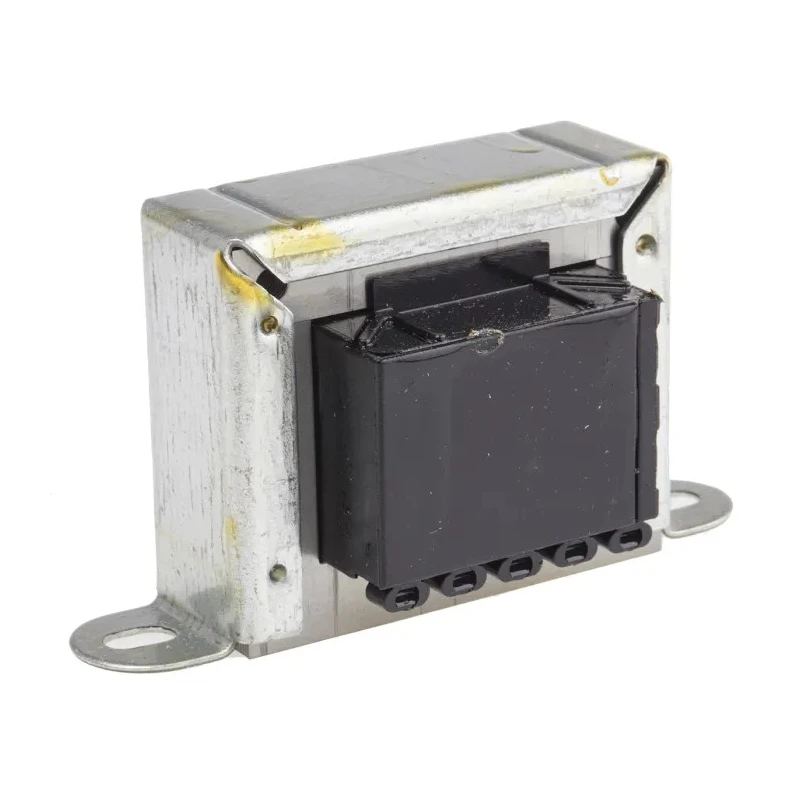

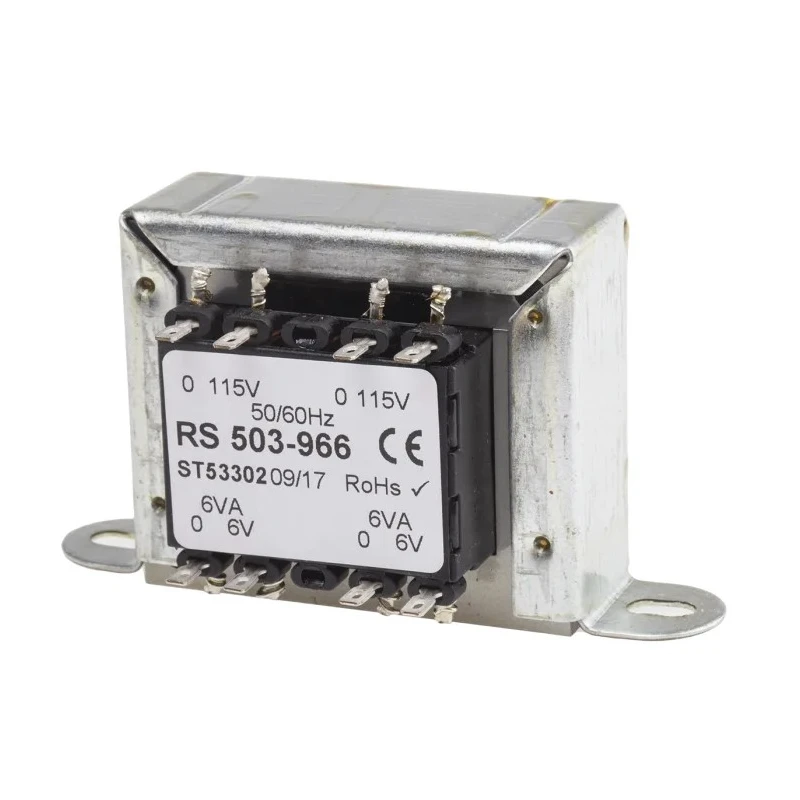

RS PRO 2 Output 12 VA Chassis Mount Transformer, 6 V AC, 2 x 115 V AC Primary, IEC/BS/EN 61558-1, CE, RoHS, AS/NZS 503-966

RS PRO 503-966 2 Output 12 VA Chassis Mount Transformer delivers efficient AC voltage transformation with a secondary output of 6 V AC and dual primary windings each rated 115 V AC. Designed for mounting on chassis, it offers a robust and compact solution for power supply applications in industrial, laboratory, electrical, and electronic environments.

This transformer features a double section bobbin construction with fully shrouded bobbins and full varnish impregnation ensuring excellent electrical insulation and durability. Its dual 115 V AC primary winding can be connected either in series for 230 V operation or parallel for 115 V operation, providing flexibility for varied input voltages.

With two independent secondary windings, the transformer allows series or parallel connection to tailor output voltage and current to specific requirements. The chassis mount design includes two-hole fixing wrap-over clamps and multi-hole frame fixing to facilitate secure mounting in diverse settings.

Tested to rigorous standards including IEC/BS/EN 61558-1, CE, RoHS, AS/NZS 61558.2.6, and EN 60 742, this transformer ensures compliance with international safety and performance norms. It withstands operating temperatures from -30°C to 130°C and frequencies between 50 Hz and 60 Hz, making it suitable for a wide range of industrial and commercial applications.

Dimensionally compact with 59 mm length, 50 mm width, and 50 mm depth, and weighing 1 kg, it is ideal for equipment requiring reliable low-voltage AC power. Solder tag terminations and optional terminal shrouds enhance installation and maintenance convenience.

Durable chassis mount construction with secure fixing options. Dual primary windings configurable for 115 V or 230 V AC input. Two independent secondary outputs, configurable in series or parallel. Wide operating temperature and frequency range for versatile deployment.

Certified to multiple international safety and quality standards. Fully shrouded bobbins with varnish impregnation for insulation. Compact size and moderate weight for easy integration. Tested according to BS3535 and EN 60 742 for assured performance.

This RS PRO transformer is ideal for use in electronic component power supplies, industrial machinery, instrumentation, laboratory equipment, HVAC systems, and commercial electrical systems. It combines reliability, safety, and versatile configuration options to meet demanding operational requirements.
