Legrand 2 Output 220 VA Chassis Mount Transformer, 230 to 400 V Primary, 24 to 48 V Secondary, 50-60 Hz, UL506 CSA 0 428 74

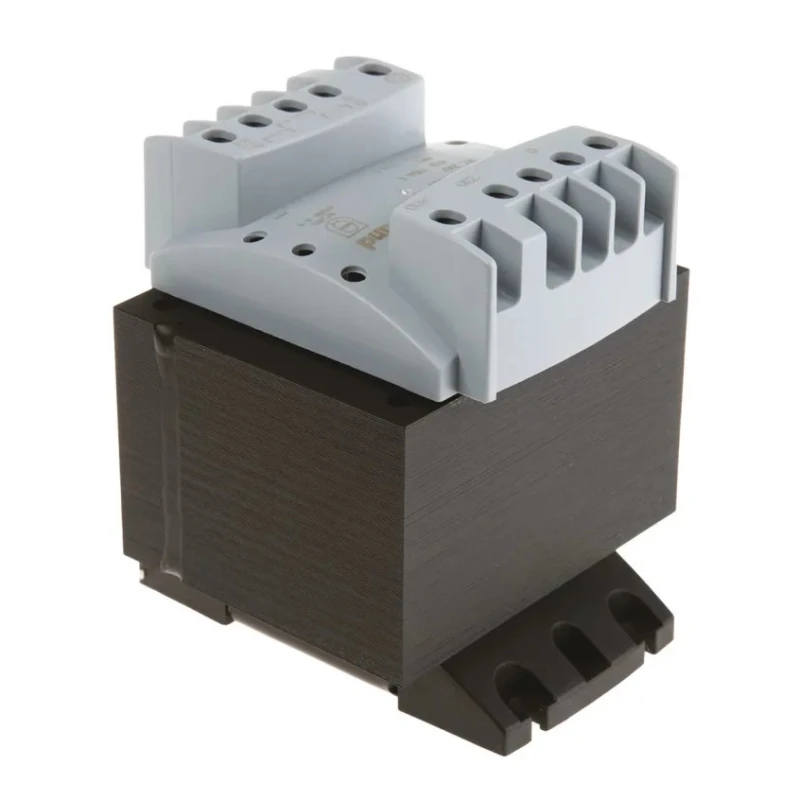

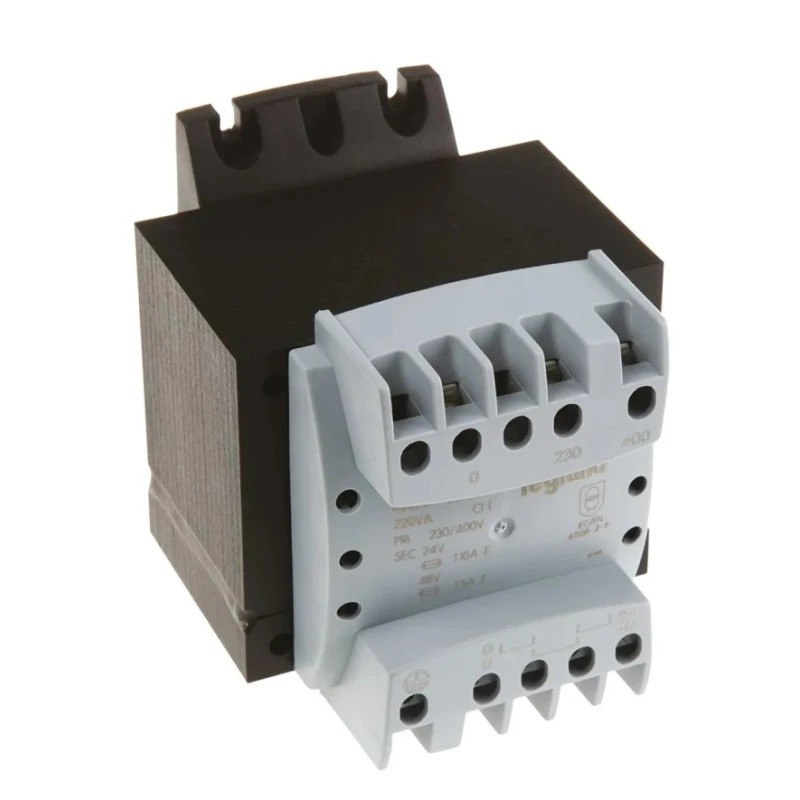

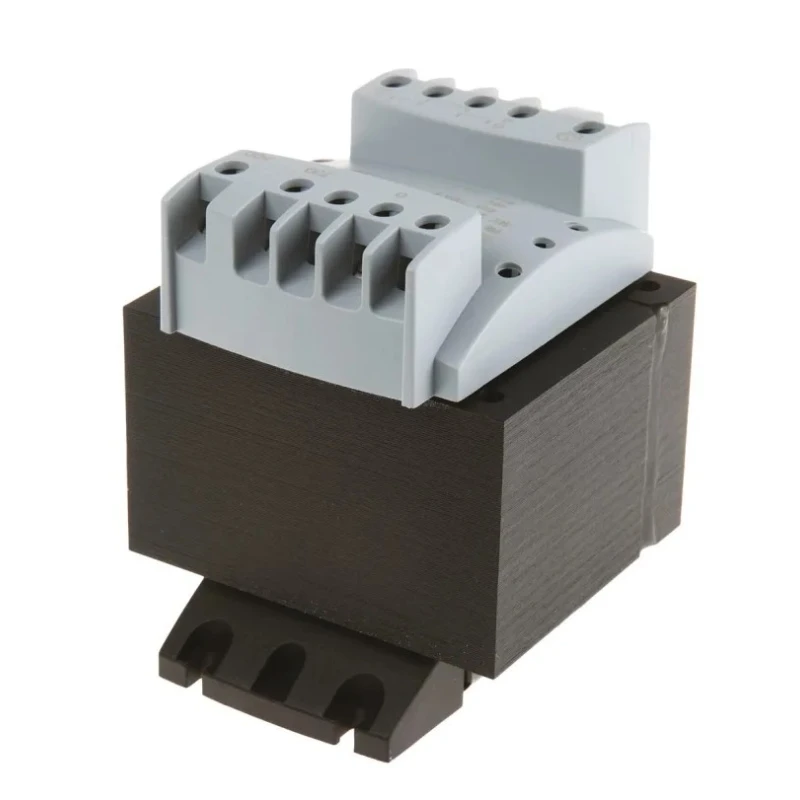

Legrand 0 428 74 220 VA Chassis Mount Transformer is engineered for industrial and electronic applications requiring stable power transformation from 230 to 400 V primary voltage down to 24 to 48 V secondary voltage. This dual-output transformer supports control panels where compactness and reliability are critical, complying with strict safety and operational standards such as UL506, CSA C22-2-N°66, EN 61131-2 and IEC/EN 61558-2-2.

Designed with insulated windings, it ensures secure electrical isolation and reliable performance under typical operating temperatures up to 35°C. The transformer is equipped with permanently marked, fully shrouded screw terminals to facilitate safe and clear connections on control panels.

Ideal for industrial, manufacturing, HVAC, and electrical power distribution systems, the transformer fits easily into compact spaces with dimensions of 110 mm length, 96 mm width, and 115 mm depth. Its 3.4 kg weight allows secure chassis mounting ensuring stability without excessive load considerations.

The product does not include mounting clips, but mounting solutions are available as accessories for DIN rails or direct screw fixing, enabling flexible installation options. It conforms to rigorous standards ensuring quality and safety compliance for demanding environments.

Two outputs provide power versatility in control panel designs. Insulated winding guarantees safe electrical isolation. Compact open type construction optimizes panel space usage. Dual primary voltage winding supports 230 / 400 V operation.

Fully shrouded screw terminals with permanent markings ensure ease of installation. Conforms to multiple international safety and quality standards. Robust build with a maximum operating temperature of 35°C. Dimensions facilitate easy integration into equipment housings.

Made in France, reflecting high manufacturing standards.

This Legrand Chassis Mount Transformer is suited for diverse industrial applications including electrical power supply, automation control panels, and machinery requiring tested and certified electrical components. Browse more high-quality transformers and power components at EnvMart to find ideal solutions for your projects.
