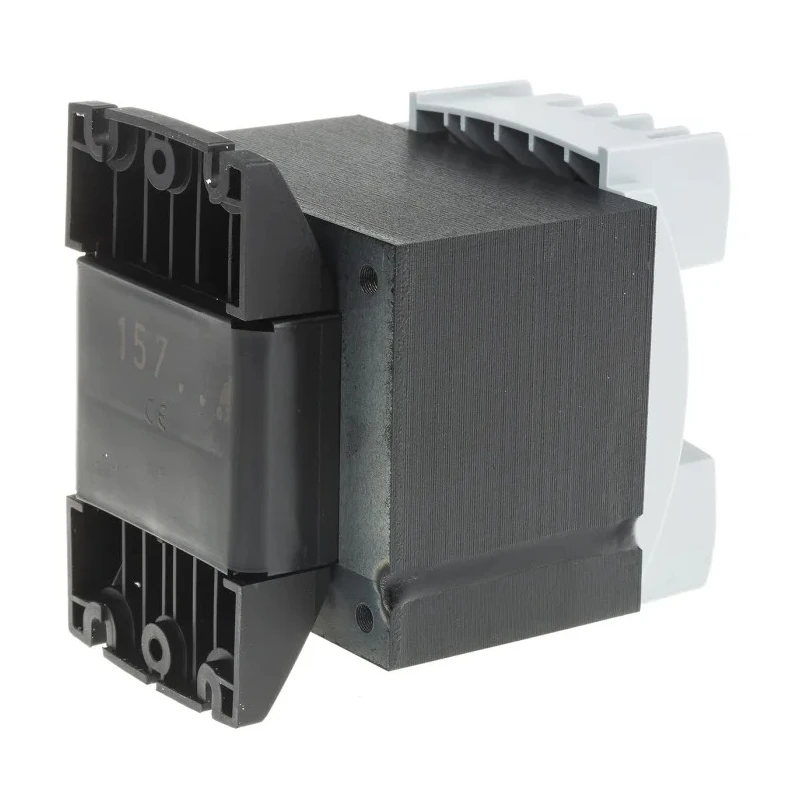

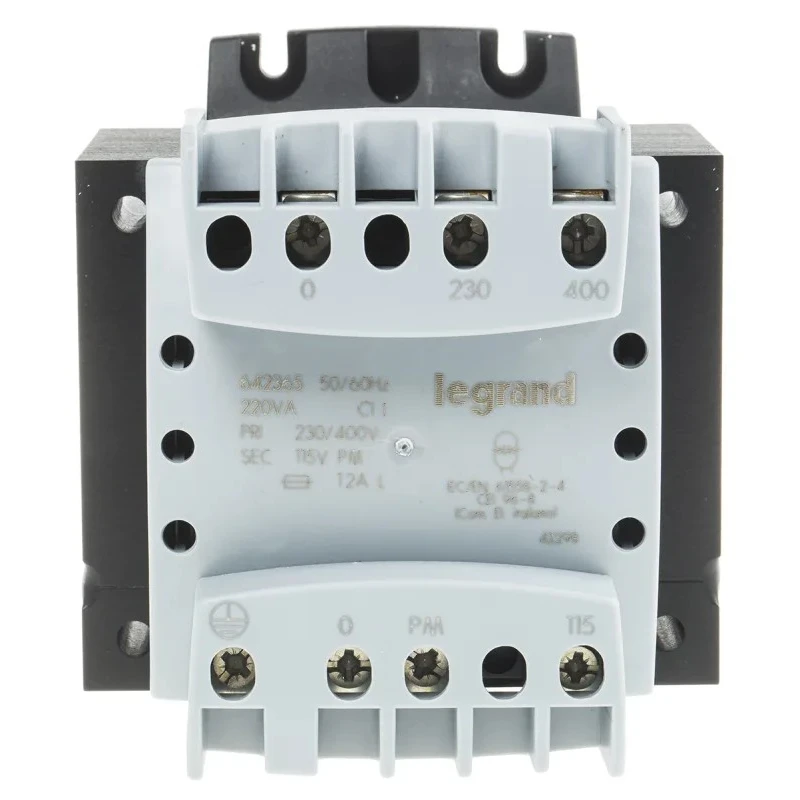

Legrand 1 Output 220 VA Chassis Mount Transformer, 115 V, IEC/EN 61558-2-6, IEC/EN 61558-2-2, UL506 UL506

Legrand UL506 1 Output 220 VA Chassis Mount Transformer is engineered for effective voltage transformation with an output voltage of 115 V and power rating of 220 VA. Its design incorporates a compact open type control panel construction suitable for industrial and commercial electrical installations. The transformer features insulated winding and fully shrouded screw terminals with permanent marking, facilitating safe connection and operation.

With a primary voltage range of 230 to 400 V and frequency operation between 50 to 60 Hz, this chassis mount transformer delivers consistent performance under specified conditions. The maximum operating temperature of 35°C ensures durability in controlled environments. Dimensions of 96mm by 96mm allow for easy chassis installation with fixing hole diameter of 11mm. Mounting clips are not supplied but can be attached using accessories or by direct screw fixing.

The unit adheres to multiple safety and operational standards including IEC/EN 61558-2-6, IEC/EN 61558-2-2, UL506, EN 61131-2, IEC/EN 61558-2-4, EN 60204-1, EN 60439-1, and CSA C22-2-N°66, ensuring compliance in various regulatory environments. Manufactured in France, it is suitable for applications in industrial control panels, machinery, and electrical power supplies requiring reliable voltage conversion and isolation.

Designed for primary voltage range 230 to 400 V with single output. Features insulated winding for enhanced electrical safety. Compact dimensions of 96mm length and 96mm width facilitate easy chassis mounting. Suitable for operating frequencies from 50 Hz to 60 Hz.

Maximum operating temperature is 35°C for reliable performance. Fully shrouded screw terminals with permanent markings. Dual standard primary winding allows use at 230 or 400 Vac. Compatible with available protection devices for safe installation.

Manufactured in France with quality standards adherence.

This Chassis Mount Transformer is ideal for industrial, electrical distribution, control panel, and commercial applications requiring efficient voltage transformation. For additional components or related products, explore the EnvMart range of transformers and power supplies to find complementary solutions.
