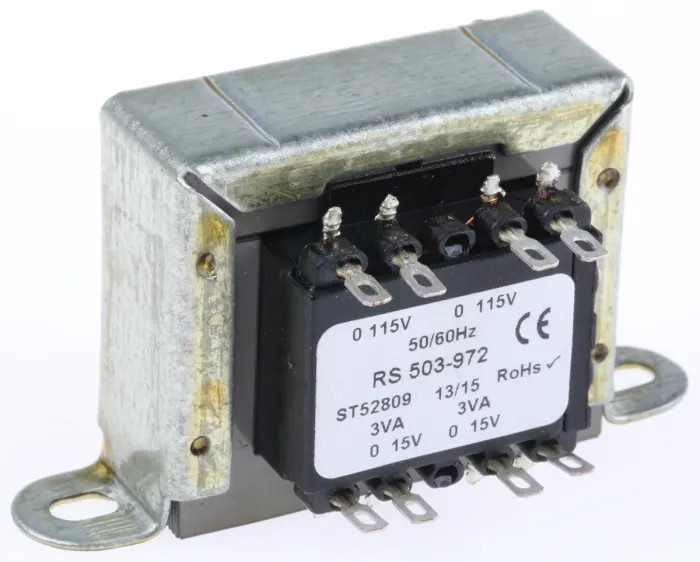

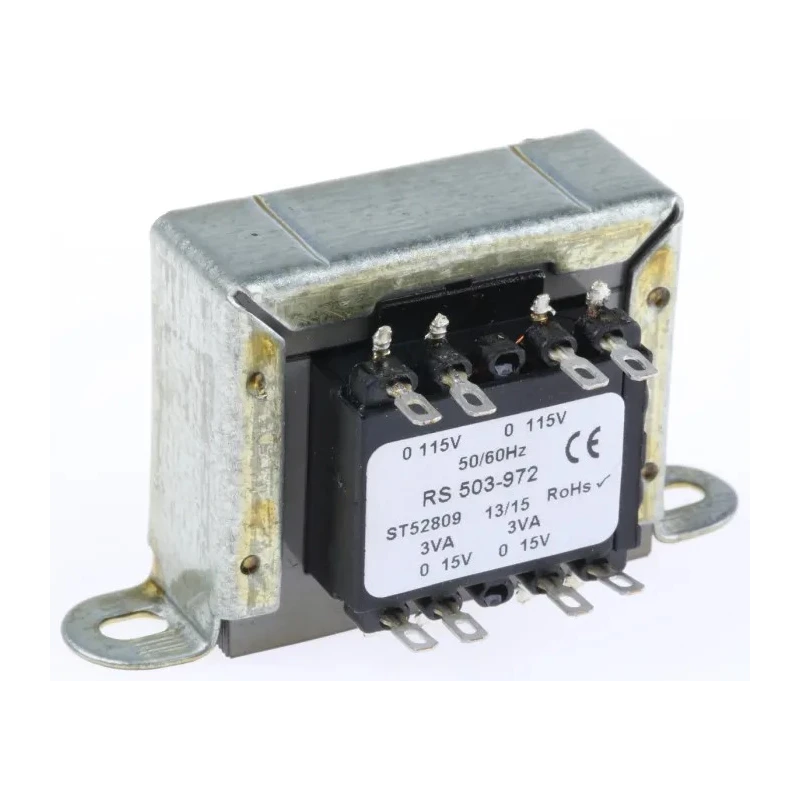

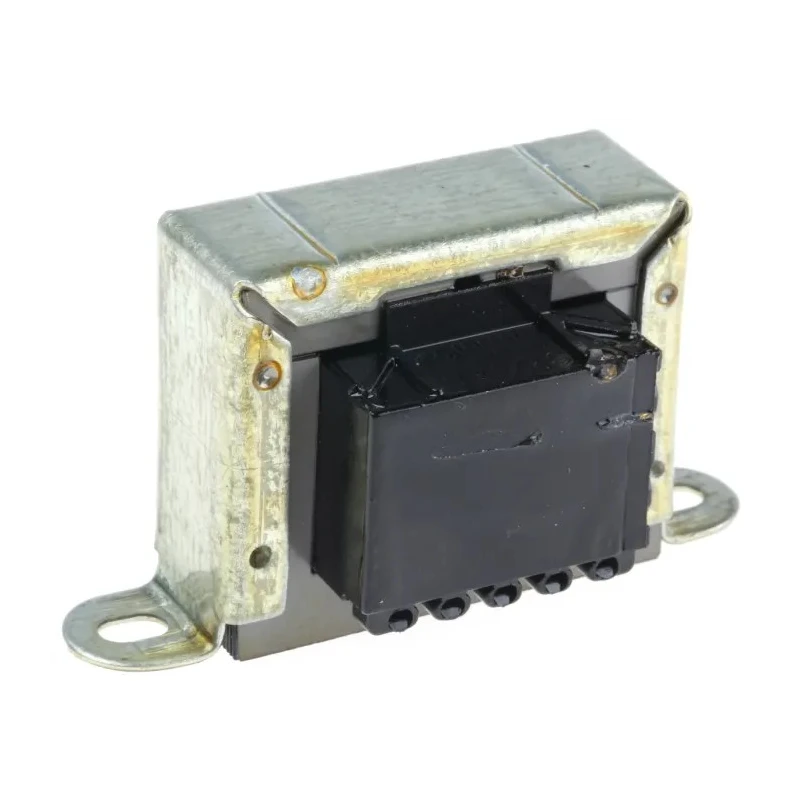

RS PRO 2 Output 6 VA Chassis Mount Transformer, 15 V ac, AS/NZS 61558.1, IEC/BS/EN 61558-2-6 503-972

RS PRO 503-972 2 Output 6 VA Chassis Mount Transformer is a high-quality electrical component designed for reliable power conversion in industrial and electronic applications. It provides a 15 V ac output with two independent outputs suitable for varied powering needs.

Constructed with double section bobbin and fully shrouded bobbins featuring full varnish impregnation, this transformer ensures excellent electrical safety and insulation. Its chassis mount clamp and two-hole wrap-over clamps allow robust and secure installation in electronic assemblies.

Designed to operate with a primary voltage of 2 x 115 V ac, it allows flexible connection either in series for 230 V operation or parallel for 115 V operation, covering common mains supply voltages. The transformer functions effectively within a wide temperature range, from -30°C to 130°C, accommodating diverse environmental conditions.

The device meets stringent international standards, including AS/NZS 61558.1, IEC/BS/EN 61558-2-6, and is RoHS and CE compliant, ensuring both safety and environmental regulations are upheld. Operating frequency ranges from 50 Hz to 60 Hz further enhance compatibility with mains supplies worldwide.

Key features include multi-hole frame fixing and solder tag terminations, with optional terminal shrouds available. Tested according to BS3535 and EN 60 742, it offers dependable performance in industrial and commercial electronic applications.

Compact and lightweight, measuring 45 mm in length, 40 mm in width, and 37 mm in depth, and weighing 210 g, it is suitable for chassis mounting in power supplies, control cabinets, and electrical panels.

Manufactured in Poland, this RS PRO Chassis Mount Transformer is ideal for industrial automation, power supply modules, and other electronic instrumentation requiring stable low voltage AC power.

Equipped with double section bobbin construction for safety and durability. Fully shrouded bobbins with full varnish impregnation ensure insulation. Includes chassis mount clamp and wrap-over clamps for stable mounting. Tested to meet standards BS3535 and EN 60 742 for quality assurance.

Operates efficiently between -30°C and 130°C temperatures. Designed for 50Hz to 60Hz frequency operation for flexible compatibility. Primary windings allow series or parallel connection for 115 V or 230 V input. Two independent secondary windings configurable in series or parallel.
