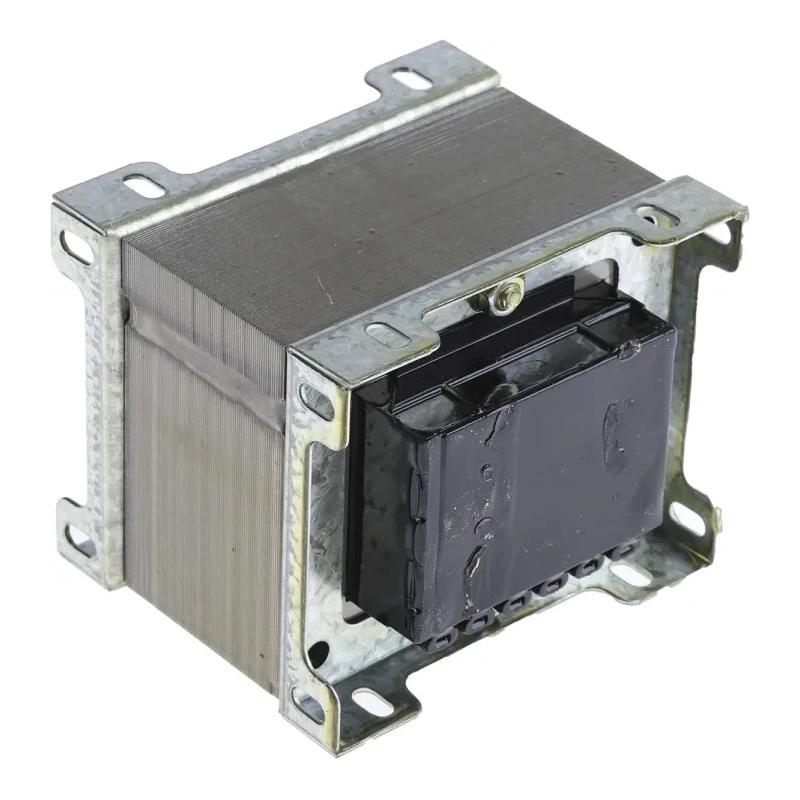

RS PRO 2 Output 200 VA Chassis Mount Transformer, 230 V ac Primary, 24 V ac Secondary, 50-60 Hz, 2 Outputs, Poland 504-060

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 200 VA Chassis Mount Transformer, 230 V ac Primary, 24 V ac Secondary, 50-60 Hz, 2 Outputs, Poland 504-060

Name: RS PRO 2 Output 200 VA Chassis Mount Transformer, 230 V ac Primary, 24 V ac Secondary, 50-60 Hz, 2 Outputs, Poland 504-060
Brand: RS PRO
SKU: 164156
Price: 80.28 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	79mm
Model	504-060
Depth	65mm
Gross Weight	2.8kg
Width	75mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 75VA 2 Output Chassis Mounting Transformer, 24V acBrand	Walsall Transformers

Key Features

200 VA power rating suitable for a wide range of industrial applications.
Two secondary outputs can be connected in series or parallel for flexible voltage and current options.
Chassis mount design with multi-hole frame fixing for secure installation.
Operates efficiently within temperature range of -30°C to 70°C.
Complies with multiple international standards including ASNZS 61558 and IECBSEN certifications.
Fully varnished chassis and double section bobbin provide durability and electrical isolation.
Solder tag termination ensures secure and effective connectivity.
Ideal for electromagnetic applications, relays, pumps, speed changers, and heating elements.

Product Description

RS PRO 504-060 2 Output Chassis Mount Transformer is a premium quality industrial transformer designed for efficient power conversion in various electrical and electronic systems. It operates at a primary voltage of 230 V ac and provides two secondary outputs of 24 V ac with a power rating of 200 VA, suitable for numerous applications requiring isolation and voltage transformation.

The transformer features a chassis mount frame construction with a fully varnished and impregnated magnetic core, ensuring electrical insulation and robust mechanical strength. The double section bobbin design protects the primary winding, while the solder tag termination provides reliable electrical connections.

Designed to operate within a temperature range from -30°C to 70°C and frequency range of 50-60 Hz, this transformer meets strict industrial standards such as ASNZS 61558..6, ASNZS 61558.1, IECBSEN 615584, IECBSEN 615581, and CE marking, certifying its safety and compliance for global industrial use.

The two separate secondary windings offer flexibility in output voltage and current by allowing series or parallel connections. This makes the transformer ideal for varied applications including electromagnetic devices, electrical relays, pumps, speed changers, and heating elements.

With a compact size of 79 mm length, 75 mm width, and 65 mm depth, and a weight of 2.8 kg, it is designed for stable mounting and ease of installation in control panels and chassis frames.

200 VA power rating with dual output windings. Chassis mount with multi-hole fixing for secure installation. Robust and fully insulated construction for safety and durability. Operates between -30°C and 70°C ambient temperature.

Complies with international safety and quality standards. Flexible secondary winding configuration for series or parallel use. Supports industrial electromagnetic and control system applications. Compact dimensions suitable for panel mounting.

Manufactured in Poland ensuring premium build quality.

This RS PRO Chassis Mount Transformer is a trusted component for electrical engineers and system integrators seeking reliable power isolation and voltage transformation. Explore more transformers and power supply solutions at EnvMart to support your industrial and commercial needs.
