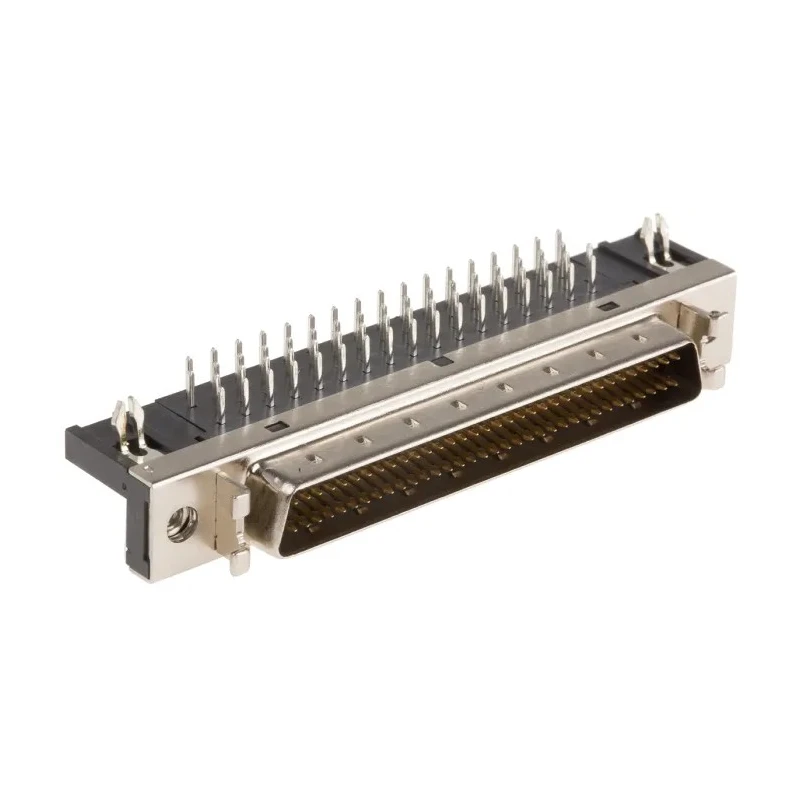

MH Connectors SCSI 68 Way Male Right Angle Through Hole SCSI Connector 2.54 mm Pitch 500mA 500V AC 3700-0121-01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V ac |
| Brand | MH Connectors |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SCSI |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 68 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- 68 contacts ensure high density connectivity.
- Right angle orientation facilitates PCB mounting in tight spaces.
- Through hole mount type provides robust mechanical connection.
- Phosphor bronze contacts plated with gold for reliable conductivity and corrosion resistance.
- Housing made of liquid crystal polymer for durability and thermal resistance.
- Supports voltage up to 500V AC for versatile electronic applications.
- Operational temperature range from -55°C to 85°C suits varied environments.
- RoHS compliant ensuring environmental safety and conformance.
Product Description
MH Connectors 3700-0121-01 SCSI 68 Way Male Right Angle Through Hole SCSI Connector features a 2.54 mm pitch and is designed for reliable solder termination on printed circuit boards. It carries a current of 500mA and operates safely at voltages up to 500V AC, suitable for industrial and electronic applications requiring robust and dense connector solutions.
The connector’s 68 gold-plated phosphor bronze contacts ensure excellent conductivity and resistance against corrosion, which is critical in industrial, laboratory, and manufacturing environments. Its liquid crystal polymer housing delivers exceptional mechanical strength and thermal stability within an operating temperature range from -55°C to 85°C, allowing it to withstand demanding conditions.
Engineered with a right angle orientation and through hole mounting style, this connector enables compact assembly and secure PCB attachment. The 2.54 mm pitch complies with standard SCSI Connector specifications, making it compatible with devices designed to meet ANSI requirements of SCSI 2 and SCSI 3 interfaces.
As a RoHS certified component, this connector supports environmentally responsible manufacturing practices. It originates from Taiwan, Province Of China, ensuring quality and manufacturing standards.
This connector is ideal for use in electronics manufacturing, data systems, computing interfaces, and other industrial applications requiring reliable SCSI connections. High density 68 contact count enables compact yet comprehensive connectivity.
Right angle, through hole mount provides robust PCB integration. Gold plating on phosphor bronze terminals maximizes signal integrity. Durable liquid crystal polymer housing withstands mechanical and thermal stress. Voltage rating of 500V AC allows for wide application range.
Wide temperature operating range supports harsh environments. RoHS compliant for eco-friendly production standards. Explore the Electronics & Electricals category on EnvMart for more connectors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 500V AC, making it suitable for various electronic applications.
This SCSI connector can carry a current of up to 500mA.
The housing is made of liquid crystal polymer, while the contacts are phosphor bronze plated with gold for enhanced conductivity and corrosion resistance.
The pitch size of this connector is 2.54 mm, which complies with standard SCSI specifications.
This connector operates within a temperature range of -55°C to 85°C, suitable for varied environmental conditions.
It features a through hole mount type, allowing for robust mechanical connection and secure attachment to printed circuit boards.
This SCSI connector has a right angle orientation, facilitating compact assembly in tight spaces.
This model features 68 contacts, providing high-density connectivity for various applications.
Yes, this connector is RoHS compliant, ensuring it meets environmental safety and conformance standards.
It uses solder termination, which is designed for reliable connections on printed circuit boards.
This connector originates from Taiwan, Province Of China, ensuring adherence to quality and manufacturing standards.
This SCSI connector is ideal for use in electronics manufacturing, data systems, computing interfaces, and other industrial applications requiring reliable SCSI connections.
