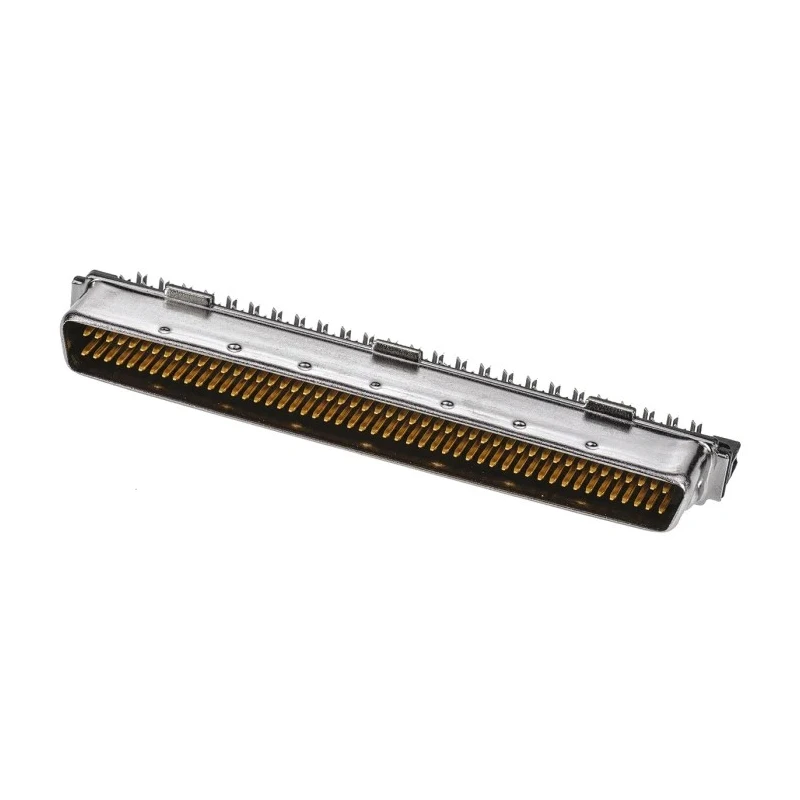

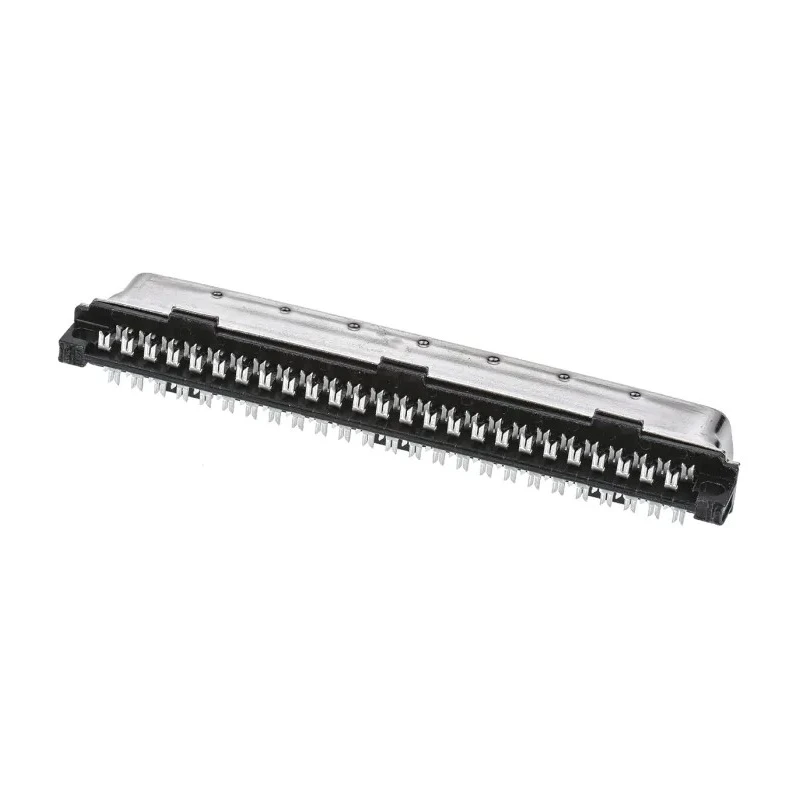

TE Connectivity AMPLIMITE 0.50 100 Way Male Right Angle Cable SCSI Connector 1.27 mm Pitch, Latch Block, IDC 5749621-9

TE Connectivity 5749621-9 AMPLIMITE 0.50 100 Way Male Right Angle Cable SCSI Connector is a high-performance D-subminiature connector from the AMPLIMITE .050 Series III line. Featuring a compact design with a pitch of 1.27 mm, this connector supports 100 contacts arranged for high-density cable connections. Its right angle orientation and cable mount type are designed for versatile integration into electronic assemblies.

The contacts are manufactured from phosphor bronze and plated with gold over nickel, ensuring superior electrical conductivity and corrosion resistance. The thermoplastic housing offers robust mechanical support and insulation. The connector incorporates a latch block for secure mating and ease of use, facilitating quick connection and disconnection in demanding industrial environments.

Rated at 1 ampere current and 30 volts AC, this connector is suitable for a wide range of applications including industrial machinery interfaces, medical instrumentation, computing peripherals, and file servers. The operating temperature range extends from -55°C to 105°C, enabling reliable performance across extreme temperatures.

The AMPLIMITE 0.50 Series connectors also provide excellent EMI/RFI protection via their steel shell with tin nickel plating. Termination is via IDC (Insulation Displacement Contact) technology, which allows efficient and economical wire or ribbon cable termination without soldering. Backshell kits and additional accessories can be ordered separately for enhanced protection and alignment.

This 5749621-9 model is compliant with various industry standards including SCSI-2, SCSI-3, EIA RS-232, and more, ensuring interoperability and performance in computing and industrial control applications. The compact design and reliable connection features make it ideal for use in electronic assembly, manufacturing, laboratory instrumentation, and other commercial and industrial environments.

Compact 100 contact design with 1.27 mm pitch supports high density cabling. Right angle cable mounting enhances layout flexibility. Gold plated phosphor bronze contacts provide reliable electrical performance. Thermoplastic housing offers durable electrical insulation and mechanical strength.

Latch block enables secure connector mating and quick disconnection. Rated for 1A current and 30V AC voltage suitable for diverse electronics. Operating temperature from -55°C to 105°C accommodates harsh environments. IDC termination ensures fast, cost-effective cable connections without soldering.

Excellent EMI/RFI protection through steel shell with tin nickel plating. Product widely used in industrial machinery, medical devices, computer peripherals, and more. Explore more high-quality connectors and cable assemblies at EnvMart for your industrial and electronic component needs.
