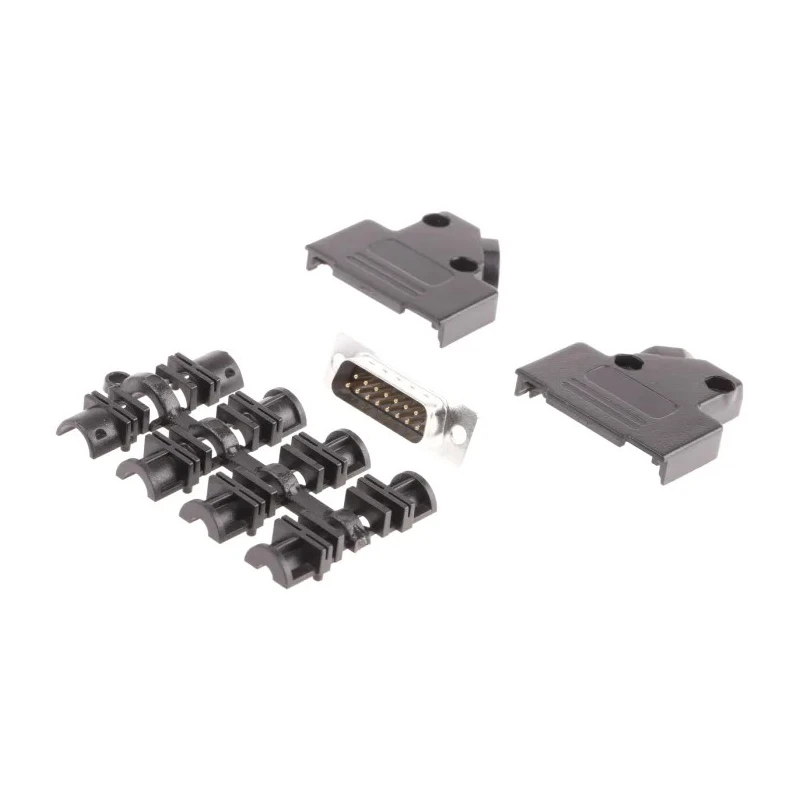

MH Connectors 15 Way 45° D-Sub Connector Plastic Housing, 250V, 5A Current MHD45PPK

MH Connectors MHD45PPK is a 15 Way 45° angled D-Sub connector structured for electronic and power connection applications. It supports a voltage of 250V and a current rating of 5A with solder bucket terminations for secure wiring. The backshell housing is constructed from UL94 V-0 ABS Polylac plastic, providing excellent flame resistance and mechanical protection.

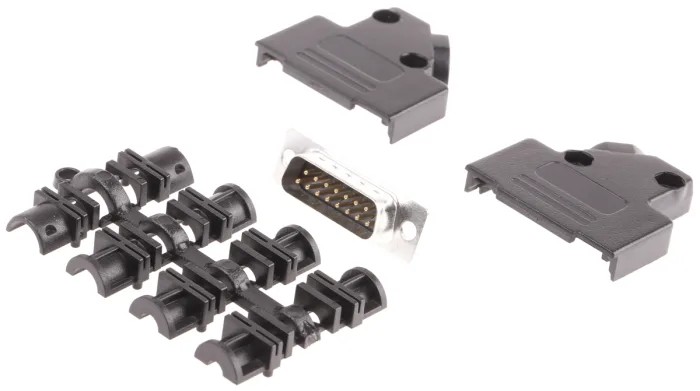

This connector operates reliably within a temperature range of -55°C to 105°C, suitable for various industrial and commercial environments. The gold-plated contacts ensure consistent electrical performance and durability over repeated mating cycles. The connector kit includes essential assembly hardware such as two backshell halves, two 4-40 thumbscrews, housing screws, and nuts.

Furthermore, the kit comes with compression inserts for cable diameters of 4, 5, 7, and 9 mm, accommodating cables with a maximum diameter of 13 mm for optimal strain relief. These features make it ideal for use in power connectors, industrial equipment, and electronic control systems requiring robust and reliable D-Sub connections.

The connector features 15 solder termination contacts arranged at a 45° angle. Housing is composed of UL94 V-0 rated ABS Polylac plastic for durability. Operating temperature range is from -55°C to 105°C suitable for diverse environments.

Gold-plated stamped and formed contact terminals ensure reliable conductivity. Includes 2 backshell halves, 2 4-40 thumbscrews, 2 housing screws, and 2 nuts for assembly. Sets with compression inserts support cable diameters up to 13 mm ensuring secure fitting.

Cable glands or clamps enhance strain relief and cable management. Designed for applications in electronic, power, and industrial connector systems. Manufactured in China, it meets corrosion resistant and mechanical robustness requirements.

This MH Connectors MHD45PPK D-Sub Connector series is widely used in electronic devices, instrumentation, communication equipment, and industrial control applications requiring robust multi-contact connectors with high reliability.
