MH Connectors 25 Way 45° D-Sub Connector Plastic Housing Solder Termination 250V MHD45PPK

MH Connectors MHD45PPK 25 Way 45° D-Sub Connector is an industrial-grade connector designed for reliable electrical performance up to 250 volts and 5 amps. The connector features a 45° angled UL94 V-0 ABS Polylac plastic housing that provides robust mechanical protection and flame retardancy.

The connector’s 25 contacts are gold plated to ensure excellent conductivity and corrosion resistance, with solder bucket terminations coated in tin for secure soldering. It operates efficiently over a wide temperature range from -55°C to 105°C, making it suitable for harsh industrial, manufacturing, electronic, and power system environments.

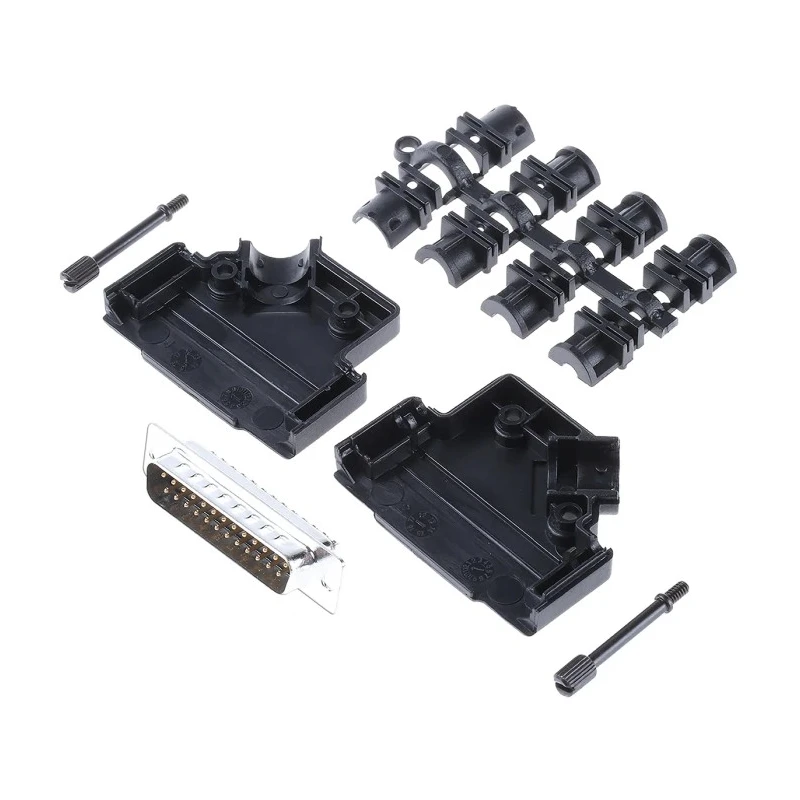

The package includes the plug or socket connector, two backshell halves, two 4-40 thumbscrews (except the 9 way variant), housing screws, nuts, and a set of compression inserts accommodating cable diameters of 4, 5, 7, and 9 mm (maximum 13 mm).

This D-Sub Connector kit is ideal for applications requiring durable, high-quality connections in electronics, power delivery, instrumentation, and control systems. High-reliability gold-plated contacts for superior signal integrity.

Robust 45° angled plastic backshell for space-saving installation. Comprehensive kit includes all mounting hardware for ease of assembly. Wide operating temperature range suited to diverse industrial uses. Compatible with various cable sizes via compression inserts.

Manufactured under the MHD45PPK series standards. Product assembled in China with quality assurances. Explore EnvMart’s extensive range of connectors and power connection products for your industrial and electronic needs.
